3
Set up the function generator according to the following table.
Function Generator Setup
Freq: 200 000 . 0 Hz
Main Function: Square wave
Amptd: 3.000 V
High Voltage: Disabled (LED Off)
Phase: 0.0 deg
DC Offset: 0.0 V
Set up the logic analyzer
1

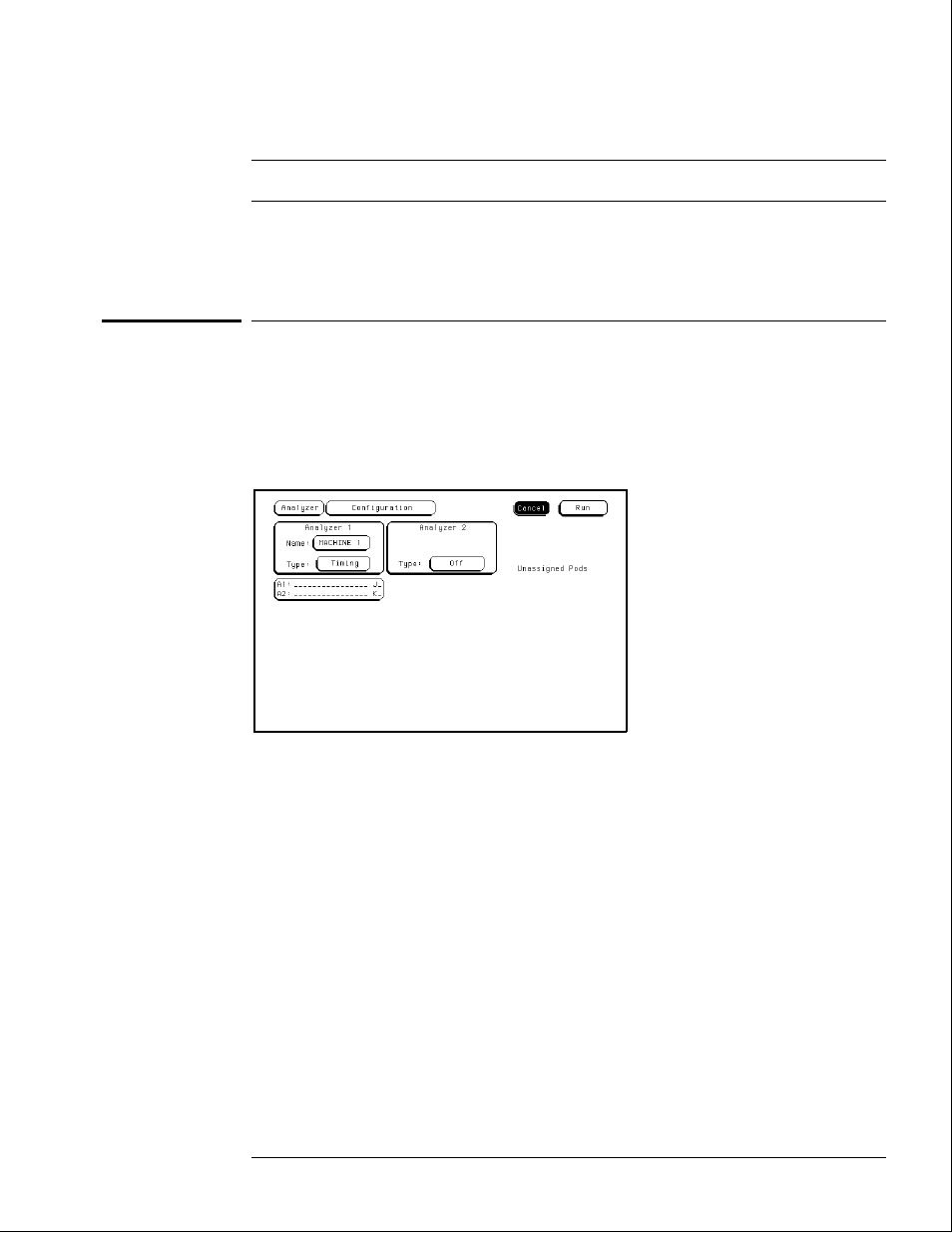

Set up the Configuration menu.
a
Press the Config key.
b
In the Configuration menu, assign Pod 1 to Machine 1. To assign Pod 1, select the
Pod 1 field, then select Machine 1.
c
In the Analyzer 1 box, select the Type field, then select Timing.
Testing Performance
To test the time interval accuracy
3–55
