2

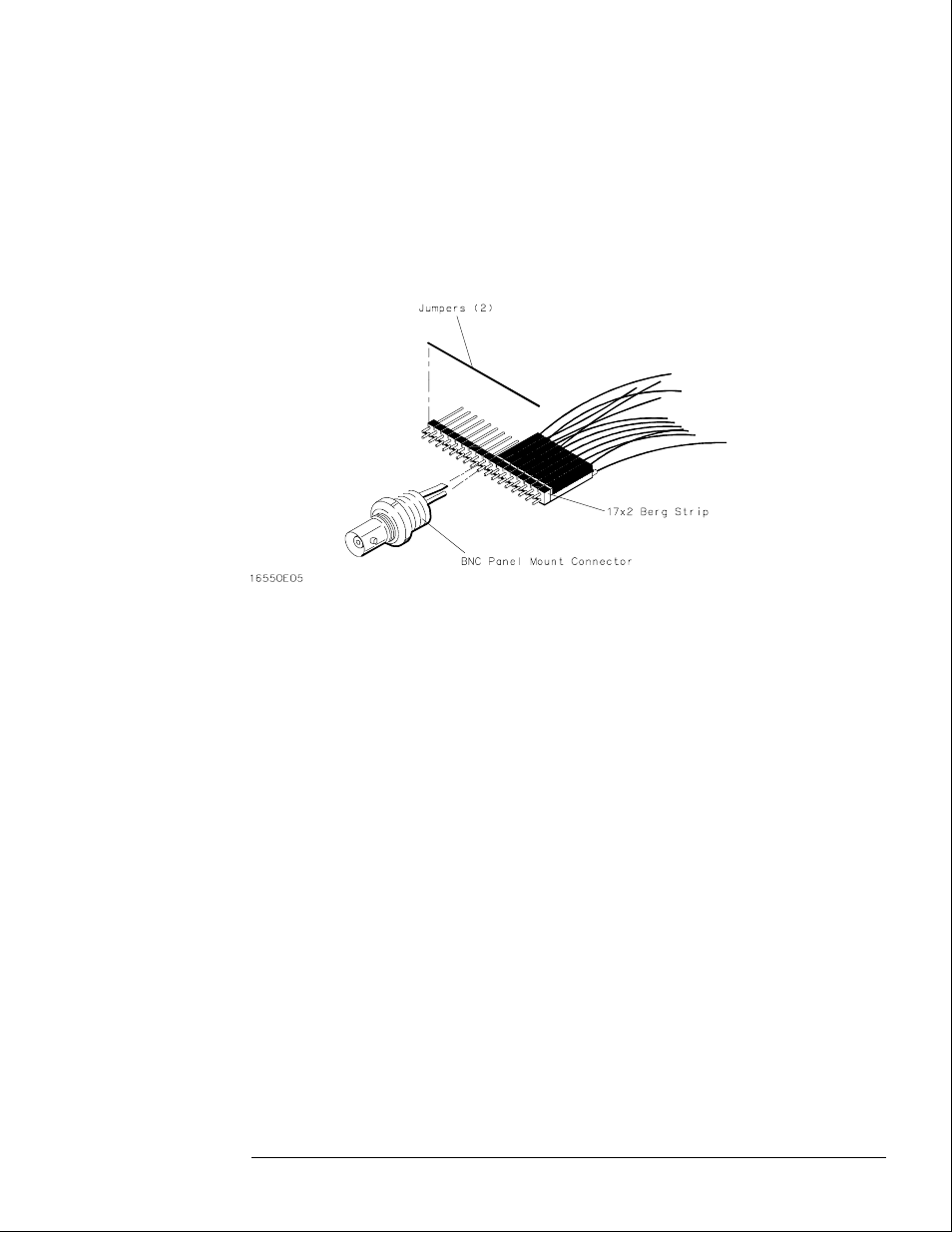

Build one test connector using a BNC connector and a 17-by-2 section of Berg strip.
a
Solder a jumper wire to all pins on one side of the Berg strip.
b
Solder a jumper wire to all pins on the other side of the Berg strip.
c
Solder the center of the BNC connector to the center pin of one row on the Berg strip.
d
Solder the ground tab of the BNC connector to the center pin of the other row on the
Berg strip.
Testing Performance
To make the test connectors
3–7
