Agilent Technologies 01664-97005 User Manual
Page 105
6

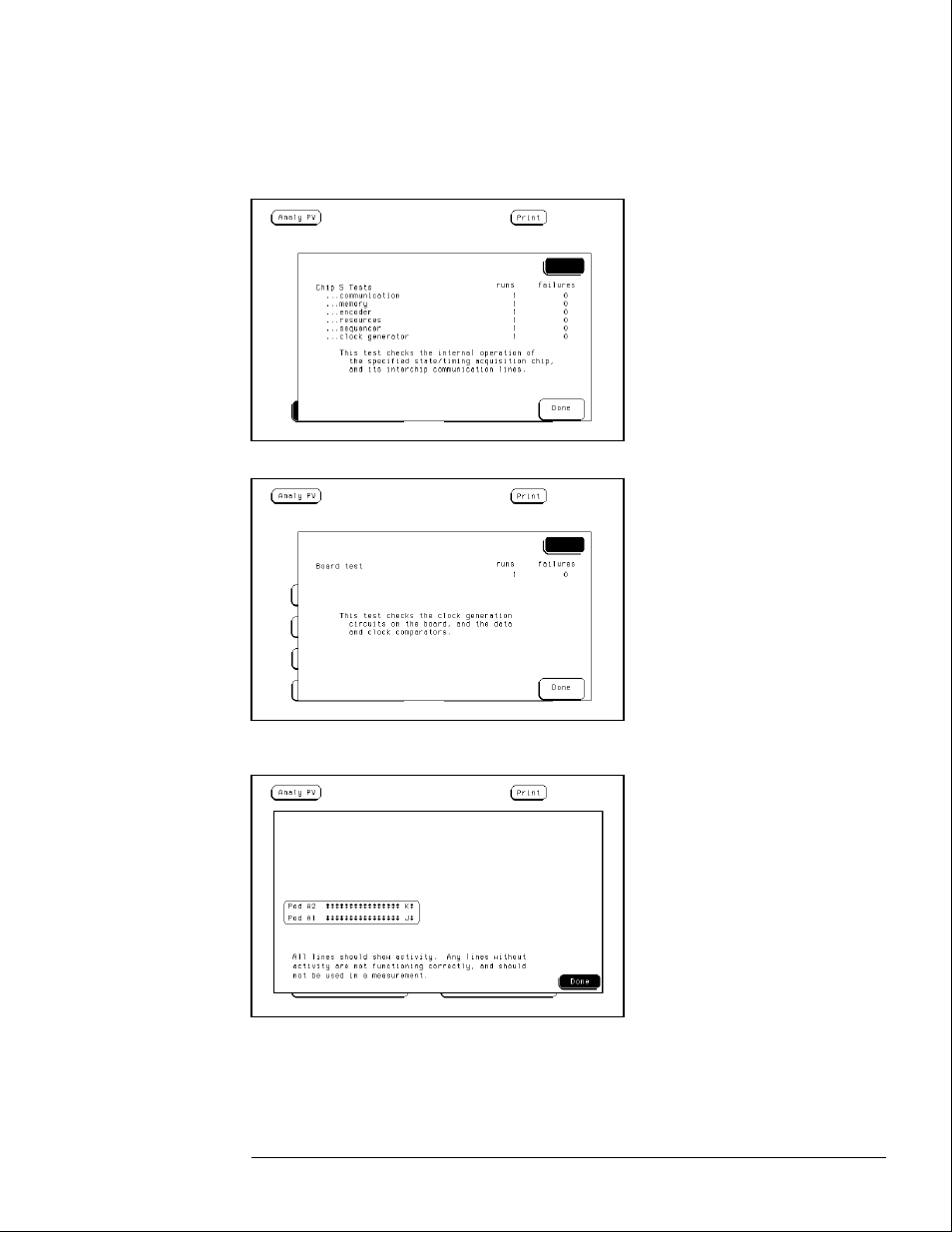

Select Run, then select Single. The test runs one time, then the screen shows the
results. When the test is finished, select Done.
To run a test continuously, select Repetitive. Select Stop to halt a Run Repetitive.
7
Select Board Tests, then select Run. When the Board Tests are finished, select Done.
8
Select Data Input Inspection. All lines should show activity. Select Done to exit the
Data Input Inspection.
9
Select Analy PV, then select Sys PV PV in the pop up menu and press the Select key.
Troubleshooting
To run the self-tests
5–17
