3 Set up the oscilloscope.
Oscilloscope Setup
Time Base Display Delta V Delta T
Time/Div: 1.00 ns/div avg V markers on T markers on
# of avg: 16 marker 1 position: Chan 1 start on: Pos Edge 1
screen: dual marker 2 position: Chan 1 stop on: Neg Edge 1
Channel
Channel 1 Channel 2
Display on on
Probe Atten 20.00 20.00
Offset −1.3 V −1.3 V
Volts/Div
400 mV 400 mV
Set up the logic analyzer

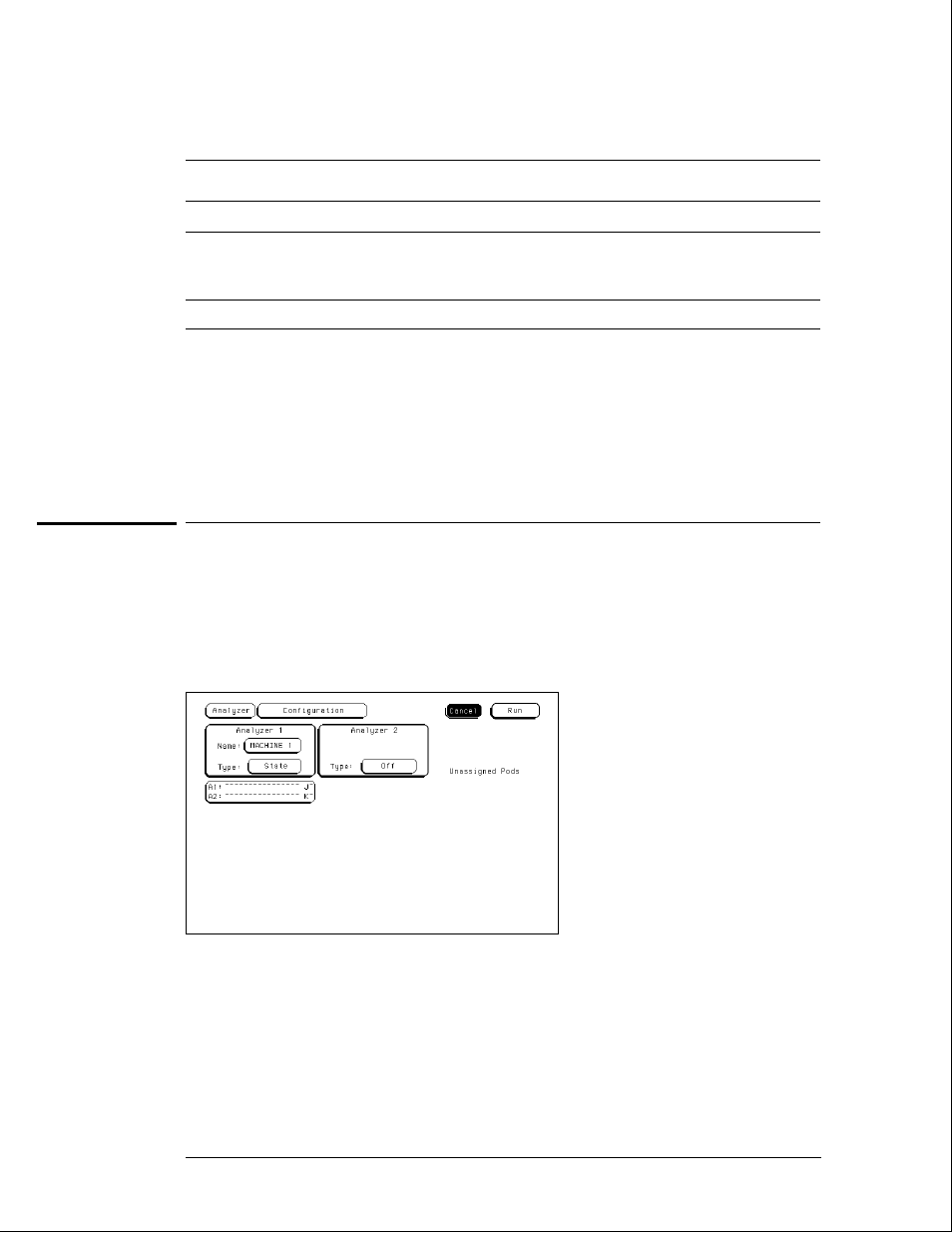

1 Set up the Configuration menu.
a Press the Config key.
b In the Configuration menu, assign all pods to Machine 1. To assign the pods, select
the pod fields, then select Machine 1 in the pop-up menu.
c Select the Type field in the Analyzer 1 box, then select State.
Testing Performance
To test the single-clock, single-edge, state acquisition
3–24
