6

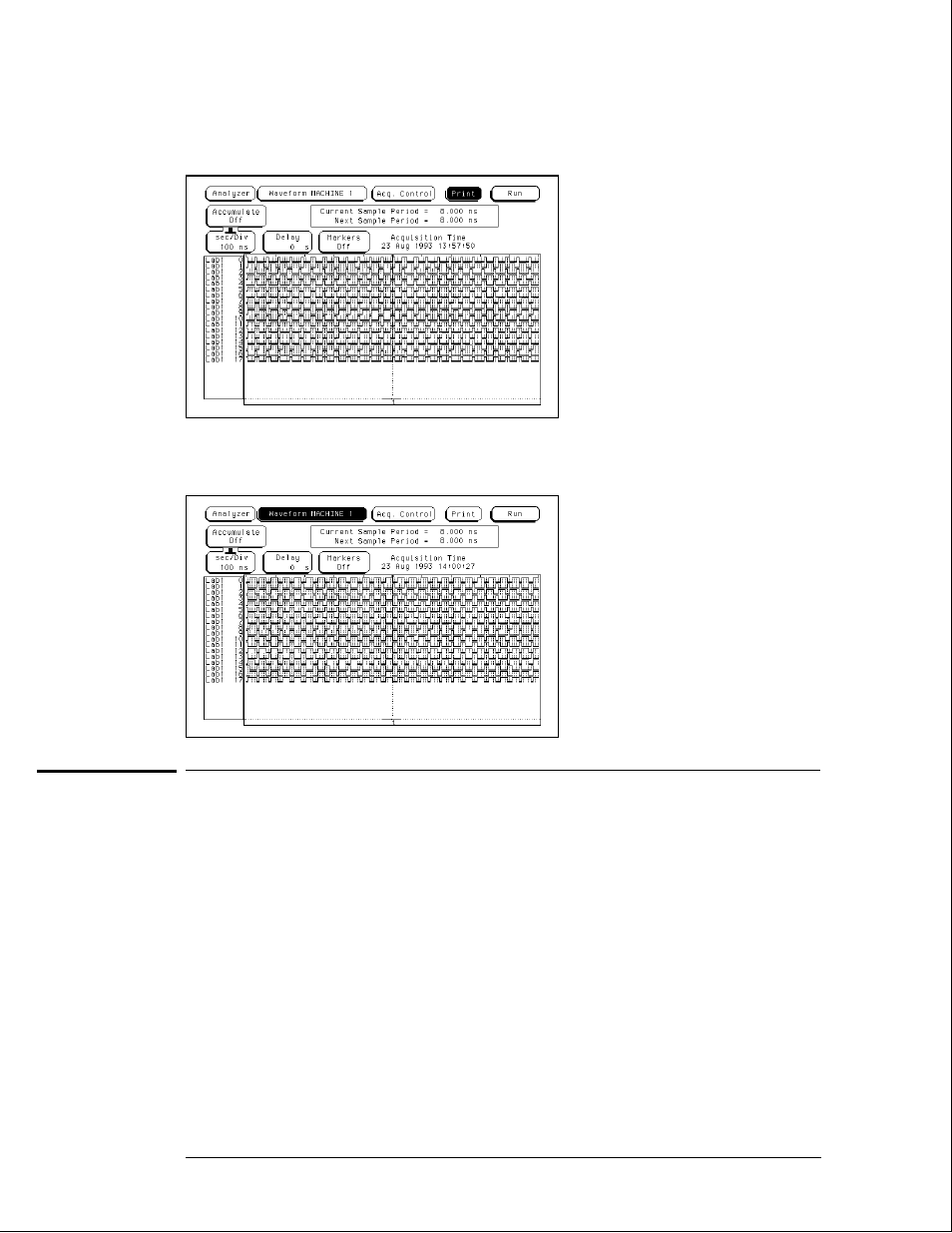

On the logic analyzer, press the Run key. The display should be similar to the figure
below.
7
On the pulse generator, enable Channel 1 and Channel 2 COMP (with the LED on).
8
On the logic analyzer, press the Run key. The display should be similar to the figure
below. Record Pass or Fail in the performance test record.
Test the next channels
•
Return to "Connect the logic analyzer" on page 3–18 and connect and test the next
combination of data and clock channels until all pods are tested.
To access pod 2 in the Format menu, select pod 1 field, then select pod 2 in the pop-up menu.
Testing Performance
To test the glitch capture
3–22
