2

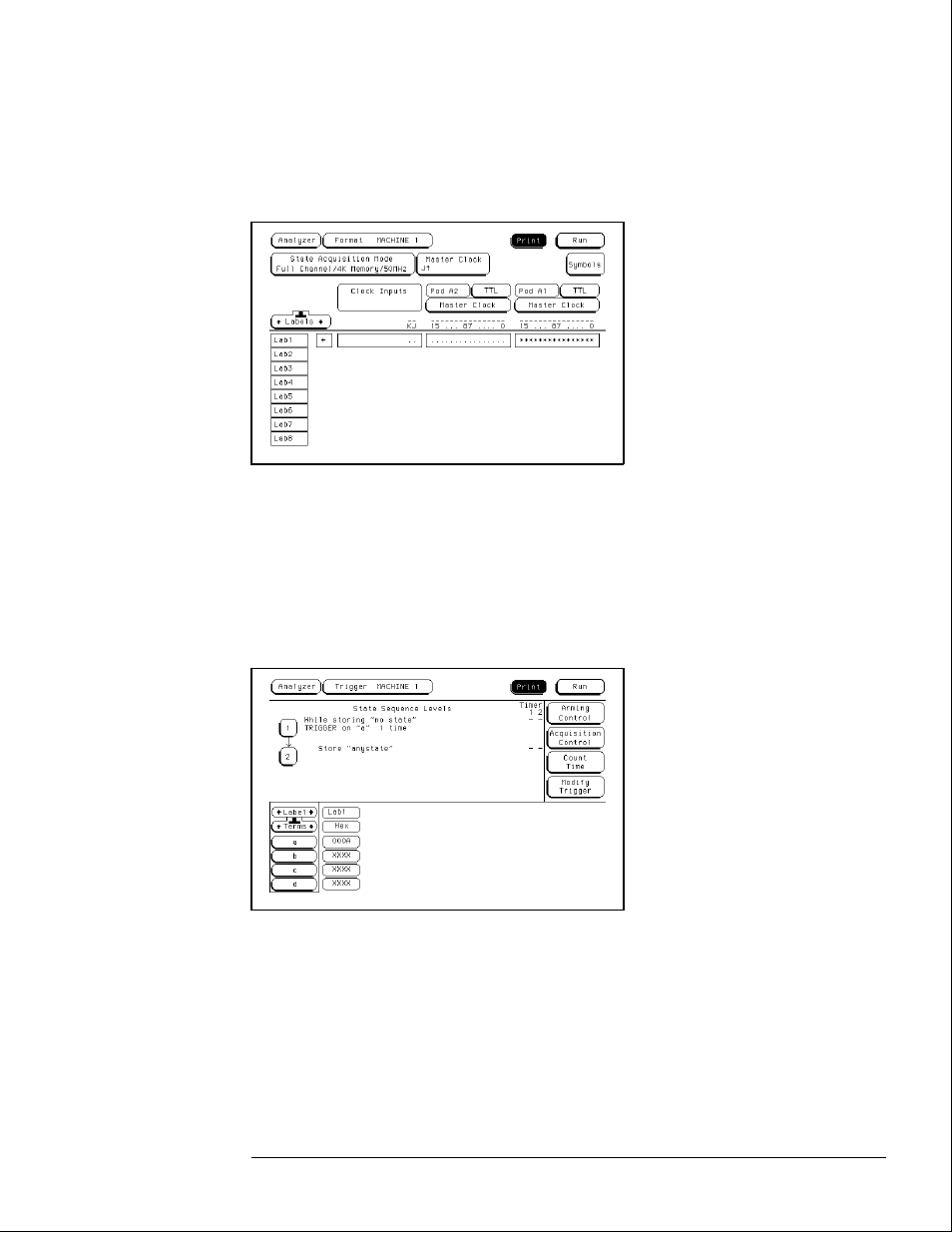

Set up the Format menu.
a
Press the Format key. Select State Acquisition Mode, then select Full Channel/4K
Memory/50MHz.
b
Select the field to the right of each pod, then select ECL in the pop-up menu.
3
Set up the Trigger menu.
a
Press the Trigger key. Select Modify Trigger, then Clear Trigger, then select All in the
pop-up menus.
b
Select Count Off. Press Select again, then select Time in the pop-up menu. Select
Done to exit the menu.
c
Select the field labeled 1 under the State Sequence Levels. Select the field labeled
"anystate," then select "no state." Select Done to exit the State Sequence Levels menu.
d
Select the field next to "a," under the label Lab1. Type "000A", then press the Select
key.
Testing Performance
To test the single-clock, single-edge, state acquisition
