2

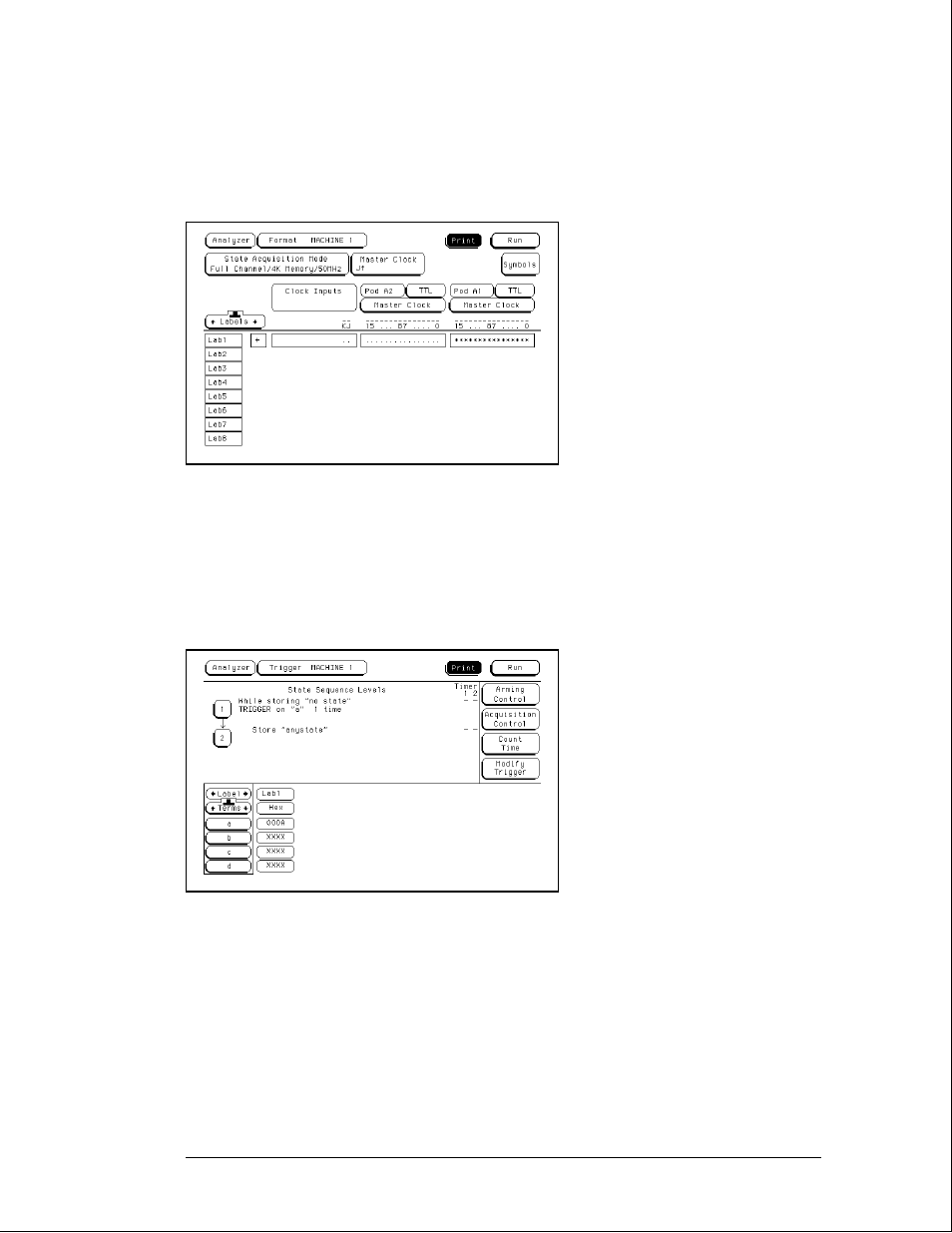

Set up the Format menu.
a
Press the Format key. Select State Acquisition Mode, then select Full Channel/4K
Memory/50MHz.
b
Select the field to the right of each Pod field, then select ECL.
3
Set up the Trigger menu.
a
Press the Trigger key. Select Clear Trigger, then select All.
b
Select the Count Off field, then select Time in the pop-up menu. Select Done to exit
the menu.
c
Select the field labeled 1 under the State Sequence Levels. Select the field labeled
"anystate", then select "no state." Select Done to exit the State Sequence Levels menu.
d
Select the field next to the pattern recognizer "a," under the label Lab1. Type "000A" ,
then press Select.
Testing Performance
To test the multiple-clock, multiple-edge, state acquisition
3–36
