Sioux Chief PEX Bend Elbow User Manual
Plastic bend support, Instruction sheet
Plastic Bend Support
Instruction Sheet
1
4
2
3

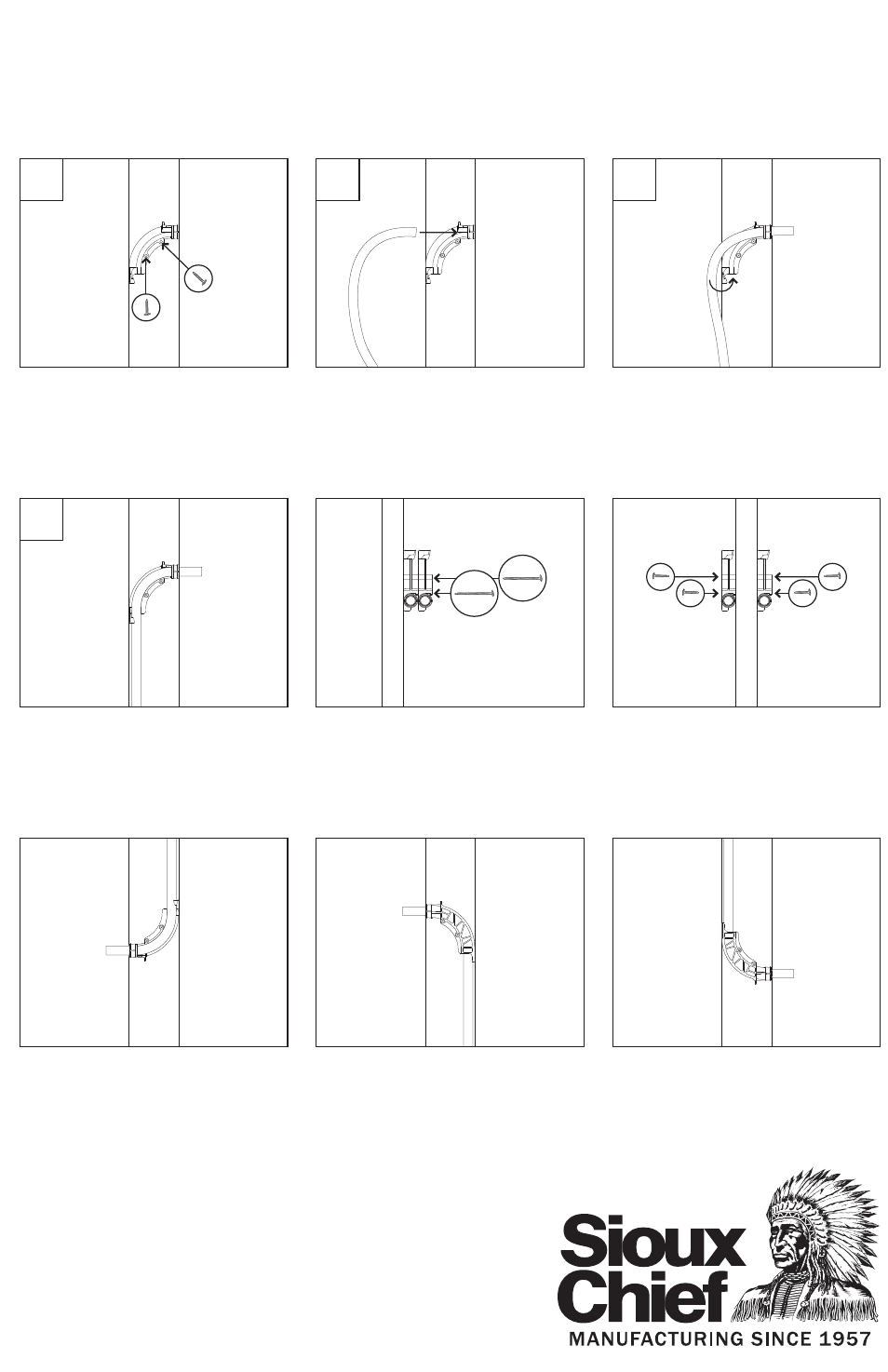

Insert end of tube into top ‘nose’
of plastic bend support.
Holding opposite end of tube,
guide tube through radius and
around small hook on ‘tail’ end
of the bend support.
Plastic elbow may be installed on either side of stud, with fl exible supply tube from above or below.
Using nails or screws, install
plastic elbow directly to stud.
Using longer screws, two plastic
elbows may be stacked against
one side of the stud.
Installation complete.
Two plastic elbows may be
installed to straddle a stud for
hot and cold supply.
1-800-821-3944 • www.siouxchief.com
#IS-525-P2
©2010 SIOUX CHIEF MFG.
