Sioux Chief 616 Series Shower Arm Adapter Shower WallNut User Manual

Shower arm adapter, 02 a, 616 series shower wallnut

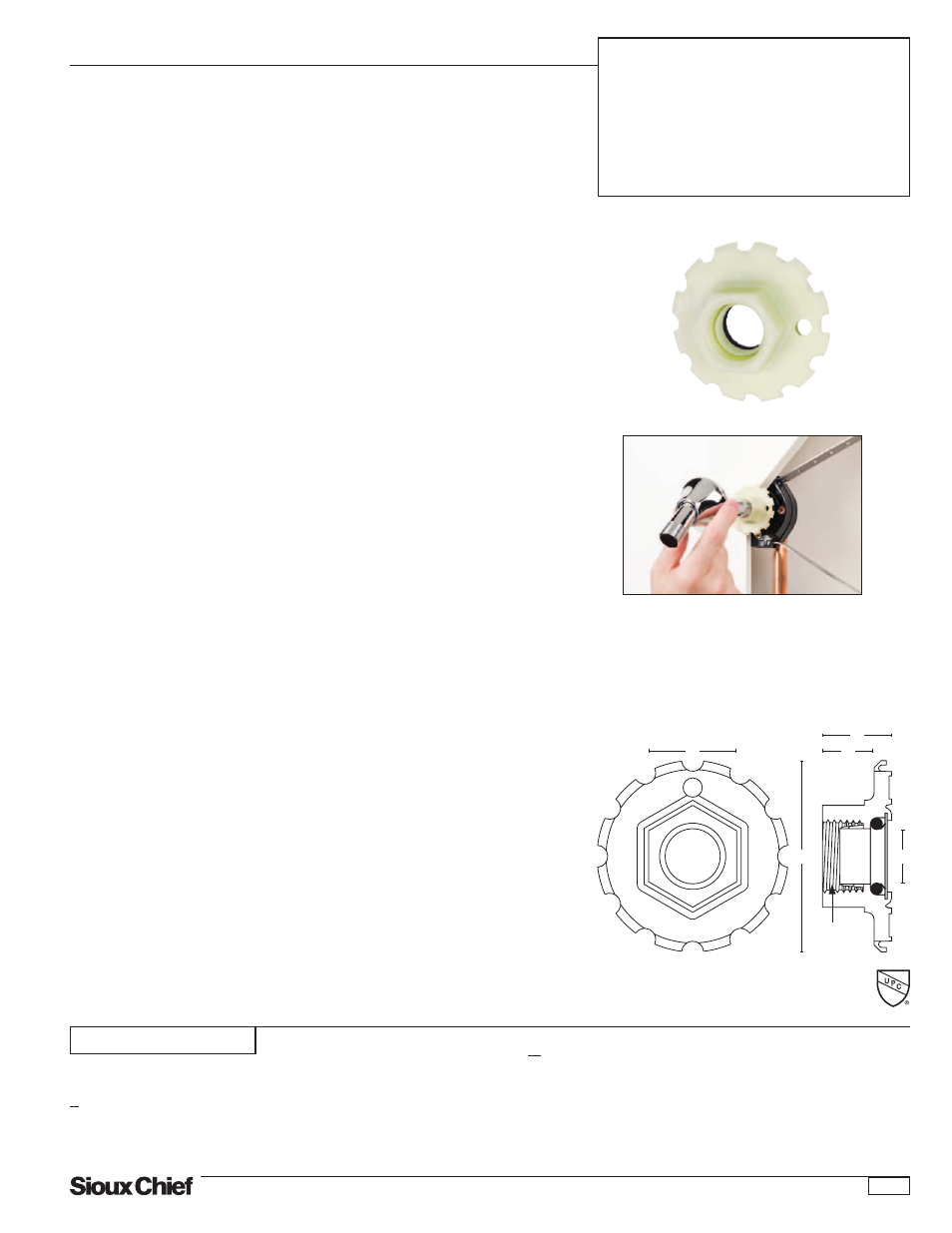

background image

SPECIFICATION

Sioux Chief’s Shower Arm Adapter WallNut shall be installed at shower riser.

Riser shall be ½" nominal Type L Sioux Chief stub out ell that is supported

by Sioux Chief Strong Arm Bracket with WallNut Lock Block tube clamping

device. No substitutions otherwise Limited Lifetime Warranty is void.

Shower Arm Adapter shall be UPC Listed.

Shower WallNut System allows stub out connection outside the finished

wall eliminating hidden leaks at the riser which promote mold growth.

Use with brass shower arms only. Do not use thread sealant or Teflon

tape on WallNut end of shower arm.

MATERIALS

WallNut shower arm adapter: 40% glass-filled nylon

lock ring: 301 stainless steel

o ring: Buna-N

escutcheon: plated steel (see options below)

INSTALLATION

Brace copper stub out ell using Strong Arm Bracket with Shower WallNut

Lock Block at rough in stage. After finished wall has been installed, sand

the entire stub out surface back to the finished wall. Cut off the stub out

leaving exactly 1½" stubbed out from the wall. Push Shower wallnut over

stub out and against wall. Insert nose of slip-lock pliers into stub out

opening and hold tube firmly. Swing shower arm tool or second pair of slip-

lock pliers levering off first pair to cinch wallnut adapter firmly against the

finished wall. Do NOT use thread sealant or Teflon tape on Shower WallNut

end of shower arm. Use Brass Shower Arms only. Hold hex then thread

shower arm completely and tightly into FIP threads. Using pliers on hex of

wallnut adapter rotate shower arm to final 6-o'clock position. Firmly push

deep escutcheon onto Shower WallNut until it snaps and locks into plate.

IMPORTANT WARRANTY NOTE

Sioux Chief’s Limited Lifetime Warranty is only applicable when Sioux Chief

components (a) Stub Out Ell (b) Strong Arm Bracket with WallNut Lock

Block and (c) Shower WallNut Shower Arm Adapter are used and installed

according to manufacturer’s installation guidelines. Substitute components

voids warranty.

SAFE WORKING TEMPERATURE

140°F

DIMENSIONS

A: diameter

2.175"

B: height

0.775"

C: height of nose

0.589"

D: I.D. of ferrule

0.623"

E: wrench flats

1"

F: FIP threads

½"

616 series

Shower WallNut

ShOWER ARM ADAPTER

C

E

B

A

F

D

616-02 A

A

ESCUTCHEON FINISH

□ C chrome

□ P polished brass

□ W white enamel

□ A ESCUTCHEON FINISH (cont.)

□ RB rubbed bronze

□ PN pearl nickel

□ SN satin nickel

e.g. 616-02RB = Shower WallNut, escutcheon with rubbed bronze finish

Create Item Number

Sioux Chief Manufacturing Company • tel: 1-800-821-3944 • www.siouxchief.com • fax: 1-800-758-5950

Item # Submitted �����������������������������������

Job Name �����������������������������������������

Location ������������������������������������������

Engineer ������������������������������������������

Contractor ����������������������������������������

PO# �������������������� TAG ���������������������

5-10
