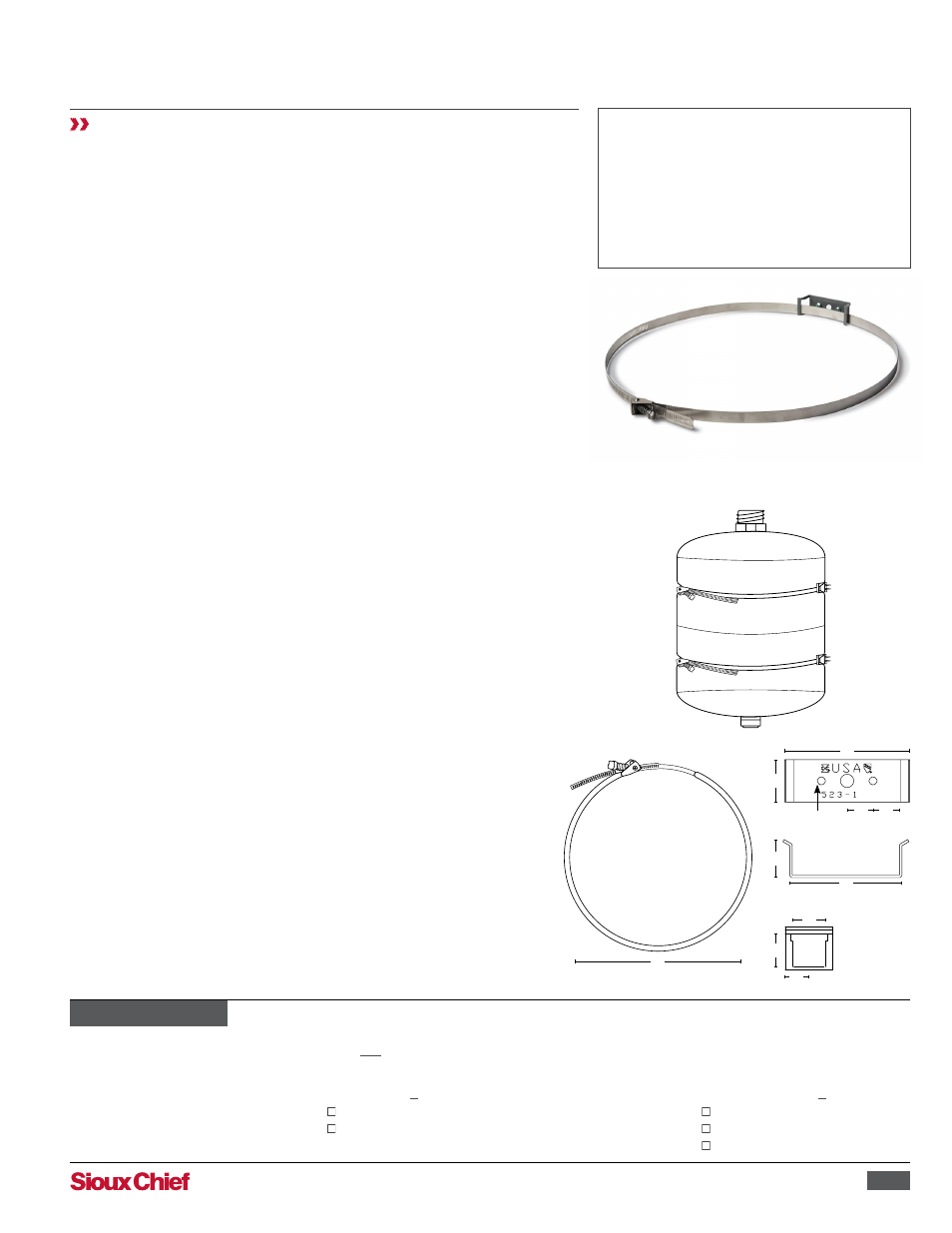

EXPANSION TANK WALL SUPPORT
598-021 SERIES
598-021AB
e.g. 598-0210: expansion tank kit with stainless steel band, maximum 10" diameter, bulk
SPECIFICATION
Sioux Chief 598-021 Series thermal expansion tank support kit shall be used
where necessary to take the load and weight off pipes, fittings or connections to
tube where thermal expansion tanks are installed in closets or near finished or
unfinished walls. The expansion tank kit includes Sioux Chief's SaddleUp™ bracket
with two #6 x 2" screws and stainless steel bands. Bands shall fit a range of
thermal expansion tanks up to 5-gallons. Snap-lock bands shall be stainless steel
and the SaddleUp™ bracket shall be galvanized. The mounting screws shall be zinc-
plated for corrosion resistance.
INSTALLATION
Secure SaddleUp™ bracket with two #6 x 2" screws to wall making sure screws
penetrate through a wood or metal stud. Thread end of band through bracket and
around body the thermal expansion tank. Secure band tightly around tank. Either
one or two brackets with bands can be installed. When installing one band, make
sure band is centered on the tank. Band may be trimmed if desired.
MATERIALS
SaddleUp™ Bracket: 16 gauge galvanized steel
Mounting Screws: #6 x 2" Phillips, self-drilling, zinc plated
Band: Screw 5/16" hex head; 410 stainless
Housing 201/301 stainless steel
Band 1/2" width; 201/301 stainless steel
DIMENSIONS
A: overall length 2.95" min.
B: overall height 0.875"
C: base length 2.625"
D: mounting hole diameter 0.188"
E: side to hole center
0.5"
F: hole spacing 0.609" on center
G: end to hole center 0.704"
H: overall width 1"
I: slot width 0.700"
J: slot height 0.687"
K: band ½" x .025"
(10" or 13" max. diameter)
598-0213
D
A
F G
H
C
B
I
J
K
Sioux Chief Manufacturing Company | P: 1.800.821.3944 | F: 1.800.758.5950 | www.siouxchief.com 9-14
ITEM # SUBMITTED �����������������������������������������
JOB NAME �����������������������������������������������
LOCATION �����������������������������������������������
ENGINEER �����������������������������������������������
CONTRACTOR ��������������������������������������������
PO# ������������������������ TAG ������������������������
_ = bulk packaging (leave blank)
PK1 = single band with hardware
PK2 = double band with hardware
0 = stainless steel snap-lock band, maximum 10" diameter
3 = stainless steel snap-lock band, maximum 13" diameter
PACKAGE STYLE B BAND SIZE A
