See Section ALE-25 for Accessories
Littleton, CO USA Phone 303-794-2611 www.norgren.com

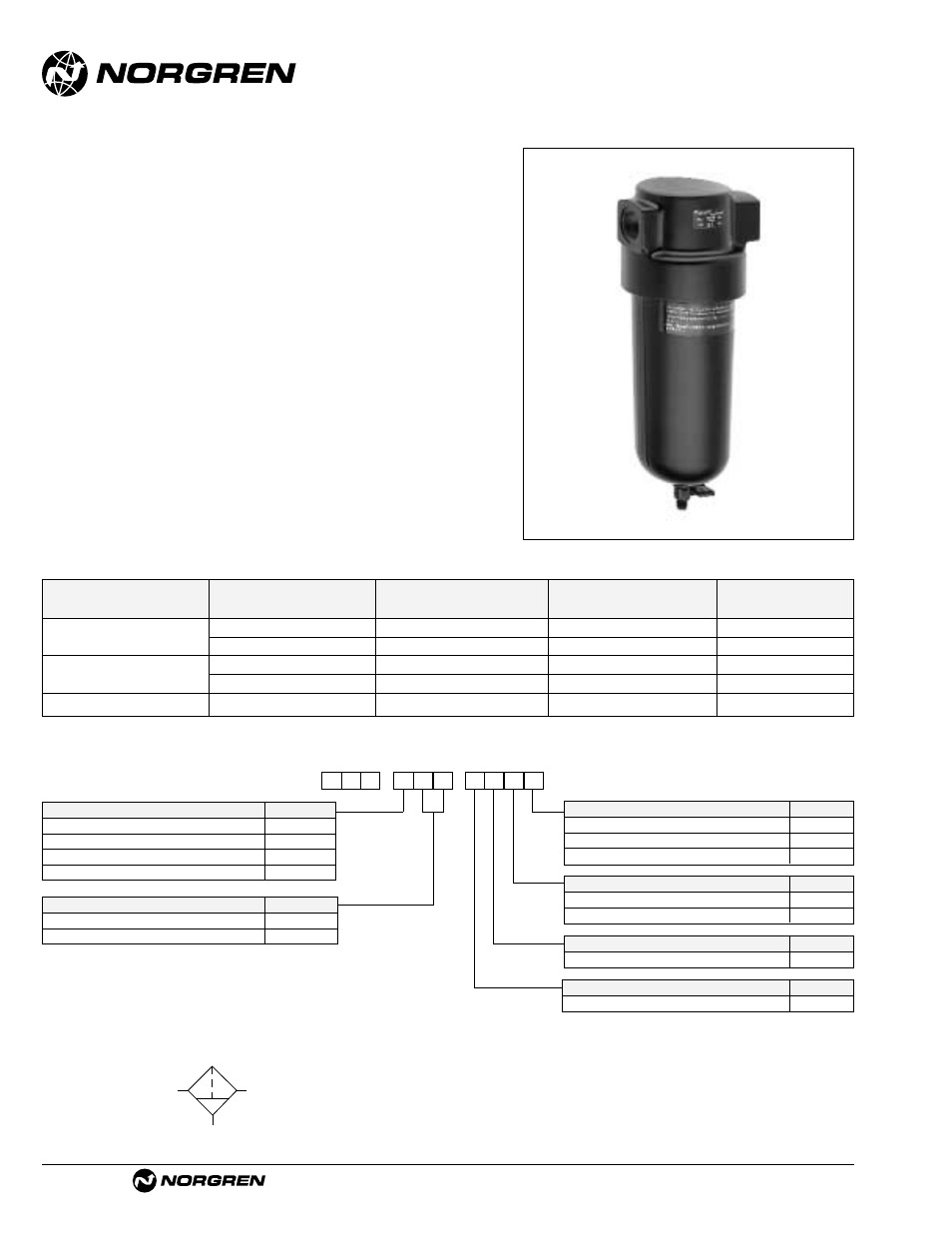

F46 Oil Vapor Removal Filter
● Adsorbing type activated-carbon filter element
removes oil vapors
● Long service life of filter element. Minimum life of
1000 hours when an oil removal filter is installed
upstream and filtration temperature is in the range of
70° to 80°F (21° to 26°C).
● Use in critical industrial applications that require
compressed air virtually free of oil vapors
● Typical applications include precision pneumatic
instrumentation, temperature control, paper
separation, film processing, and production of
electronic equipment
● Screw-on bowl reduces maintenance time
● Can be disassembled without the use of tools or
removal from the air line
17 Series Oil Vapor Removal (Adsorbing)
Filter 3/8", 1/2", and 3/4" Port Sizes
ALE-3-10
Alternative Models
- ★ ★ ★ ★ ★ ★ - 4 ★ F 6
Threads Substitute
PTF A
ISO Rc taper B
ISO G parallel G
Drain Substitute
Manual M
Port Size Substitute
3/8" 3
1/2" 4
3/4" 6
1" 8
Element Substitute
Adsorbing A
Element Substitute
Compact 23 **
Standard 24 **
Bowl Substitute
Metal, Compact G **
Metal, Standard M **
** A 23 requires a G in the 9th position of the model number, and a 24 requires an M.
Ordering Information. Models listed include manual drain, metal bowl, and PTF threads.
Flow*
Type Port Size Model Numbers scfm (dm 3 /s) Weight lbs (kg)
F46 Compact bowl 3/8" F46-323-MAGA 60 (28) 3.62 (1.64)
1/2" F46-423-MAGA 60 (28) 3.53 (1.60)
F46 Standard bowl 1/2" F46-424-MAMA 60 (28) 4.01 (1.82)
3/4" F46-624-MAMA 60 (28) 3.92 (1.78)
F46 Standard bowl 1" F46-827-MAMA 100 (47) 3.73 (1.69)
* Maximum flow at 90 psig (6.3 bar) inlet pressure to maintain stated oil removal performance.
ISO Symbols
Manual Drain
