F64 B/L Coalescing/Vapor Removal Filters
Littleton, CO USA Phone 303-794-2611 www.norgren.com ALE-3-7

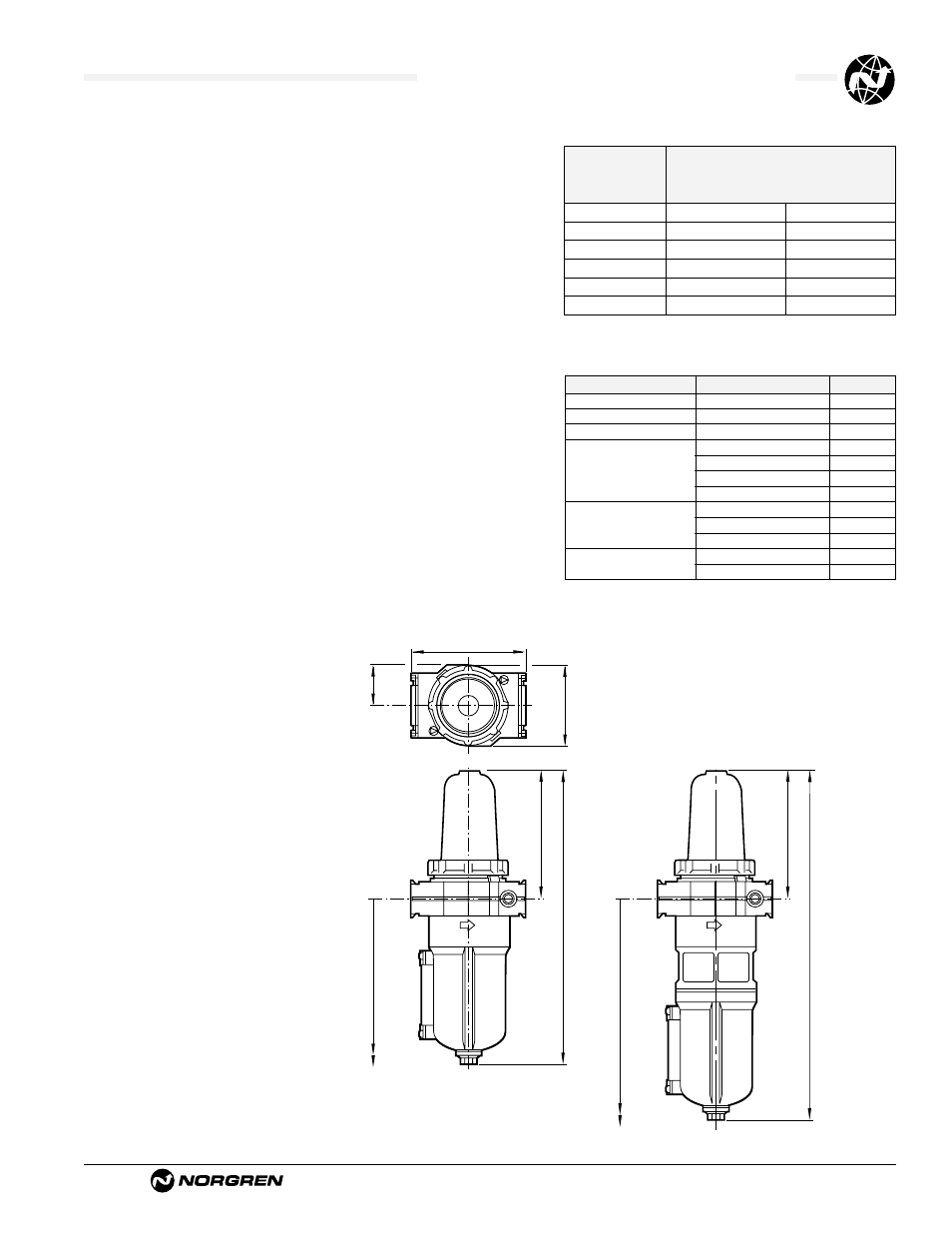

All Dimensions in Inches (mm)
Technical Data
Fluid: Compressed air
Maximum pressure:
Guarded transparent bowl: 150 psig (10 bar)
Metal bowl: 250 psig (17 bar)
Operating temperature*:
Guarded transparent bowl: 0° to 125°F (-20° to 50°C)
Metal bowl: 0° to 150°F (-20° to 65°C)
* Air supply must be dry enough to avoid ice formation at temperatures below 35°F (2°C).
Partical removal: 0.01 µm.
Air quality: Within ISO 8573-1, Class 1.7.1**
** See ALE-1-G for specification details.
Maximum remaining oil content in outlet air:
0.003 ppm at 70°C (21°C) with an inlet concentration of 17 ppm
Maximum flow at 90 psig (6.3 bar) inlet pressure†:
15 scfm (7 dm 3 /s) F64B, 23 scfm (11 dm 3 /s) F64L
Automatic drain connection: 1/8" pipe thread
Automatic drain operating conditions (float operated)
Bowl pressure required to close drain: Greater than 5 psig (0.3 bar)
Bowl pressure required to open drain: Less than 3 psig (0.2 bar)
Minimum air flow required to close drain: 2 scfm (1 dm
3 /s)
Manual operation: Depress pin inside drain outlet to drain bowl
For F64G pre-filter technical data please refer to separate sheet.
Materials
Body: Zinc
Yoke: Zinc
Metal bowl: Zinc
Optional transparent bowl: Polycarbonate
Integral pre-filter element: Sintered bronze
Main filter element and activated carbon pack: Composite materials
Elastomers: Synthetic rubber
Standard sight glass for metal bowl: Pyrex
Typical Performance Characteristics
Inlet Pressure Maximum Flow†
F64B F64L
psig (bar) scfm (dm 3 /s) scfm dm 3 /s
15 (1) 6 (2.8) 9.3 (4.4)
45 (3) 10 (4.8) 16 (7.6)
70 (5) 13 (6.2) 20.8 (9.8)
90 (6.3) 15 (7.0) 23.3 (11.0)
100 (7) 15.5 (7.3) 24.4 (11.5)
130 (9) 17.8 (8.4) 28 (13.2)
† Maximum flow to maintain stated oil removal performance.
* Automatic drain shown.
Add 0.39" (10 mm) for manual drain
†† Minimum clearance required to remove bowl.
** 6.18" (157 mm) for models with 3/4" ports
4.13 (105)**
1.46 (37)
2.91 (74)
10.63 (270)*
11.26 (286)
††
4.84 (123) 4.84 (123)
12.60 (320)*
13.23 (336)
††
F64B (automatic drain)
F64L (automatic drain)
Service Kits
Item Type Part Number
Service kit F64B/L 4380-201
Service kit (pre-filter) F64G 4380-200
Element F64G (pre-filter) 5 µm 4338-01
Coalescing (F64B) 5350-99
Elements (F64B/L)
Coalescing (F64L) 5350-98
Integral pre-filter (F64B/L) 3698-02
Activated carbon (F64B/L) 5568-01
Prismatic (F64G)
4380-040
Replacement sight glass Pyrex (F64G option) 4380-041
Pyrex (F64B/L) 2273-97
Replacement drains
Automatic 3000-04
Manual 684-84
Service kit includes port seals, bowl o-ring and drain gasket.
