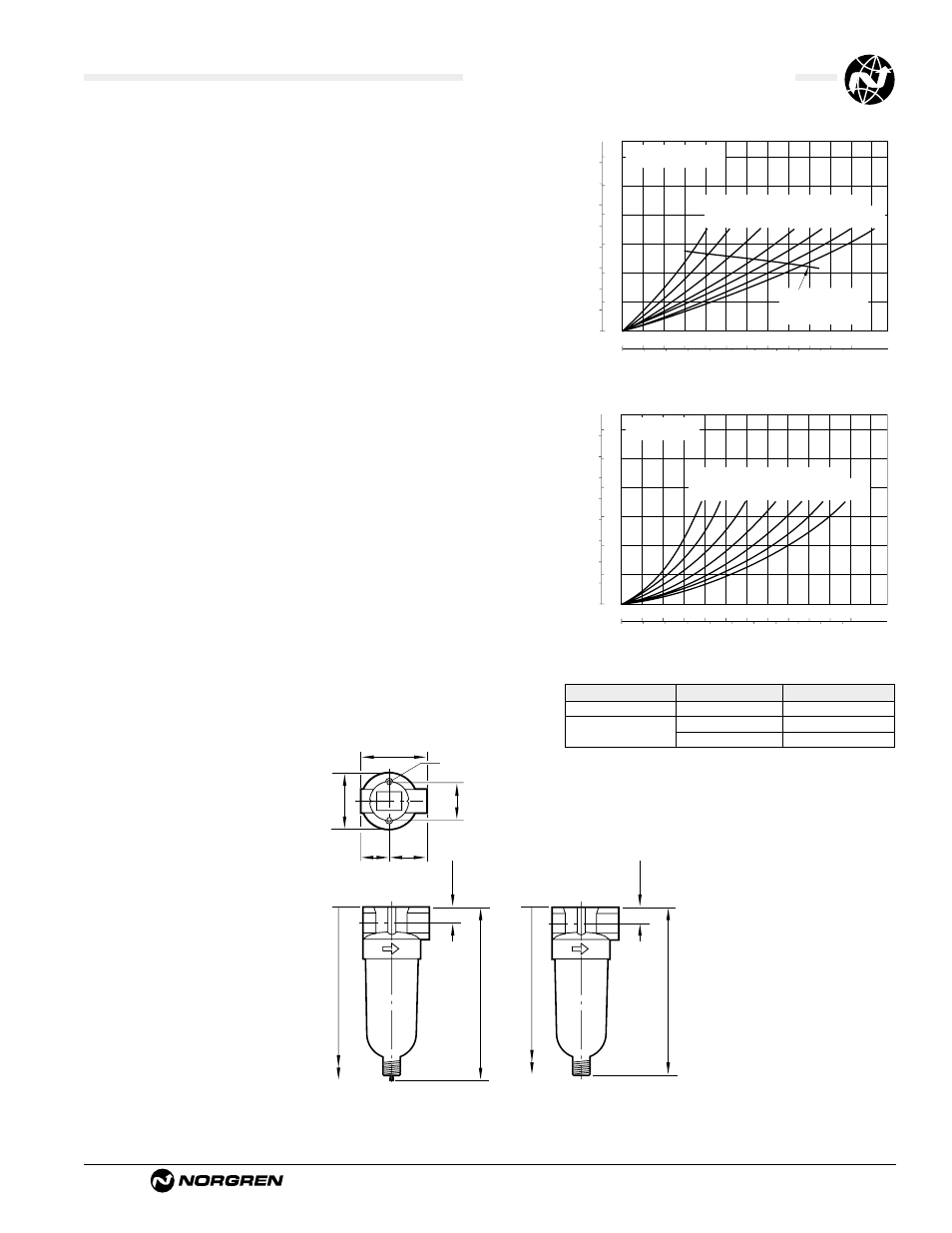

F39 Oil Removal (Coalescing) Filters
Littleton, CO USA Phone 303-794-2611 www.norgren.com ALE-2-3
Technical Data
Fluid: Compressed air
Maximum pressure:
Transparent bowl: 150 psig (10 bar)
Metal bowl: 250 psig (17 bar)
Operating temperature:*
Transparent bowl: -30° to 125°F (-34° to 50°C)
Metal bowl: -30° to 150°F (-34° to 65°C)
* Air supply must be dry enough to avoid ice formation at temperatures below
2°C (35°F)
Particle removal: Down to 0.01 µm
Air quality: Within ISO 8573-1, Class 1 (particulates) and Class 2 (oil content)
Maximum remaining oil content of air leaving the filter: 0.01ppm at 70°F (21°C)
with an inlet oil concentration of 17 ppm.
Maximum flow with 90 psig (6.3 bar) inlet pressure†:
1/8 ports, 6.0 scfm (2.8 dm 3 /s)
1/4 ports, 6.4 scfm (3 dm 3 /s)
† Maximum flow to maintain stated oil removal performance.
Nominal bowl size: 1 fluid ounce (31 ml)
Drain connection: 1/8" pipe thread
Automatic drain operation: Spitter type drain operates momentarily when a rapid
change in air flow occurs or when the supply pressure is reduced.
Materials:
Body: Zinc
Bowl:
Transparent: Polycarbonate
Metal: Zinc
Element: Synthetic fiber and polyurethane foam
Elastomers: Neoprene & nitrile
0.157 (4) Dia **
0.5 (13) Deep **
Automatic Drain Manual Drain
1.45 (37)
0.91 (23)
0.73
(19)
0.91
(23)
6.07 (154) †
0.3
8 (10)
4.10 (104)
6.22 (158)
†
0.38 (10)
4.25 (108)
1.63 (42)
** Mounting holes
† Minimum clearance to remove bowl
Service Kits
Item Type Part number
Service kit All models 4141-10
Replacement drains
Manual 773-03
Automatic 3654-02
Service kit includes element, element o-ring, and bowl o-ring.
FLOW CHARACTERISTICS
0 1 2 3 4 5 dm 3 /s
AIR FLOW
0 2 4 6 8 10 scfm
0.8
0.6
0.4
0.2
0
PRESSURE DROP
bar d
10
8
6
4
2
0
psid PORT SIZE: 1/4"
ELEMENT: SATURATED
INLET PRESSURE: psig (bar)
36
(2.5)
23
(1.6)
91
(6.3)
58
(4.0)
150
(10)
116
(8)
180
(12)
Maximum flow to
maintain stated oil
removal performance
FLOW CHARACTERISTICS
0 2 4 6 8 10 dm 3 /s
AIR FLOW
0 4 8 12 16 20 scfm
0.8
0.6
0.4
0.2
0
PRESSURE DROP
bar d
10
8
6
4
2
0
psid
PORT SIZE: 1/4"
ELEMENT: DRY
INLET PRESSURE: psig (bar)
36
(2.5)
23
(1.6)
91
(6.3)
58
(4.0)
150
(10)
116
(8)
180
(12)
Typical Performance Characteristics
All Dimensions in Inches (mm)
