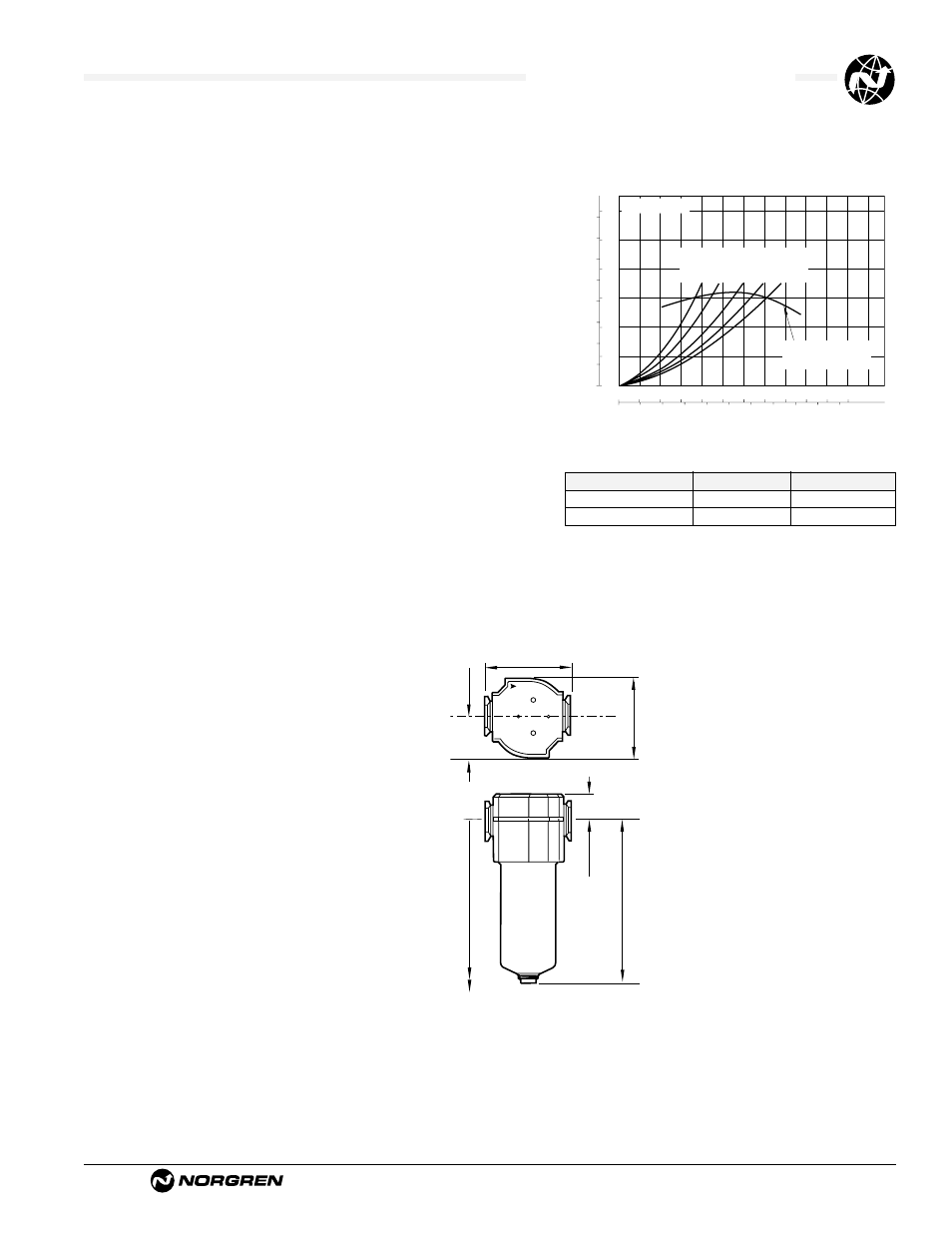

F74V Oil Vapor Removal Filter
Littleton, CO USA Phone 303-794-2611 www.norgren.com ALE-3-5
All Dimensions in Inches (mm)
Technical Data
Fluid: Compressed air
Maximum pressure:
Transparent bowl: 150 psig (10 bar)
Metal bowl: 250 psig (17 bar)
Operating temperature*:
Transparent bowl: 0° to 125°F (-20° to 50°C)
Metal bowl: 0° to 150°F (-20° to 65°C)
* Air supply must be dry enough to avoid ice formation at temperatures below 35 ° F (2 ° C)
Air quality: Within ISO 8573-1, Class 1 **(oil content) when installed downstream of
an oil removal filter
** See ALE-1-G for specification details.
Maximum remaining oil content in outlet air: 0.003 ppm at 70°F (20°C)
Maximum flow at 90 psig (6.3 bar) inlet pressure to maintain stated oil removal
performance: 27 scfm (13 dm 3 /s)
Nominal bowl size: 7 fluid ounce (0.2 liter)
Required prefilter: Oil removal filter with equivalent pipe size and flow capacity
equal to or greater than the vapour removal filter.
Materials
Body: Aluminum
Bowl:
Transparent: Polycarbonate with steel bowl guard
Metal: Aluminum
Element: Activated carbon and aluminum
Elastomers: Neoprene and Nitrile
Typical Performance Characteristics
0 5 10 15 20 25 dm 3 /s
AIR FLOW
0 10 20 30 40 50 scfm
PRESSURE DROP
0.6
0.4
0.2
0
bar d
10
8
6
4
2
0
psid
PORT SIZE: 1/2"
36
(2.5)
90
(6.3)
58
(4.0)
150
(10.0)
116
(8.0)
INLET PRESSURE: psig (bar g)
FLOW CHARACTERISTICS
Maximum flow to
maintain stated oil
removal performance
2.89 (74)
3.15 (80)
1.45 (37)
6.30 (160)
1.00 (25)
9.13 (232)
†
Service kit includes element seal and bowl seal.
Service Kits
Item Type Part Number
Service kit Seal and Gasket 4380-750
Replacement element Adsorbing 4341-01
† Minimum clearance required to remove bowl.
