Littleton, CO USA Phone 303-794-2611 www.norgren.com
F74G
● Excelon design allows in-line or modular installation
● Quick release bayonet bowl
● Highly visible, prismatic liquid level indicator lens
● Optional mechanical service indicator turns from
green to red when the filter element needs to be
replaced
● Optional electrical service indicator provides
electrical output when the filter element needs to be
replaced
● Modular installations with Excelon 72, 73, and 74
series can be made to suit particular applications

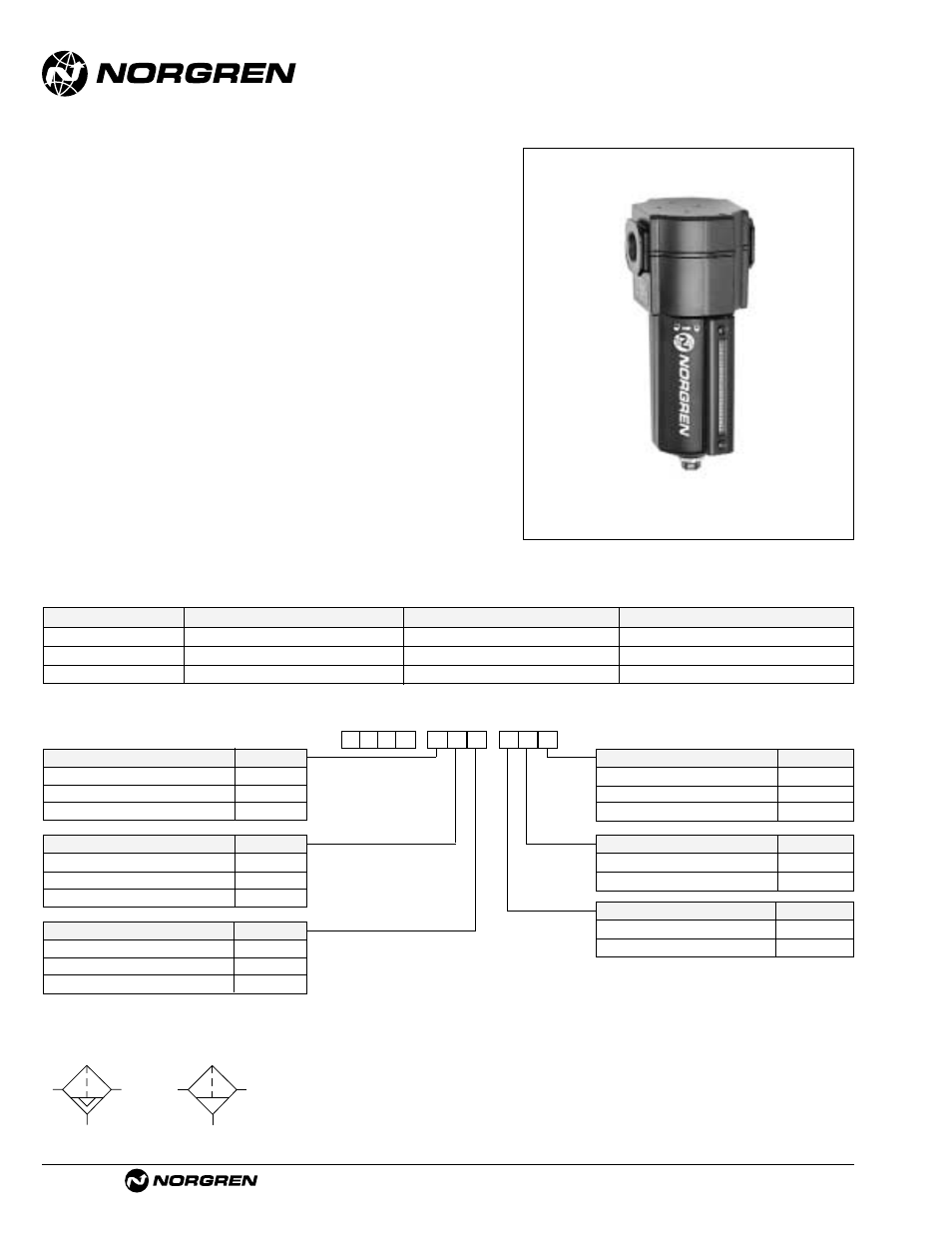

Excelon 74 General Purpose Filter
3/8", 1/2", 3/4" Port Sizes
ALE-1-8
Ordering information. Models listed include PTF threads, automatic drain, metal bowl with liquid level indicator, and a 40 µm element.
* Typical flow with a 40 µm element at 90 psig (6.3 bar) inlet pressure and 5 psig (0.35 bar) pressure drop.
Alternative Models
F 7 4 - G ★ ★ - ★ ★ ★ ★
Threads Substitute
PTF A
ISO Rc taper B
ISO G parallel G
Service Life Indicator Substitute
With (visual) D
With (electrical) E
Without N
Drain Substitute
Automatic A
Manual, 1⁄4 turn Q
Element Substitute
5 µm 1
25 µm 2
40 µm 3
Bowl Substitute
Metal with liquid level indicator D
Transparent with guard P
Port Size Substitute
3/8" 3
1/2" 4
3/4" 6
Port Size Model Flow* scfm (dm 3 /s) Weight lb (kg)
3/8" F74G-3AN-AD3 112 (53) 1.82 (0.83)
1/2" F74G-4AN-AD3 140 (66) 1.79 (0.81)
3/4" F74G-6AN-AD3 140 (66) 1.75 (0.79)
ISO Symbols
Auto Drain Manual Drain
