F74G General Purpose Filters
Littleton, CO USA Phone 303-794-2611 www.norgren.com ALE-1-9

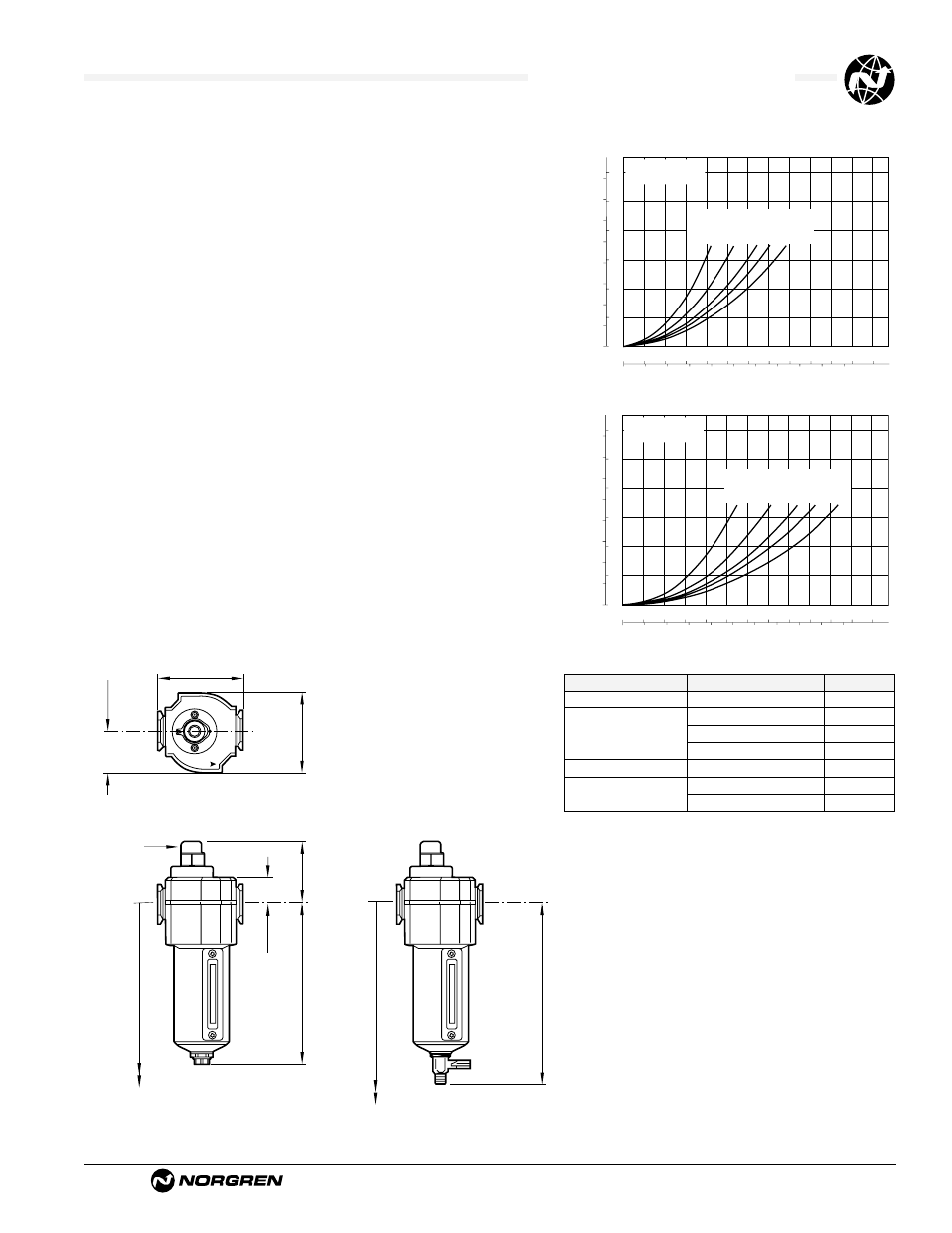

Technical Data
Fluid: Compressed air
Maximum pressure
Transparent bowl: 150 psig (10 bar)
Metal bowl: 250 psig (17 bar)
Operating temperature*:
Transparent bowl: -34° to 125°F (-30° to 50°C)
Metal bowl: -34° to 175°F (-30° to 80°C)
* Air supply must be dry enough to avoid ice formation at temperatures below 35 ° F (2 ° C).
Particle removal: 5, 25, or 40 µm filter element
Air quality: Within ISO 8573-1, Class 3 and Class 5 (particulates)
Typical flow with a 40 µm element at 90 psig (6.3 bar) inlet pressure and 5 psig
(0.35 bar) pressure drop: 140 scfm (66 dm 3 /s)
Manual drain connection: Will fit 1/8-27 and 1/8-28 pipe thread
Automatic drain connection: Will fit 1/8-27 and 1/8-28 pipe thread. - Flexible tube
with 3/16" (5mm) minimum I.D. can be connected to the automatic drain. Drain
may fail to operate if the tube I.D. is less than 3/16" (5mm). Avoid restrictions in
the tube.
Automatic drain operating conditions (float operated):
Bowl pressure required to close drain: Greater than 5 psig (0.3 bar)
Bowl pressure required to open drain: Less than 3 psig (0.2 bar)
Minimum air flow required to close drain: 2 scfm (1 dm
3 /s)
Manual operation: Depress pin inside drain outlet to drain bowl
Nominal bowl size: 7 fluid ounce (0.2 liter)
Materials
Body: Aluminum
Bowl
Transparent: Polycarbonate with steel bowl guard
Metal: Aluminum
Metal bowl liquid level indicator lens: Transparent nylon
Element: Sintered polypropylene
Elastomers: Neoprene and Nitrile
An automatic drain is a two-way valve, which will close when the system is
pressurized. The drain opens when the float rises due to accumulated liquid
and on depressurization.
Typical Performance Characteristics
PRESSURE DROP
0.6
0.4
0.2
0
bar d
10
8
6
4
2
0
psid
36
(2.5)
58
(4.0)
150
(10.0)
90
(6.3)
116
(8.0)
INLET PRESSURE: psig (bar g)
0 20 40 60 80 100 dm 3 /s
AIR FLOW
0 40 80 120 160 200 scfm
PORT SIZE: 1/2"
ELEMENT: 5
µ m
FLOW CHARACTERISTICS
PRESSURE DROP
0.6
0.4
0.2
0
bar d
10
8
6
4
2
0
psid
PORT SIZE: 1/2"
ELEMENT: 40
µ m
36
(2.5)
58
(4.0)
150
(10.0)
90
(6.3)
116
(8.0)
INLET PRESSURE: psig (bar g)
0 20 40 60 80 100 dm 3 /s
AIR FLOW
0 40 80 120 160 200 scfm
FLOW CHARACTERISTICS
6.95 (177)
1/4 Turn Manual Drain
9.69 (246) **
3.15 (80)
2.36 (60)
†
1.00 (25)
2.89 (74)
1.45 (37)
Automatic Drain
Optional
Service
Indicator
6.35 (161) 9.06 (230) **
* Minimum clearance required to remove bowl.
† Dimension for alternative electrical service indicator is 1.98" (50.4 mm)
Item Type Part Number
Service kit Seal & gasket 4380-700
Replacement elements
5 µm 4338-04
25 µm 4338-07
40 µm 4338-05
Liquid level lens kit Prismatic 4380-050
Replacement drains
Automatic (1/8 NPT outlet) 3000-10
Manual quarter turn
619-50
Service kit includes louvre/element seal, drain seal, bowl seal.
Service Kits
All Dimensions in Inches (mm)
