F46
●
High efficiency oil and particle removal
●
Screw-on bowl reduces maintenance time
●
Can be disassembled without the use of tools or
removal from the air line
●
Standard service indicator turns from green to red
when the filter element needs to be replaced
NOTE: Install an F17 filter with a 5 µm filter element upstream of the
F46 filter for maximum service life.

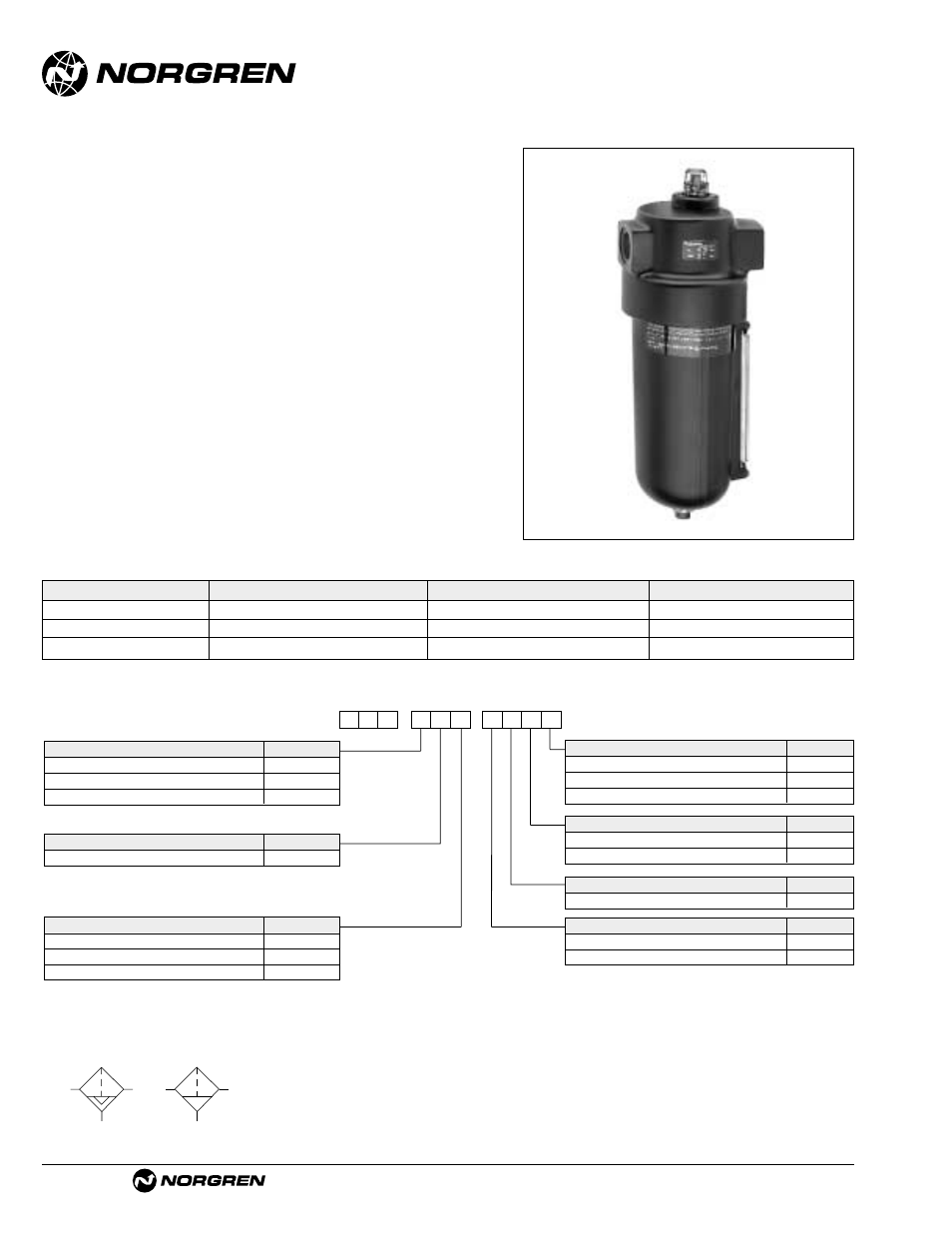

F46 Oil Removal (Coalescing)
Filter 3/4", 1", and 1-1/4" Port Sizes
ALE-2-14
Ordering Information.
Models listed include service indicator, automatic drain, metal bowl with sight glass, and PTF threads.
Port Size
Model Numbers
Maximum Flow* scfm (dm
3
/s)
Weight lbs (kg)
3/4"
F46-601-A0DA
90 (42)
4.11 (1.86)
1"
F46-801-A0DA
125 (59)
4.05 (1.84)
1-1/4"
F46-A01-A0DA
125 (59)
4.29 (1.95)
Alternative Models
-
★
★
★
★
★ ★
-
4
★
F
6
Threads
Substitute
PTF
A
ISO Rc taper
B
ISO G parallel
G
Drain
Substitute
Automatic
A
Manual
M
Bowl
Substitute
Metal with sight glass
D
Metal
M
Port Size
Substitute
3/4"
6
1"
8
1-1/4"
A
Element
Substitute
Coalescing
0
Option
Substitute
Not applicable
0
Service Life Indicator
Substitute
Without
0
With (visual)
1
With (electrical)
4
* Maximum flow for oil-saturated element at 90 psig (6.3 bar) inlet pressure to maintain stated oil removal performance.
Automatic and
Semi Automatic Drain
Manual Drain
ISO Symbols
