F74C/H
● Excelon design allows in-line or modular installation
● Quick release bayonet bowl
● Highly visible, prismatic liquid level indicator lens
● Standard visual service indicator turns from green to
red when the filter element needs to be replaced
● Optional electrical service indicator provides
electrical output when the filter element needs to be
replaced
● Modular installations with Excelon 72, 73, and 74
series can be made to suit particular applications

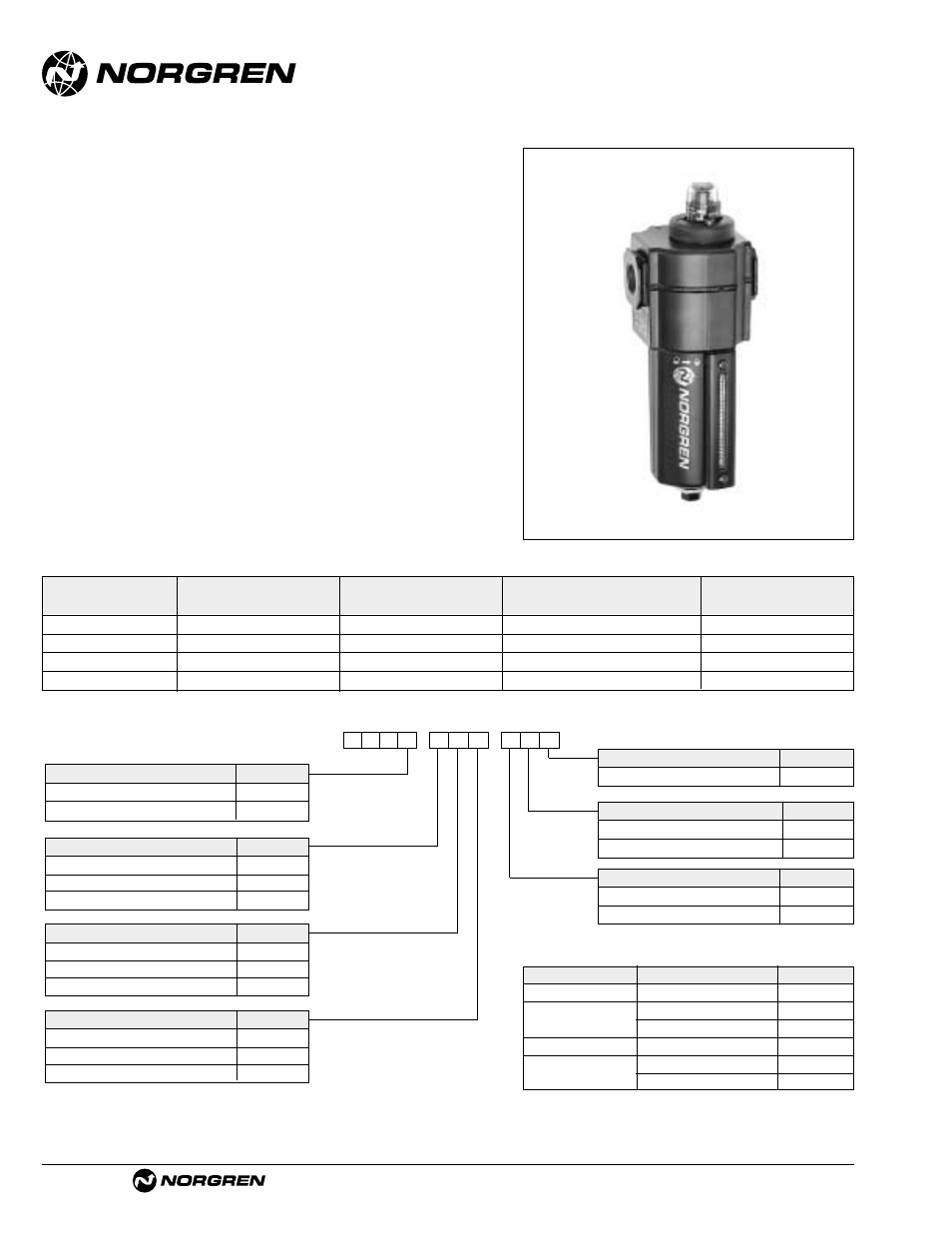

Excelon 74 Oil Removal Filters
(Coalescing) 3/8", 1/2", and 3/4" Port Sizes
ALE-2-8
Install an F74G pre-filter with a 5 µm filter element upstream of the F74C
and F74H filters for optimum coalescing element life.
Ordering Information. Models listed include PTF threads, service indicator, automatic drain, and a metal bowl with liquid level indicator.
* Maximum flow with 90 psig (6.3 bar) inlet pressure to maintain stated oil removal performance.
Main Port Size Body and Element Model Number Maximum Flow* Weight
scfm ( dm 3 /s) lb (kg)
3/8" Standard F74C-3AD-AD0 33.9 (16.0) 1.88 (0.85)
1/2" Standard F74C-4AD-AD0 33.9 (16.0) 1.84 (0.83)
1/2" High Flow F74H-4AD-AD0 59.3 (28.0) 2.45 (1.11)
3/4" High Flow F74H-6AD-AD0 59.3 (28.0) 2.40 (1.10)
Alternative Models F 7 4 - ★ ★ ★ - ★ ★ ★ ★
Threads Substitute
PTF A
ISO Rc taper B
ISO G parallel G
Service Life Indicator Substitute
With (visual) D
With (electrical) E
Without N
Drain Substitute
Automatic A
Manual 1⁄4 turn Q
Element Substitute
Coalescing 0
Bowl Substitute
Metal with liquid level indicator D
Transparent with guard P Port Size Substitute
3/8" 3
1/2" 4
3/4" 6
Body and Element Substitute
Standard* C
High Flow** H
* available with 3/8" or 1/2" ports
** available with 1/2" or 3/4" ports
Service Kits
Item Type Part Number
Service kit Seal and gasket 4380-730
Replacement elements
Standard 4344-01
High flow 4344-02
Liquid level kit Prismatic 4380-050
Replacement drains
Automatic (1/8 NPT outlet) 3000-10
Manual quarter turn 619-50
Service kits include element seal, bowl seal and drain seal.
