Installing the Balanced Stereo Audio Matrix Switcher
14

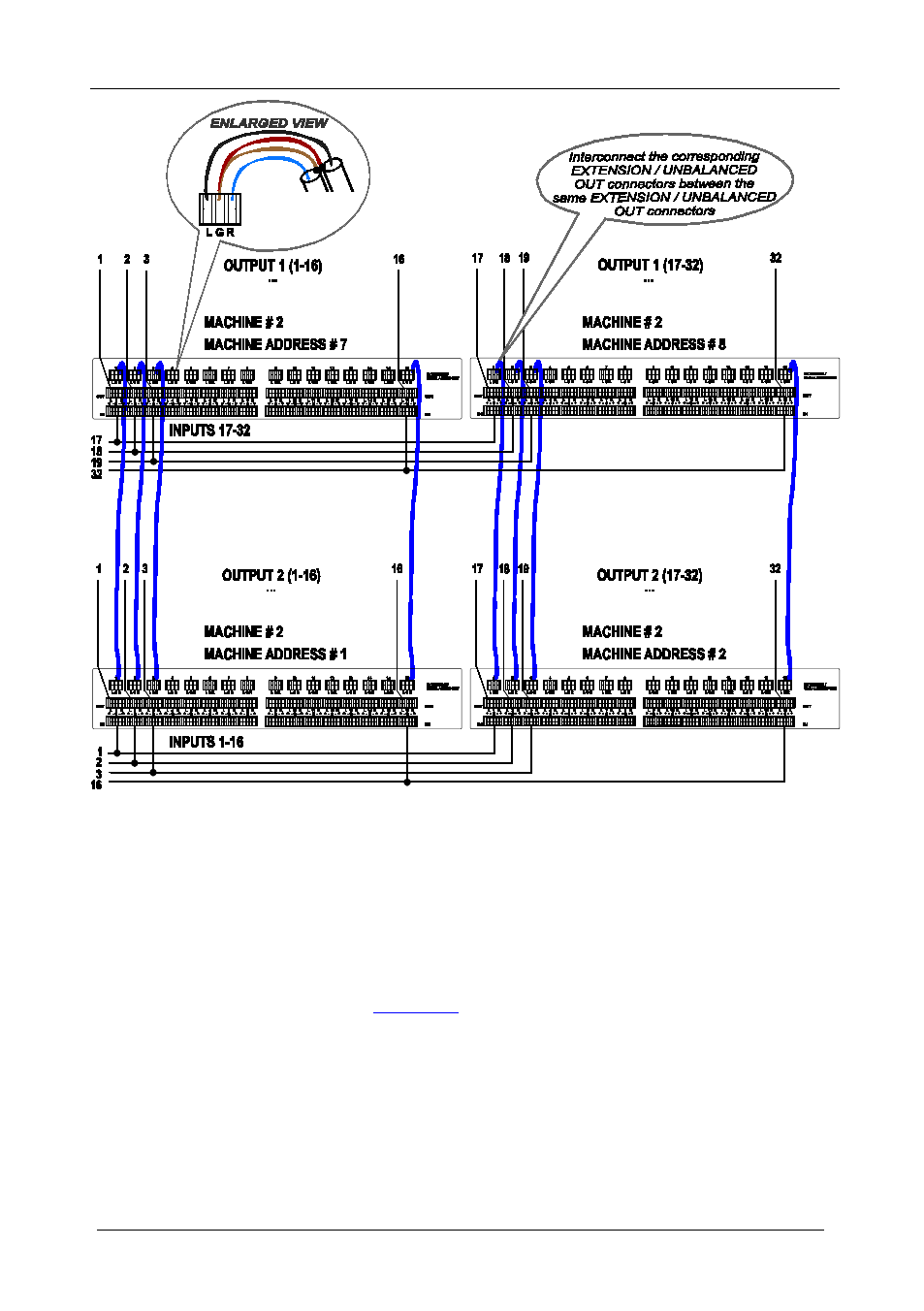

Figure 10: Connecting the 32x32 Switcher
6.5 Assembling a System of Interconnected Switchers
A major advantage of the VS-1616A is that it belongs to the series of
16x16 matrix switchers and, as such, can interconnect with other
switchers in the series.
The block diagram in Figure 11 illustrates how to assemble an
interconnected varied-format 16x16 series switcher that consists of a
32x32 composite video matrix switcher, a 32x16 digital video matrix
switcher, a 32x32 balanced stereo audio matrix switcher, and a 16x16
digital audio matrix switcher.
