Installing the Balanced Stereo Audio Matrix Switcher
10

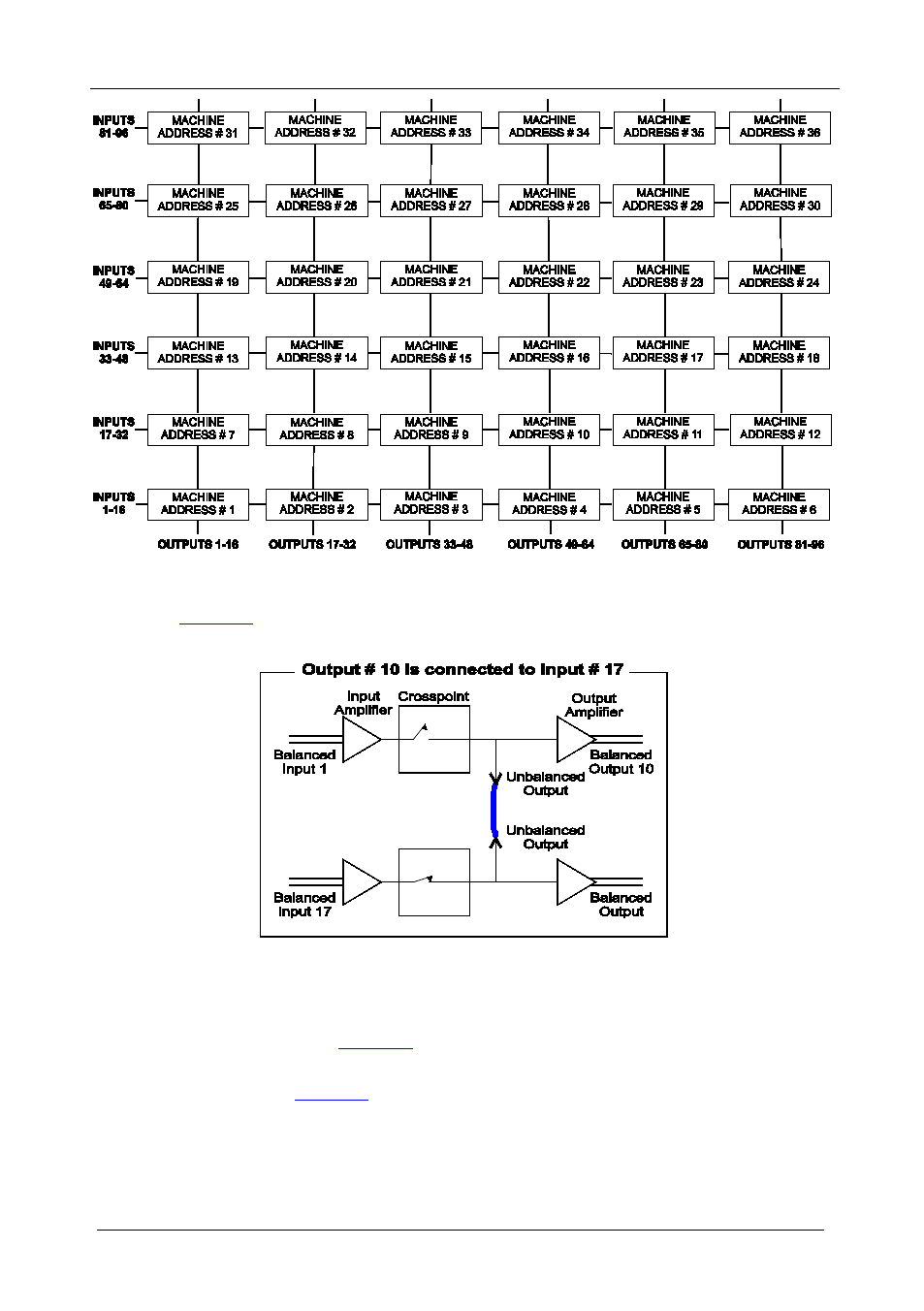

Figure 7: MACHINE ADDRESS # Designation
Figure 8 illustrates the principle of assembling an expanded matrix
switcher:
Figure 8: The Principle of Assembling an Expanded Matrix Switcher
6.4.1 Assembling a 32x16 Switcher
As can be seen in Figure 7 , a 32x16 switcher consists of 2 VS-1616A
units (MACHINE ADDRESS # 1 and MACHINE ADDRESS # 7). To
assemble, as
Figure 9 illustrates:
