YSRWJ-...-A
Festo YSRWJ-...-A 0008NH English
15
4 Fitting
Fitting mechanical components
S Select the fitting variant to suit your application.

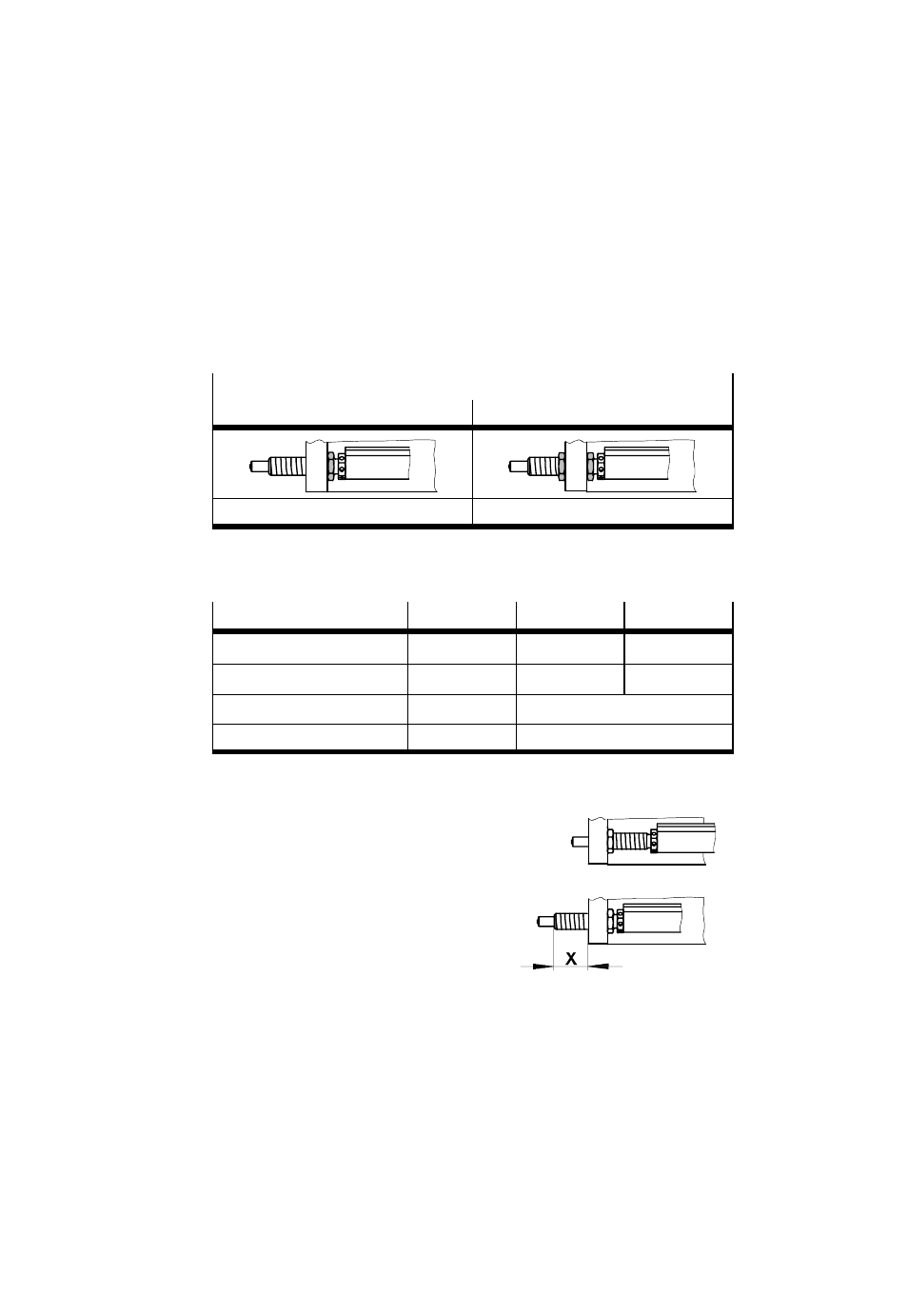

Variants
Direct fastening with the screw thread Indirect fastening in a hole
1 x locked 2 x locked
Fig. 4
The relevant tightening torque is shown in the table below.
Type YSRWJ-5-8-A YSRWJ-7-10-A YSRWJ-8-14-A
Tightening torque 2 Nm 3 Nm 5 Nm
Width across flats 10 13 15
Hole in capstan nut 2 mm 2.4 mm
Length X 15 mm 20 mm
Fig. 5
S Tighten the lock nuts in the desired end positions equally.
The following maximum end positions of
the positioning element are permitted:
– screwed in flush
– the thread of the positioning element
projects with maximum length X (see
Fig. 5).
Fig. 6
