YSRWJ-...-A
Festo YSRWJ-...-A 0008NH English
14

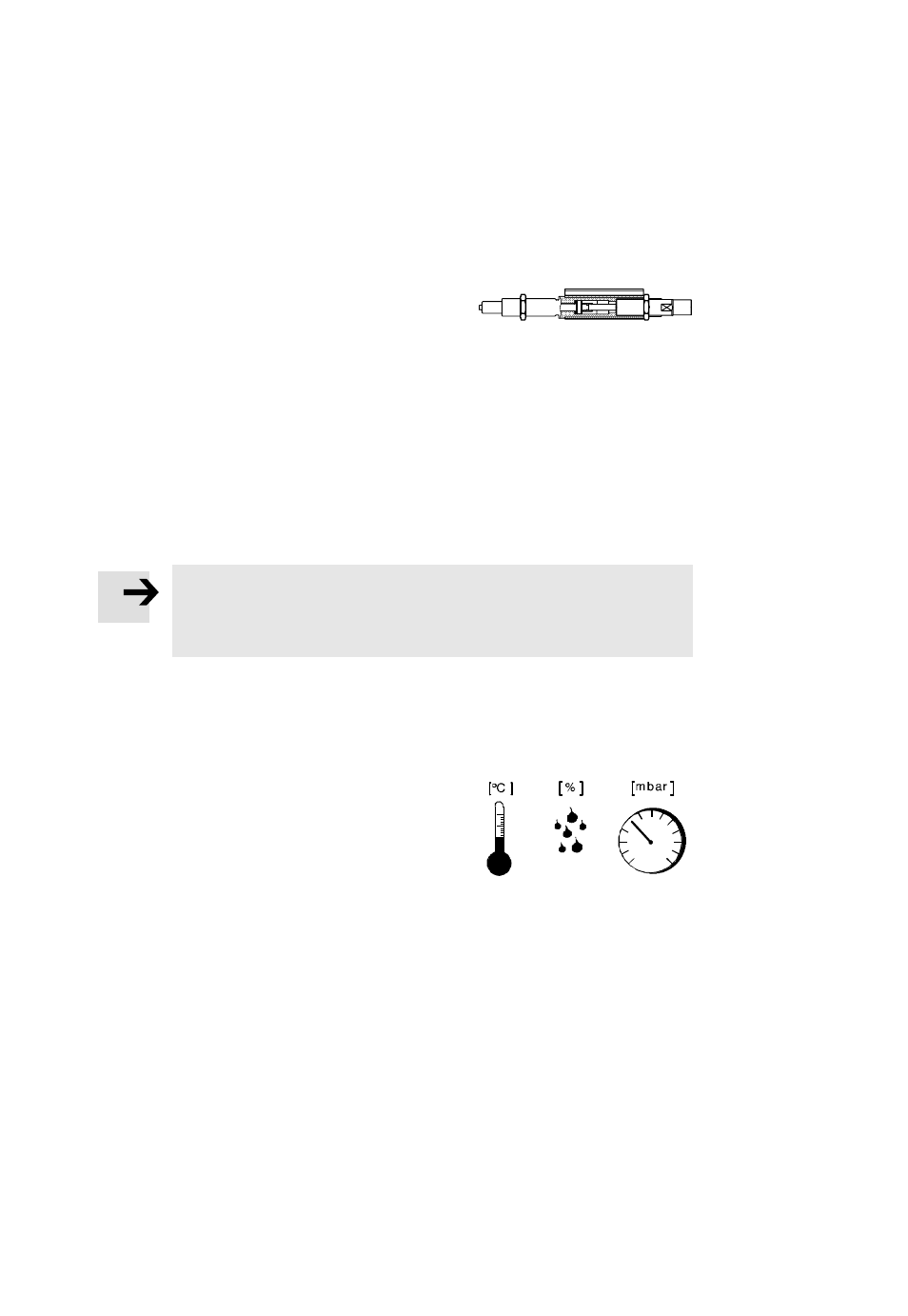

2 Method of operation and use
The positioning element YSRWJ-... consists of
a positioning support, a positioning plunger
and a hydraulic shock absorber. A magnet is
fastened to the positioning plunger. The posi-
tion of the magnet can be interrogated by a
proximity switch of type SM..-8-... in the
groove
5 of the positioning element.
The positioning element type YSRWJ-... is designed for cushioning mass forces.
The YSRWJ-... also functions as a stop within the permitted loading limits.
3 Conditions of use
Please note
Incorrect handling can lead to malfunctioning.
These general conditions for the correct and safe use of the product must be
observed at all times.
S Compare the maximum values specified with those of your application.
The maximum permitted values, e.g. for pressures, forces, torques, masses,
speeds and temperatures must not be exceeded.
S Please observe the prevailing ambient conditions.
S Please comply with national and local
safety laws and regulations.
S Unauthorized product modification is not
permitted.
Fig. 2
Fig. 3
