A
ppe
ndix
Specifications
87 GB

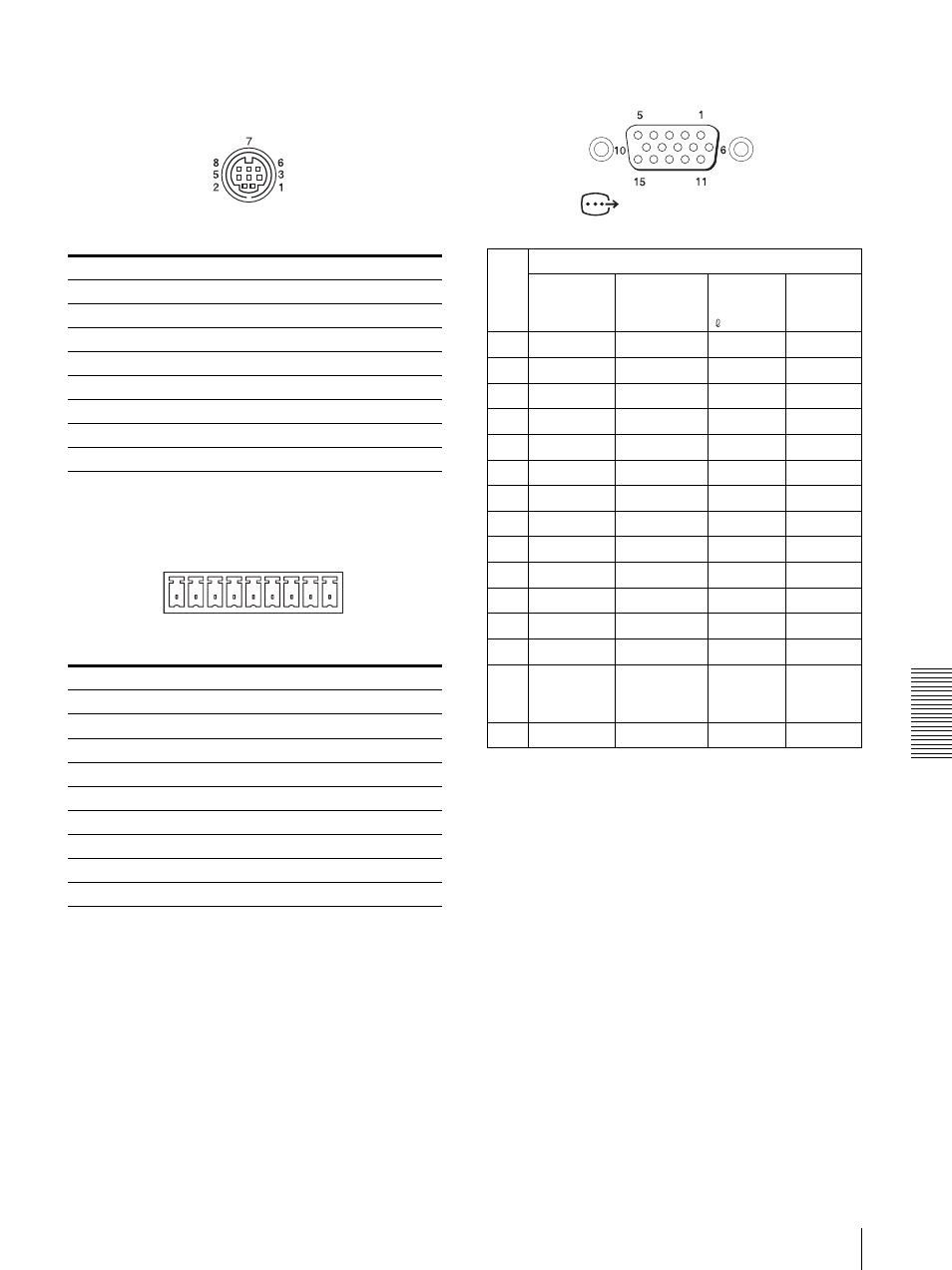

VISCA RS-232C OUT connector (mini DIN 8-pin,
female)
VISCA RS-422 connector (connector plug,
9-pin)
Analog RGB/COMPONENT (D-sub 15-pin)
Pin No. Function
1 DTR OUT
2 DSR OUT
3 TXD OUT
4 GND
5 RXD OUT
6 GND
7 No Connection
8 No Connection
Pin No. Function
1 RXD OUT –
2 RXD OUT+
3 TXD OUT –
4 TXD OUT+
5 GND
6 RXD IN –
7 RXD IN+
8 TXD IN –
9 TXD IN+
VISCA RS232C
OUT
VISCA RS422
1 2 3 4 5 6 7 8 9
Pin
No. Function
At YPbPr
COMPONENT
setting At YPbPr
COMPONENT
setting (at VD) At RGB
setting (at
SYNC)
At RGB
setting (at
VD)
1 Pr-OUT Pr-OUT R-OUT R-OUT
2 Y-OUT Y-OUT G-OUT G-OUT
3 Pb-OUT Pb-OUT B-OUT B-OUT
4 GND GND GND GND
5 GND GND GND GND
6 GND GND GND GND
7 GND GND GND GND
8 GND GND GND GND
9 NC NC NC NC
10 GND GND GND GND
11 GND GND GND GND
12 NC NC NC NC
13 HD-OUT HD-OUT HD-OUT HD-OUT
14 Tri-level
SYNC-OUT Bi-level VD-
OUT Tri-level
SYNC-
OUT Bi-level
VD-OUT
15 NC NC NC NC
RGB/COMPONENT
