Connections
63 GB
Connections

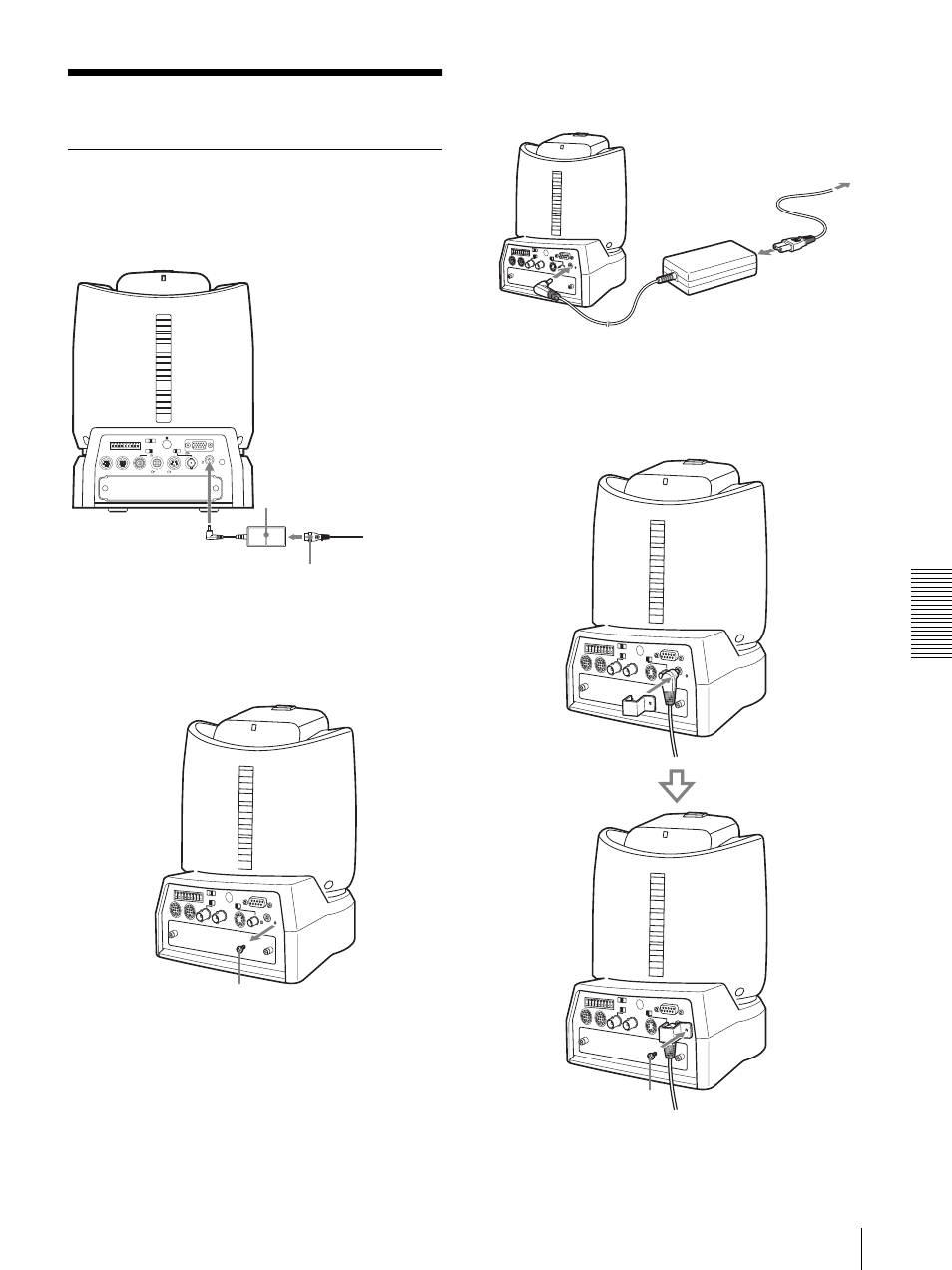

Connecting to an AC Outlet
Use the supplied AC power adaptor and AC power cord
to connect the camera to an AC outlet.
1
Remove the screw for fixing the DC-cord secure
connection attachment from the rear panel of the
camera.
2
Connect the supplied AC power adaptor and AC
power cord.
3
Attach the supplied DC-cord secure connection
attachment and secure with the screw removed in
Step 1 to prevent the AC power adaptor from being
removed.
RGB/COMPONENT VISCA RS-422
1 2 3 4 5 6 7 8 9
EXT SYNC IN
IR SELECT
75
1 2 3
OFF ON HD SD
IN VISCA RS-232 OUT SDI OUT DC IN 12V
R
VIDEO S VIDEO
AC power adaptor MPA-AC1
(supplied)
to AC outlet
DC IN 12V
AC power cord (supplied)
Screw for fixing the DC-cord secure connection
attachment (3M3
×
6)
Screw for fixing the DC-cord
secure connection attachment
(3M3
Ч
6)
