Operating multiple brc-h900 cameras from a, Long distance – Vaddio BRC-H900 Operating User Manual
Page 15
Ov
er
v
ie
w
System Configuration
15
GB
Operating Multiple BRC-H900 Cameras from a Long Distance
This system allows you:
• To operate up to seven cameras remotely from a distance up to 2,000 m (6,562 feet)
• To perform pan/tilt and zoom operations using the joystick
• To transmit the video and control signals of the cameras to a distant place using the Optical Fiber Cable

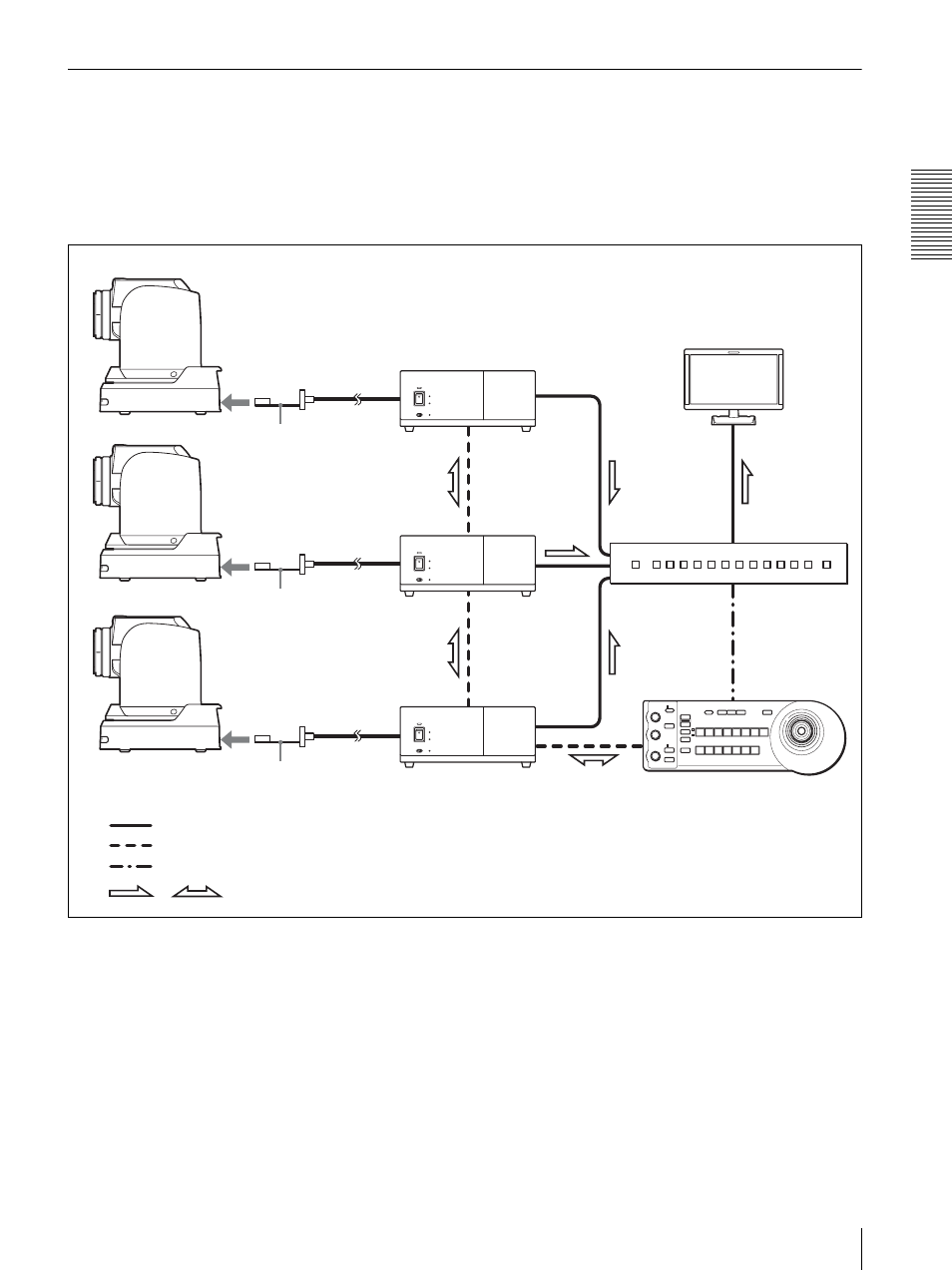

System configuration
,
BRC-H900
BRC-H900
BRC-H900
BRBK-SF1 HD
Optical Multiplex Card
BRBK-SF1
BRBK-SF1
BRU-SF10 Optical
Multiplex Unit
BRU-SF10
HD video monitor
BRU-SF10
Video switcher
RM-BR300 Remote Control Unit
CCFC-S200
Optical Fiber
Cable
CCFC-S200
CCFC-S200
Video signal
Remote control (VISCA) signal
Tally/contact signal
Signal flow
