Transmitting Audio Signals Using the BRU-SF10
This system allows you:
• To operate the camera remotely from a distance up to 2,000m (6,562 feet)
• To perform pan/tilt and zoom operations using the joystick
• To transmit the video and control signals of the camera, and the audio signal input to the BRBK-SF1 Optical Multiplex
Card, to a distant place using the Optical Fiber Cable

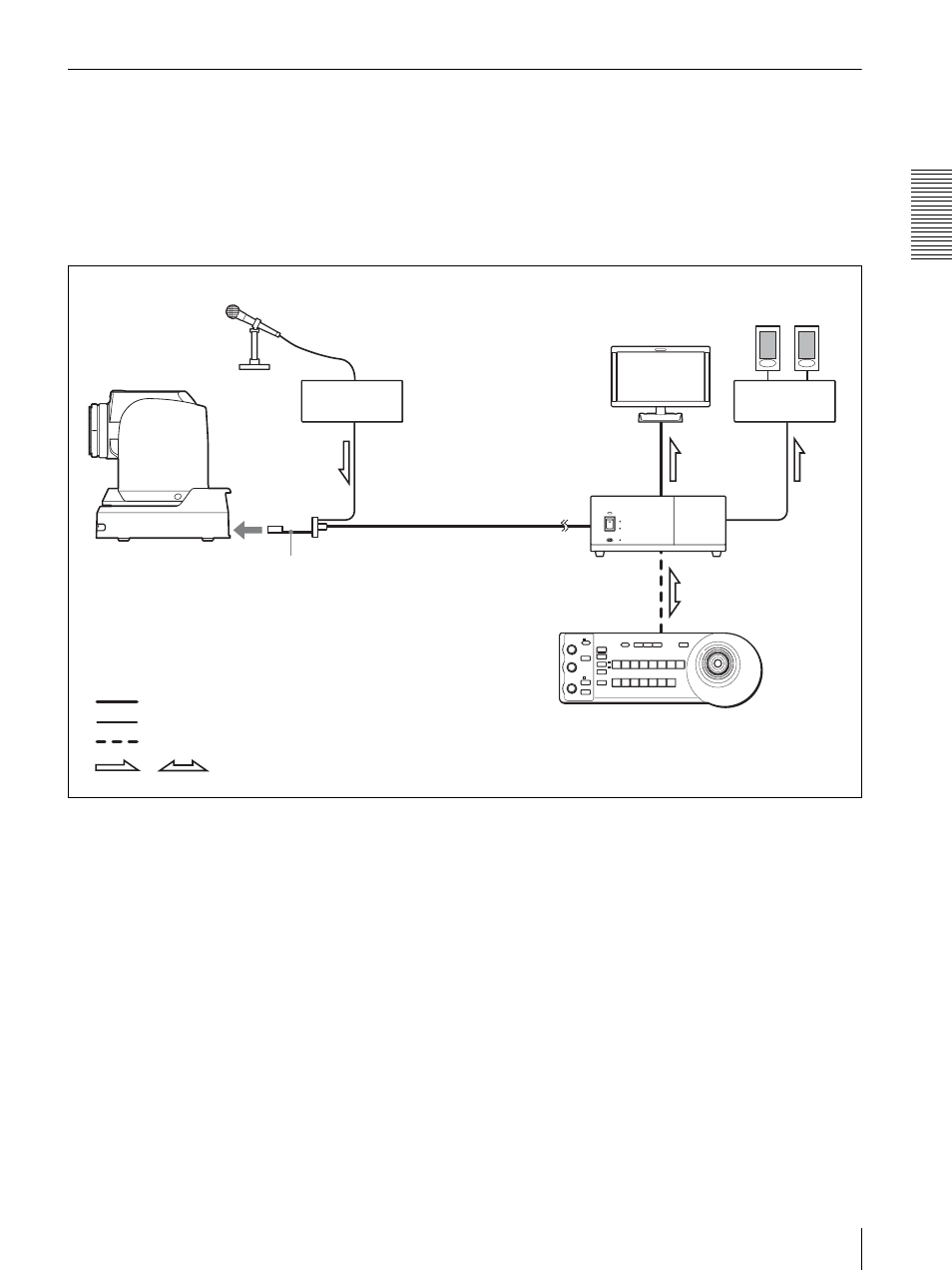

System configuration
,
BRC-H900
Microphone
HD video monitor
RM-BR300 Remote Control Unit
CCFC-S200
Optical Fiber
Cable
Video signal
Audio line signal
Remote control (VISCA) signal
Signal flow
Microphone amplifier
BRBK-SF1 HD
Optical Multiplex
Card
Speakers
Audio
amplifier
BRU-SF10 HD
Optical Multiplex
Unit
