150kW InfraStruXure PDU—Operation and Configuration

Configuring the InfraStruXure Manager

Connect the InfraStruXure PDU to the InfraStruXure Manager

1. Connect a Cat-5 network cable to the surge-protected ethernet port on the PDU user connection

plate.

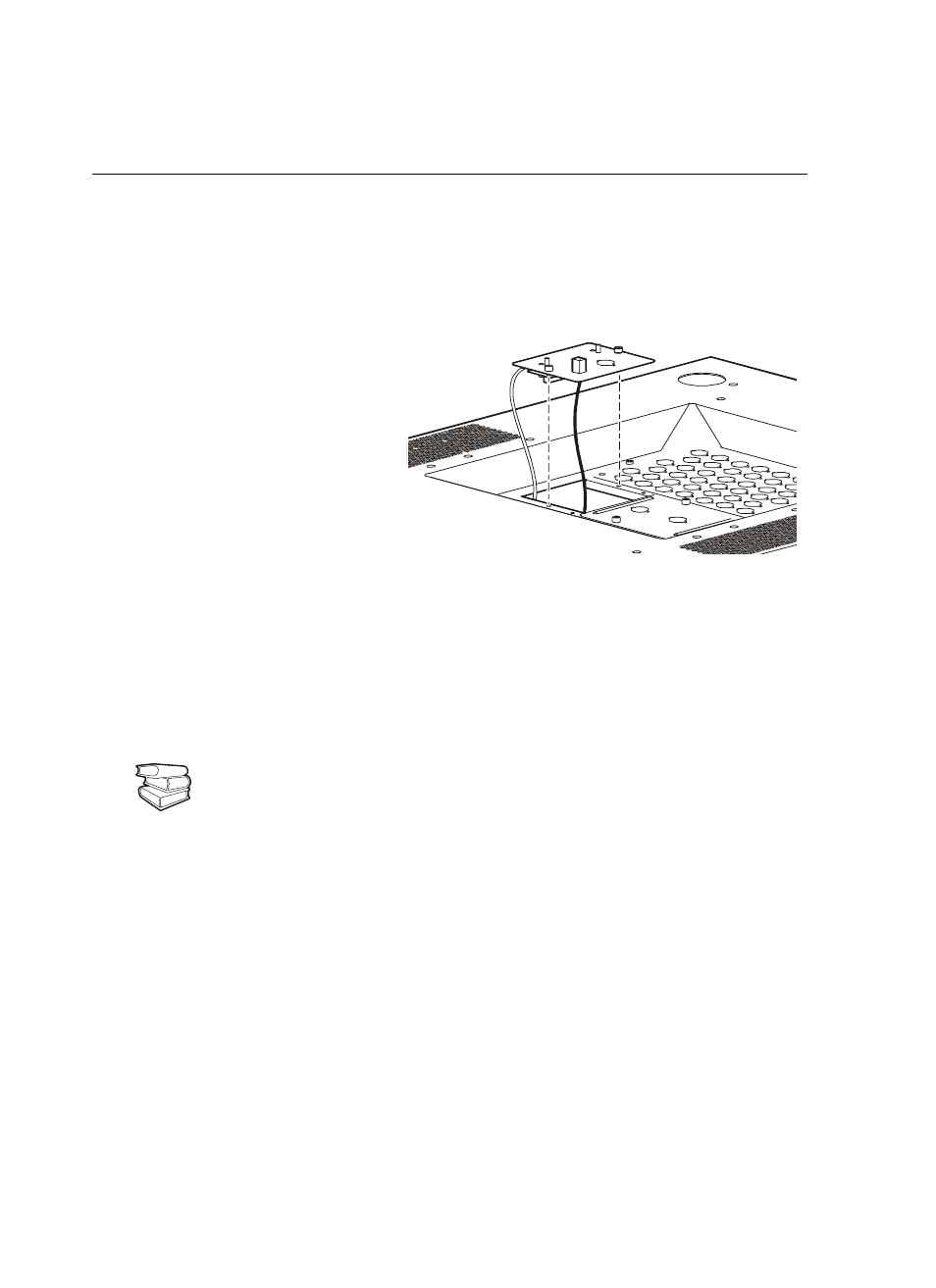

You can make connections from
inside the enclosure, or you can
remove the user connection plate
and make your connections.
Remove the plate using a Phillips
or standard screw driver to loosen
the two captive screws. Use the
knockout in the plate to route
cables to and from the user
connections on the plate. If you
remove the plate, make sure that
you do not disturb the existing connections.

2. Run the connected Cat-5 network cable through the knockout in the user connection plate to the

InfraStruXure Manager Hub.

3. Once all APC InfraStruXure-Certified equipment is installed, the network cables are connected

to the InfraStruXure Manager Hub, and start-up of the system is complete, configure the
InfraStruXure Manager.

See also

For detailed configuration instructions, see the InfraStruXure Manager Installation and
Quick-Start
manual included with your InfraStruXure Manager.
