When disposing of your used products, perform [RESET Wi-Fi SETTINGS] to delete personal
information from this unit.
≥ Disassemble after the battery runs out.
≥ If it cannot be removed smoothly, contact Panasonic’s Service Center.
≥ Keep disassembled parts out of reach of children.

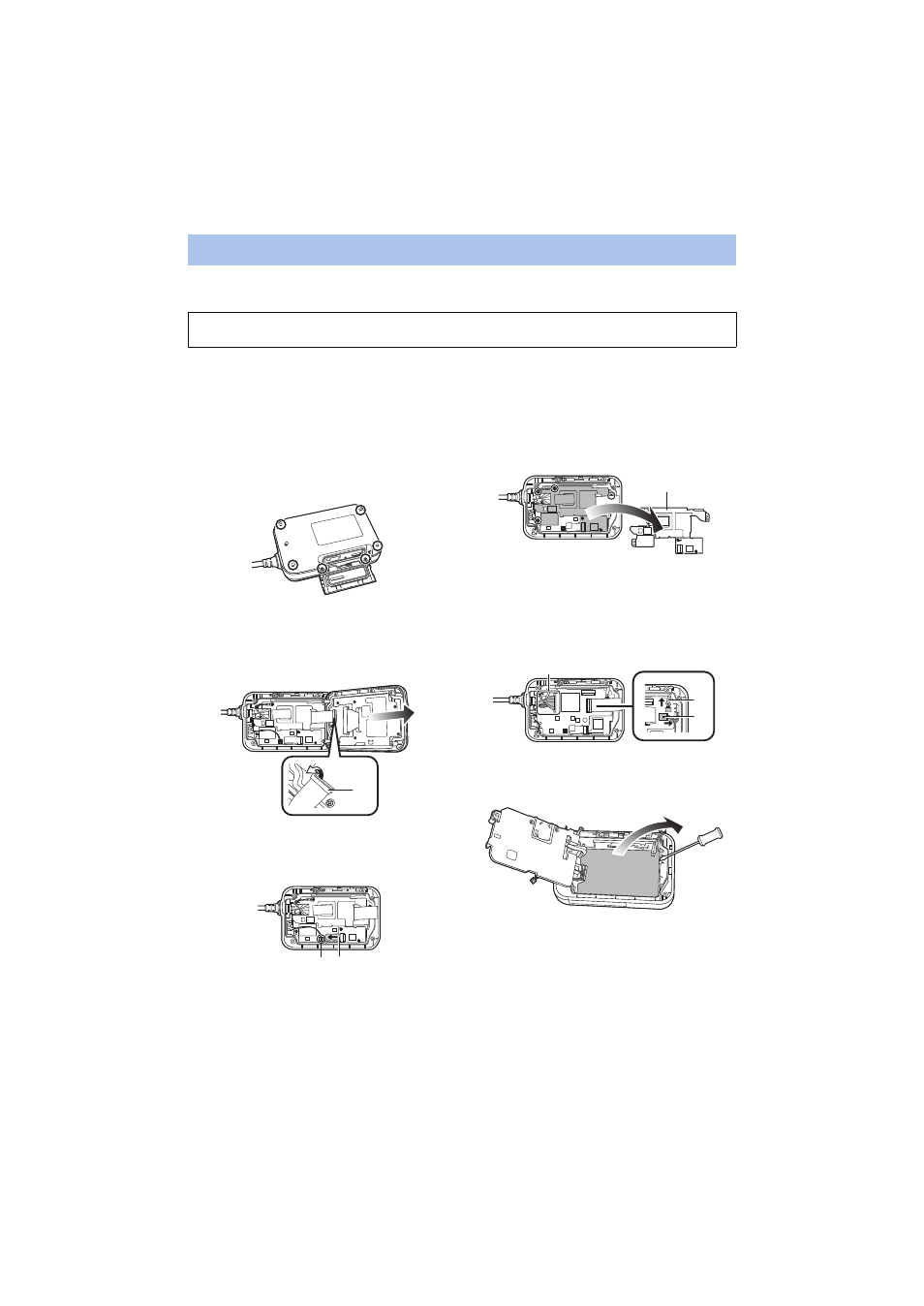

1
Open the side cover, and remove
all of the 6 screws indicated in the
figure below.
≥ Use a cross-slot screwdriver (commercially
available).
2
Remove the connector
A of the
flexible circuit board, and remove
the circuit board on the front side
(button side) of this unit.
3
Pull out the flexible circuit board
B, and pull out the speaker
connector
C upwards.
4
Remove the 4 screws indicated in
the figure below, and remove the
heatsink
D.
5
Remove the connector
E of the
camera unit, the built-in battery
connector
F, and the NFC flexible
circuit board
G, and lift up the
circuit board.
6
Remove the battery by using a
screwdriver.
Regarding the handling of used batteries
≥ Insulate the terminals with cellophane tape or
similar.
≥ Do not disassemble.
How to remove the battery
This figure describes the disposal of this unit, it is not instruction for repair. If
disassembled, repair is not possible.
