- 24 -
1
Push down the lock lever of the
Head Mount (L) to the UNLOCK side.
2
Attach the Head Mount (R) to the Head Mount (L).
3
Loosen the adjustment knob, and
change the direction of the camera
holder.
≥ To loosen the adjustment knob, rotate it
towards 1. To tighten the adjustment knob,
rotate it towards 2.
≥ Adjust the direction as shown in the illustration,
and tighten the adjustment knob again.
1
Insert the camera unit until it clicks
into place.
≥ Insert the camera unit so that the microphone
faces inward.
2
Fit the camera/main unit connection
cable in the cable holder.
≥ Loosen the cable to make the shape of the
Head Mount.

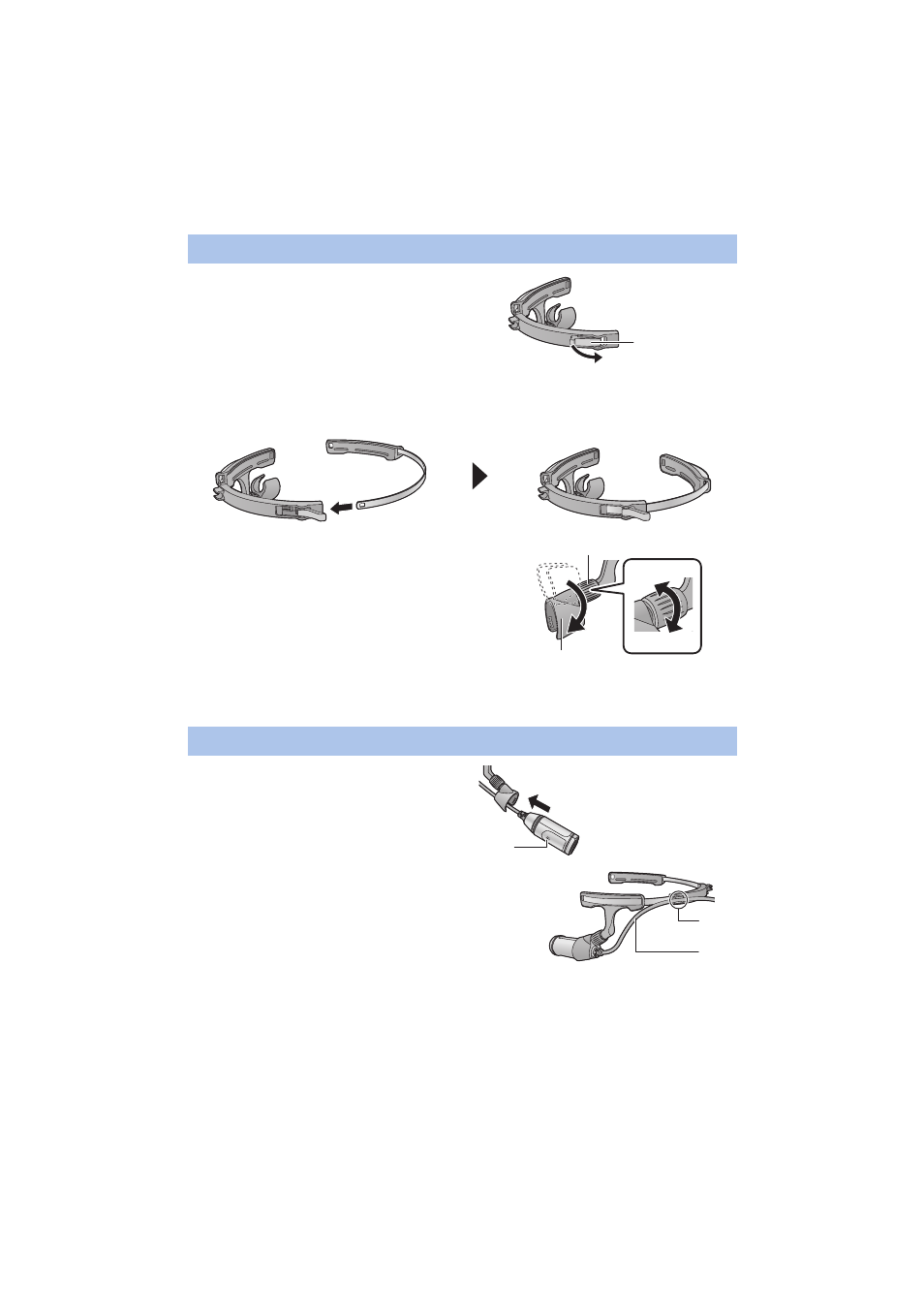

Assembling the Head Mount
Attaching the camera unit to the Head Mount to wear

A Lock lever




B Adjustment knob
C Camera holder

A Microphone


B Cable holder
C Camera/main unit connection
cable
