Komandni i funkcijski elementi – Karcher B 60 W Bp Pack User Manual
Page 409
– 3

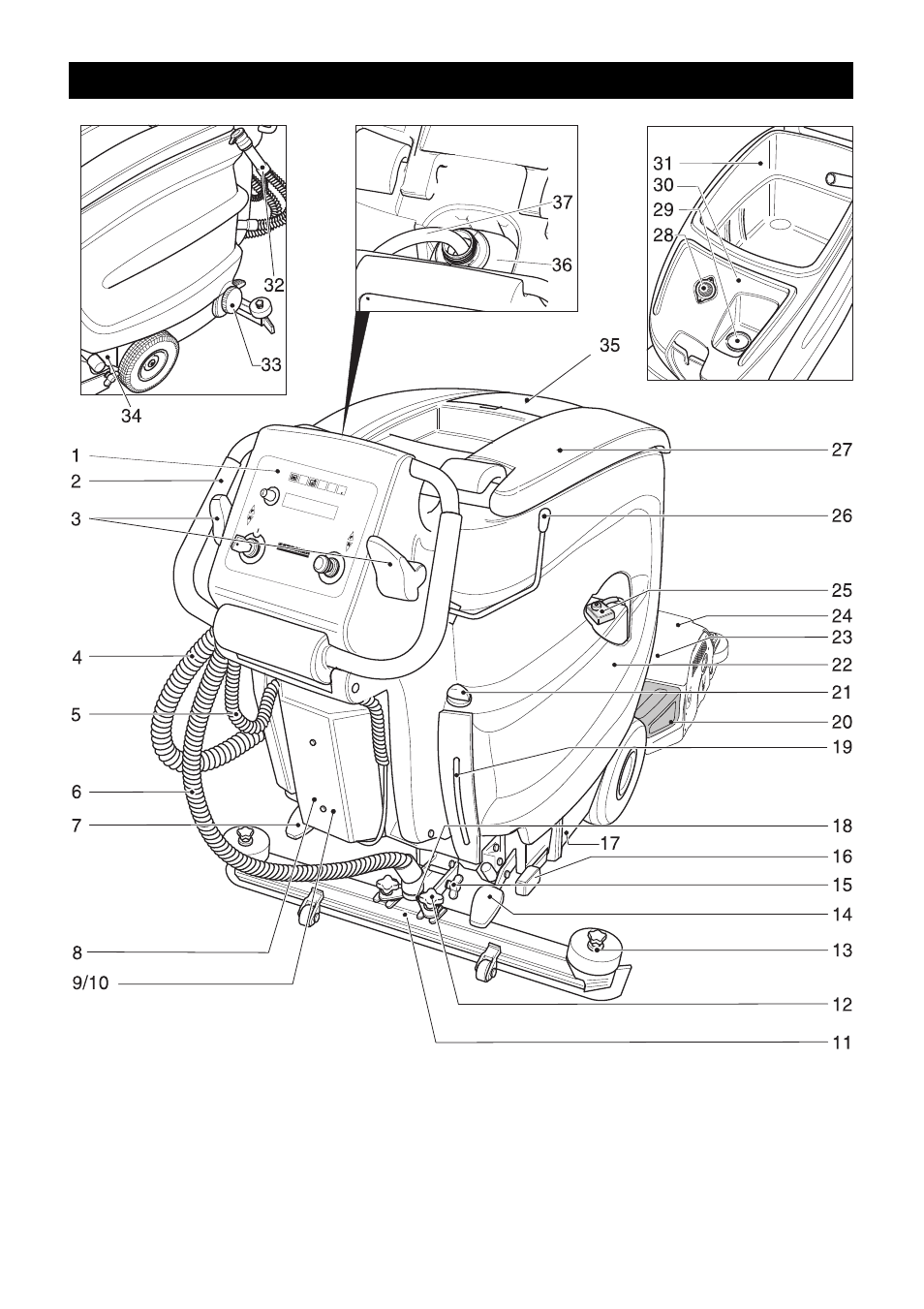

1 Komandni pult
2 Potisna ručica
3 Vozna poluga
4 Ispusno crijevo prljave vode
5 Priključni kabel punjača (samo izvedba
Pack)
6 Usisno crijevo
7 Papučica pozicijske kočnice (opcija)
8 Punjač (samo izvedba Pack)
9 Elektronika i osigurači
10 Vijci oplate elektronike
11 Usisna konzola *
12 Križni držači za pričvršćenje usisne
konzole
Komandni i funkcijski elementi
409
HR
