Elementos de comando e de funcionamento – Karcher B 60 W Bp Pack User Manual
Page 126
– 4

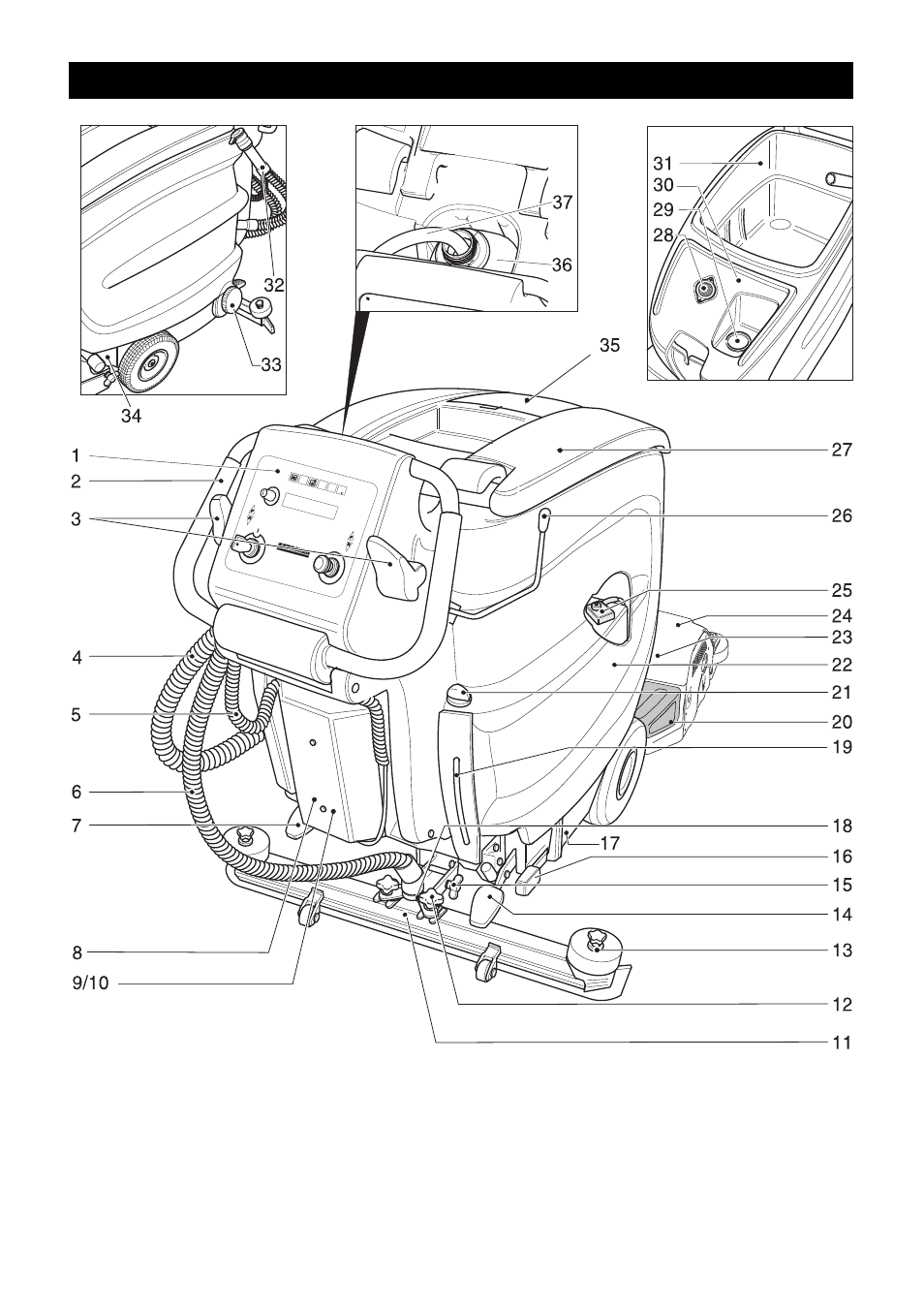

1 Painel de comando
2 Alavanca de avanço
3 alavanca de marcha
4 Mangueira de escoamento de água
suja
5 Cabo de ligação para carregador (ape-
nas a variante Pack)
6 Tubo flexível de aspiração
7 Pedal para accionar o travão de imobi-
lização (opção)
8 Carregador (apenas a variante Pack)
9 Sistema electrónico e fusíveis
10 Parafusos de cobertura electrónica
11 Barra de aspiração.*
Elementos de comando e de funcionamento
126
PT
