– 13

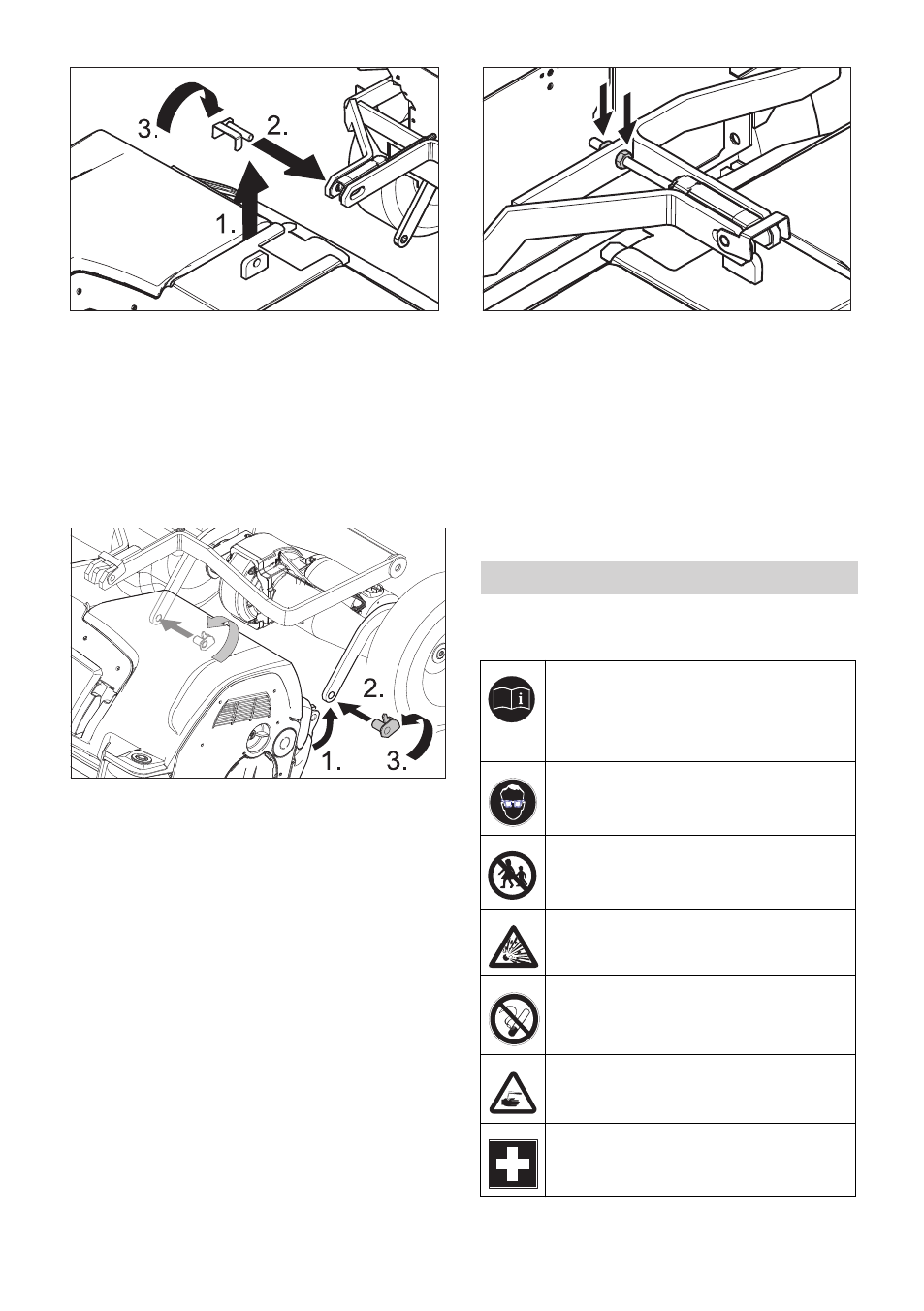

 Insert the tab into the middle of the
cleaning head, between the fork of the
lever.
 Position the lever on the pedal for rais-
ing/lowering so that the borings in the
lever and the cleaning head align.
 Insert the stop pin through the bushings
and swivel the locking plate downward.
 Align the pushing rod in the handle at
the cleaning head.
 Insert the stop pin from the right through
the bushings and swivel the locking
plate downward.
 Repeat process on the pushing rod on
the opposite side.
Note
Both the pins at the pushing rods are
pushed in from the same side through the
bushings (not in opposite directions).
 Loosen the nuts of the adjustment
screw and align the cleaning head in
such a way that the brush rollers touch
the floor in an even manner.
 Then tighten the nuts of the adjustment
screw.
The removal will take place in the opposite
order of the installation.
Please observe the following warning notes
when handling batteries:
Dismantling the cleaning head
Batteries
Observe the directions on the bat-
tery, in the instructions for use
and in the vehicle operating in-
structions
Wear eye protection
Keep children away from acid and
batteries
Danger of explosion
Fire, sparks, naked flames and
smoking must be strictly avoided
Danger of chemical burns
First aid
35 EN
