– 4
12 Cross handles for fastening the vacuum
bar
13 Cross-handles for replacing the vacu-
um lips
14 Pedal for raising/ lowering the cleaning
head
15 Wing nuts for tilting the vacuum bar
16 Level for adjusting the brush contact
pressure
17 Nameplate
18 Vacuum bar suspension
19 Fresh water level display
20 Waste container (only BR)
21 Water quantity regulator
22 Battery (only package model)
23 Brush rollers (BR model) Disk brushes
(BD model) *
24 Cleaning head *
25 Main fuse F1
26 Vacuum bar lowering lever
27 Cover dirt water reservoir
28 Fluff filter
29 Filling nozzle for fresh water tank
30 Fresh water tank
31 Dirt water reservoir
32 Dosing equipment for dirt water
33 Fresh water tank lock
34 Locking the tank
35 Lid of air channel (installed firmly; can
only be removed by an expert)
36 2.5 l detergent bottle *
37 Suction hose for detergent (only Dose
model)
* not included in the delivery

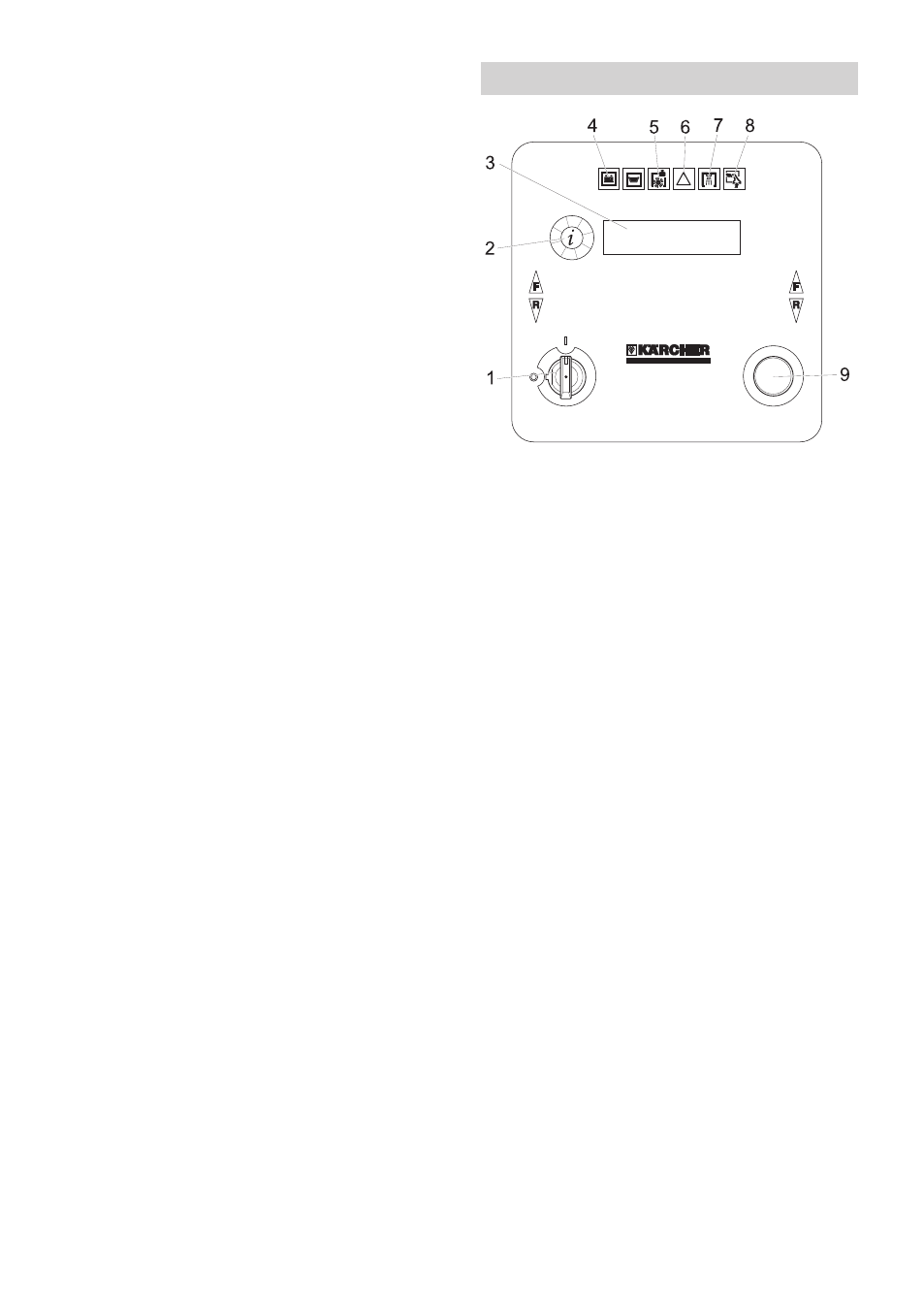

1 Key switch
2 Info button
3 Display for
– Battery status
- Cleaning speed
- Brush speed
- WDB function
– Operating hours
– Speed
- Detergent dosing (only Dose model)
– Manufacturer
– Programme version
4 Indicator lamp (red), lights up when the
batteries are discharged
5 Indicator lamp (red), lights up when the
detergent bottle is empty (only Dose
model)
6 Indicator lamp (red), lights up when the
brushes are overloaded
7 Indicator lamp (green), lights up when
the water is added
8 Indicator lamp (green), lights up when
vacuum is on
9 Emergency-stop button (turn to re-
lease)
Operator console
26 EN
