– 5

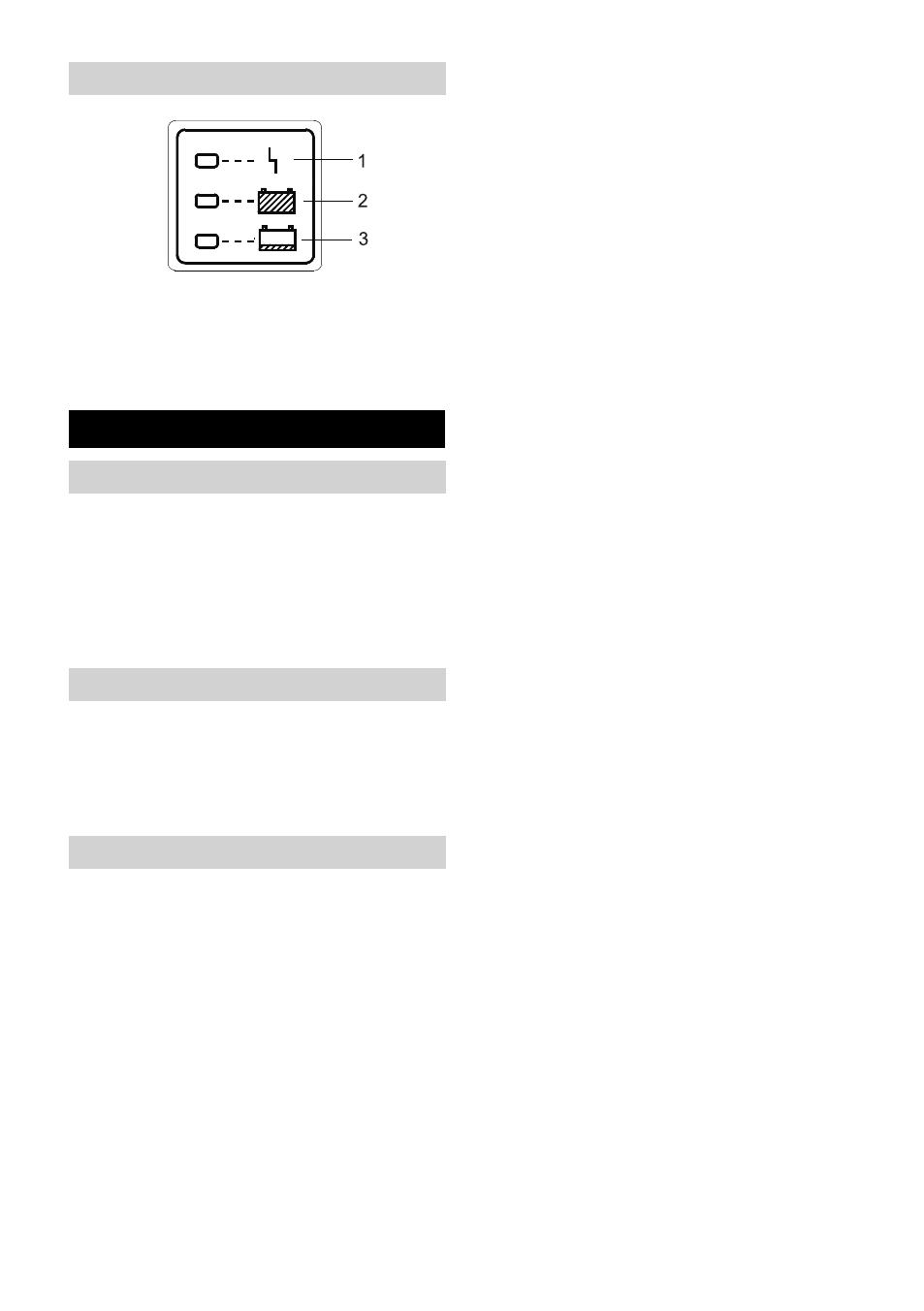

1 red LED lights up = Problem with charg-
er/ battery; inform Customer Service
2 green LED lights up = batteries are full
3 yellow LED lights up = batteries are be-
ing charged
The sweep brushes must be installed be-
fore the initial operation (see "Maintenance
work").
The brushes are mounted.
The "Pack" model contains built-in batter-
ies.
With the other models, the batteries must
be installed (see "Care and Maintenance /
Installing and Connecting Batteries").
ƽ
Danger
Danger of explosion. Wet batteries can
only be charged with opened hood.
Note
The device is equipped with a safety mech-
anism to prevent total discharge, i.e. when
the permissible minimum capacity is
reached, then the brush motors and the tur-
bine are switched off. In such a case, the
battery status display on the control con-
sole glows red. From this moment onwards,
only driving mechanism is possible.
 Drive the machine directly to the charg-
ing station; avoid any steep gradients in
the process.
Note
While using other batteries (for e.g. batter-
ies from other manufacturers) the total dis-
charge protection level must be reset by the
Kärcher aftersales service according to the
respective battery.
ƽ
Danger
Risk of electric shock. Observe supply net-
work and fuse protection - see "Charger".
Only use the charger in dry rooms with suf-
ficient ventilation!
Note
Average charging time is approx. 10 -15
hours.
The recommended chargers (matching the
batteries used) are regulated electronically
and will automatically switch off the charg-
ing process.
All functions of the machine are automati-
cally interrupted during the charging proc-
ess.
 Insert the plug of the connecting cable
into the socket.
 Empty the dirt and fresh water tank.
 Loosen the tank lock and tilt the tank
upwards.
 Remove battery plug and join it to the
charging cable.
 Connect the charger to the mains and
turn it on.
 Add distilled water one hour before the
charging process comes to an end; fol-
low the correct acid level. There are
corresponding indicators on the battery.
ṇ
Warning
Danger of causticization!
Charger (only Pack model)
Before Startup
Installing the Brushes
BD model
BR model
Install batteries
Charging battery
Charging procedure for Pack model
Charging process without integrated
charger
Low maintenance batteries (wet batter-
ies)
