Operating and functional elements – Karcher B 60 W Bp Pack User Manual
Page 25
– 3

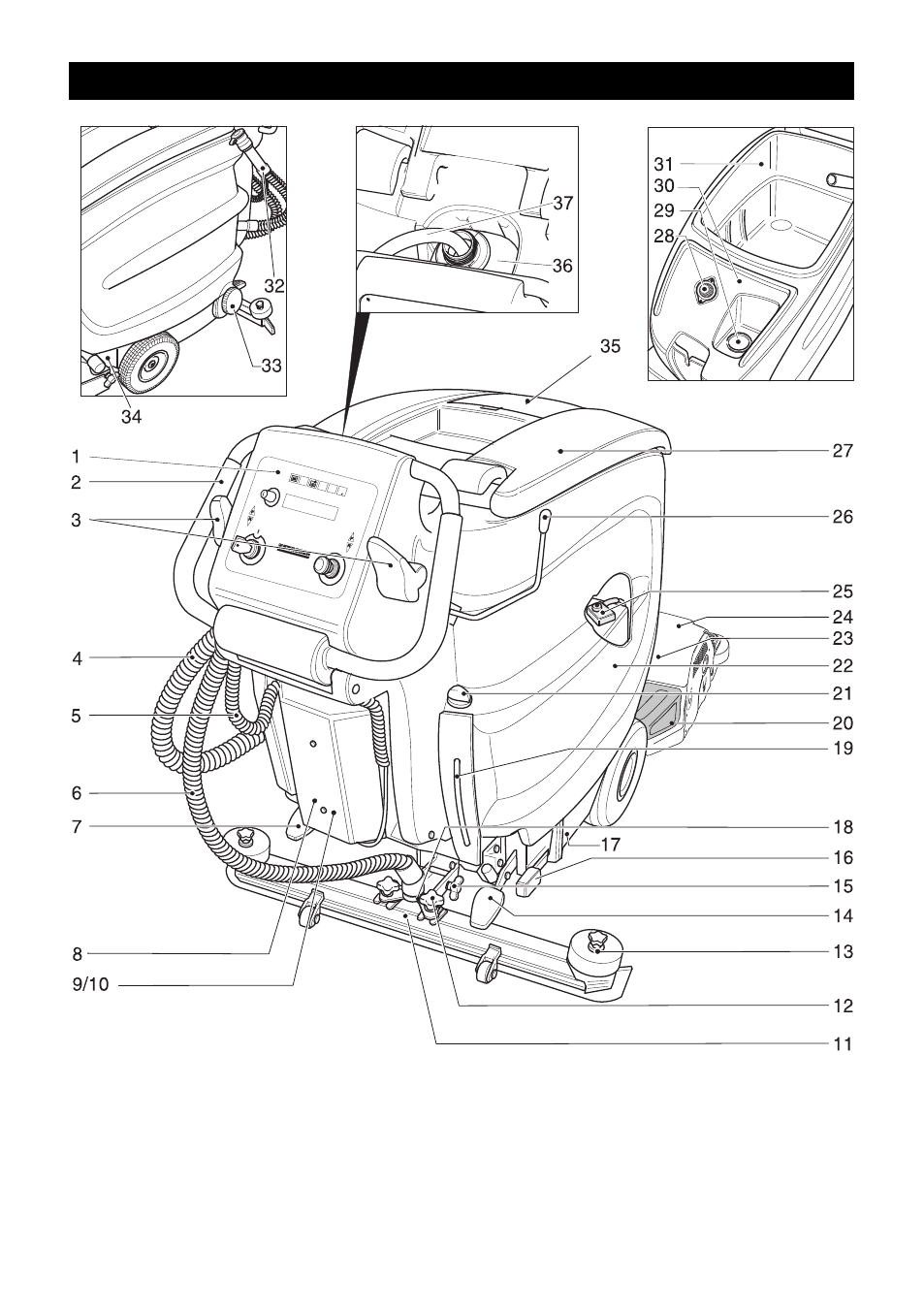

1 Operator console
2 Push handle
3 Driving lever
4 Dirt water discharge hose
5 Connecting cable for charger (only
Pack model)
6 Suction hose
7 Pedal for operating the parking brake
(Optional)
8 Charger (only Pack model)
9 Electronics and fuses
10 Screws of electronics cabinet cover
11 Vacuum bar *
Operating and Functional Elements
25
EN
