If you need further assistance, or find that you are missing any parts, please contact the dealer from which you purchased this product.
We hope you enjoy your fixture!
* Hubbardton Forge will not be liable for injury or damage caused by improper installation, lamping or use of this fixture.
H U B B A R D T O N F O R G E . C O M
hand-forged, vermont-made lighting and accessories
154 RT. 30 SOUTH • CASTLETON, VERMONT 05735
All designs and images ©1989-2014 Hubbardton Forge ® . All rights reserved.
19838 Rev C
Assembly & Installation Instructions

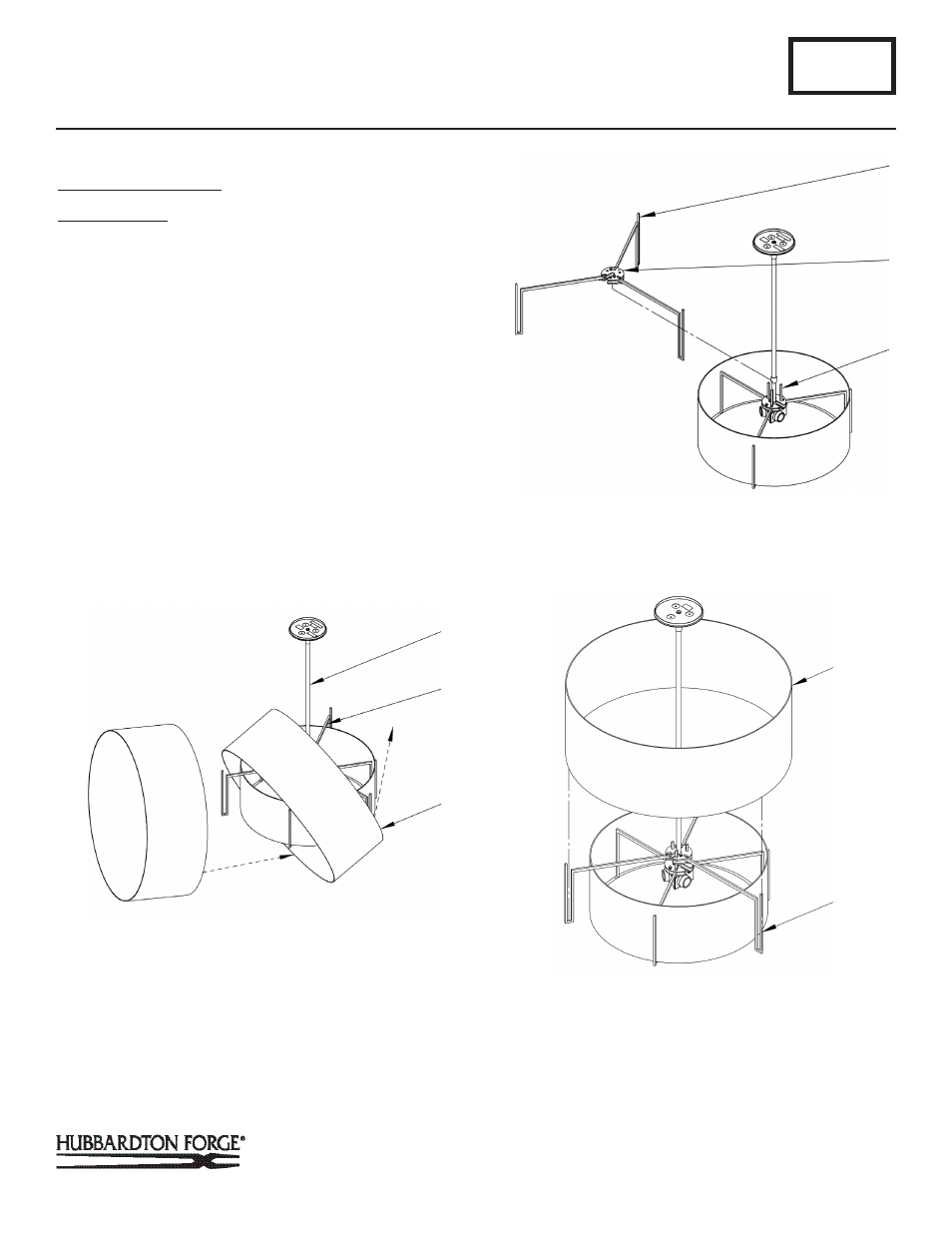

To Install Outer Shade (Figures 6, 7 & 8)
Component Parts
X Shade
Y Support Arms (3)
Z Outer Spider
AA Fixture
1. Align outer spider assembly (Z) so square openings line up
with vertical uprights on fixture (AA) (Figure 6).
2. Lower outer spider assembly (Z) onto vertical uprights until
it is resting on the fixture (AA) (Figure 6).
3. Install outer shade (X) by orienting per Figure 7 and slipping
over outer spider assembly (Z). It might be necessary to flex
the shade slightly to clear all three support arms.
4. Lower outer shade (X) until it rests in the brackets of outer
spider assembly (Z).
A113
For Adjustable Shade Pendant Model 139610 Page 4 of 4
O
(Figure 6)
P
AA
Z
Q
(Figure 7) (Figure 8)
X
X
Z
