Hubbardton Forge 217305 - Manual

Installation Instructions
B276
Ingot LED Sconce 217305D Page 1 of 1
Hand-Forged, Vermont-Made Lighting and Accessories
154 Route 30 South, Castleton, Vermont 05735 27870
Please Note: This fixture is designed to be mounted on a standard wall surface and may not be suitable for all
applications. If installing in a non-wood frame application, we recommend consulting a qualified builder or
electrician.
To Mount Fixture to Wall (Figure 1)
Component Parts
A Fixture Assembly
B Wall Mounting Bracket
C #8 Black Screw
D Green Ground Screw
E Cupped Washer
Caution: Be sure power is off at the main
breaker box prior to installation.
1. Carefully unpack the fixture from
the carton.
2. Using two machine screws (not
provided), fasten the mounting
bracket (B) to the electric box
making sure bracket is level.
Note: A new electric box comes
with screws. When replacing a
fixture, retain the existing screws for
use with the new fixture
.
3. Hold the fixture assembly (A) close
to the wall mount bracket and using
suitable wire connectors (not
provided), connect fixture wires to supply wires (white to white or ribbed and black to black or smooth).
Run a pigtail lead from the crossbar ground screw (D) and cupped washer (E) and connect all ground
wires (bare copper or green to bare copper or green).
Caution: Make sure wire connectors are twisted on securely, and no bare wires are exposed.
4. Carefully tuck all wires behind the fixture assembly (A) and inside the wall mount bracket (B). Slide
fixture assembly (A) onto mounting bracket (B) and drop down onto the stud in the bracket. When
bottom of fixture is secure on stud, fasten the top with the #8 screw (C).
5. Restore electricity at main breaker.
If you need further assistance, or find that you are missing any parts, please contact the dealer from which you
purchased this product. We hope you enjoy your fixture!
*
Hubbardton Forge will not be liable for injury or damage caused by improper installation, lamping or use of this
fixture.
CAUTION: FAILURE TO INSTALL THIS FIXTURE PROPERLY MAY RESULT IN SERIOUS
PERSONAL INJURY OR DEATH AND PROPERTY DAMAGE. We recommend installation by a
licensed electrician.
This product must be installed in accordance with applicable installation code(s), by a person familiar with the
construction and operation of the product and the hazards involved.*
Caution: Do not exceed maximum wattage noted on fixture. Use only recommended bulbs with fixture.

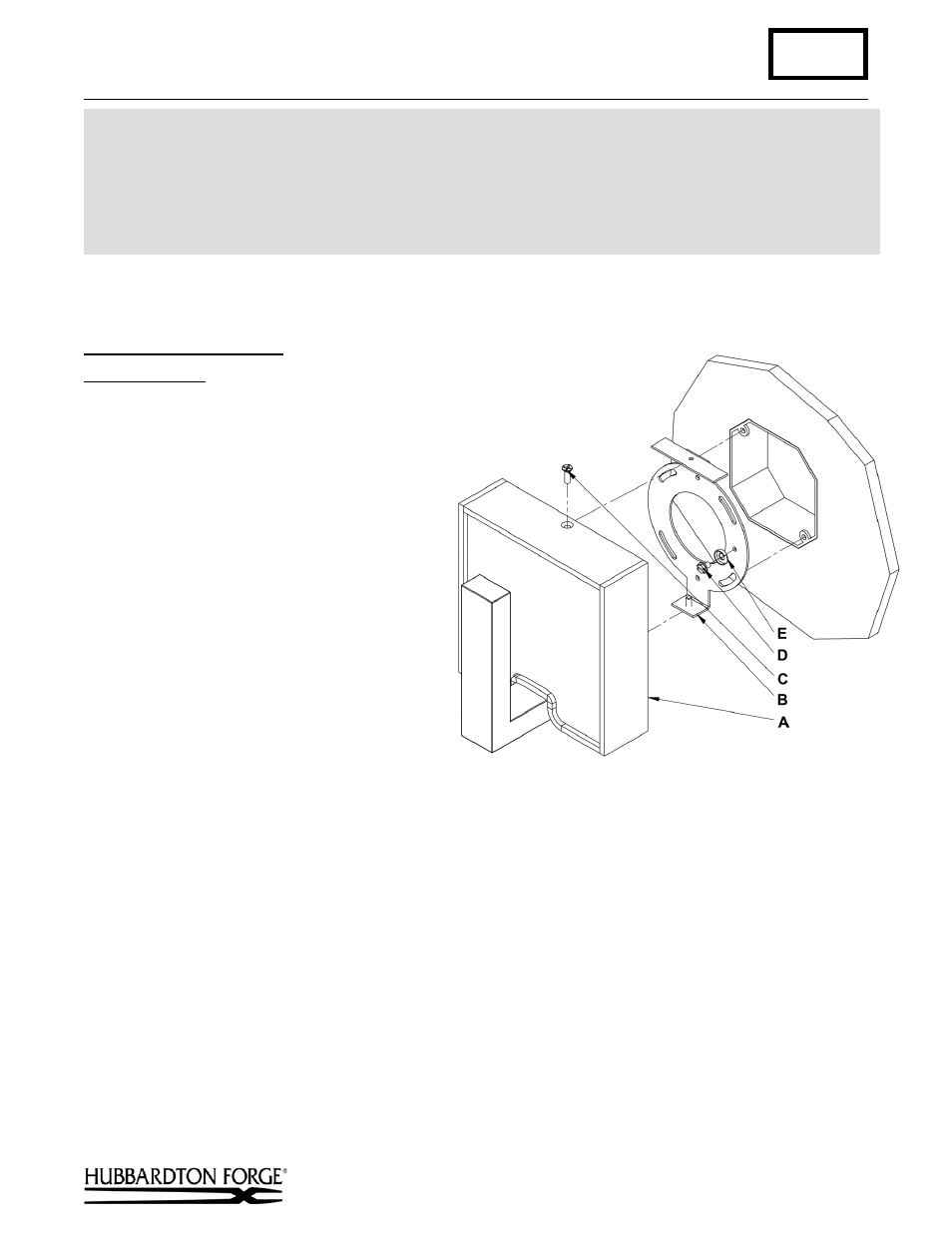

(Figure 1)
