If you need further assistance, or find that you are missing any parts, please contact the dealer from which you purchased this product.
We hope you enjoy your fixture!

* Hubbardton Forge will not be liable for injury or damage caused by improper installation, lamping or use of this fixture.

H U B B A R D T O N F O R G E . C O M

hand-forged, vermont-made lighting and accessories

154 RT. 30 SOUTH

•

CASTLETON, VERMONT 05735

19838 Rev C

Assembly & Installation Instructions

To Assemble Fixture

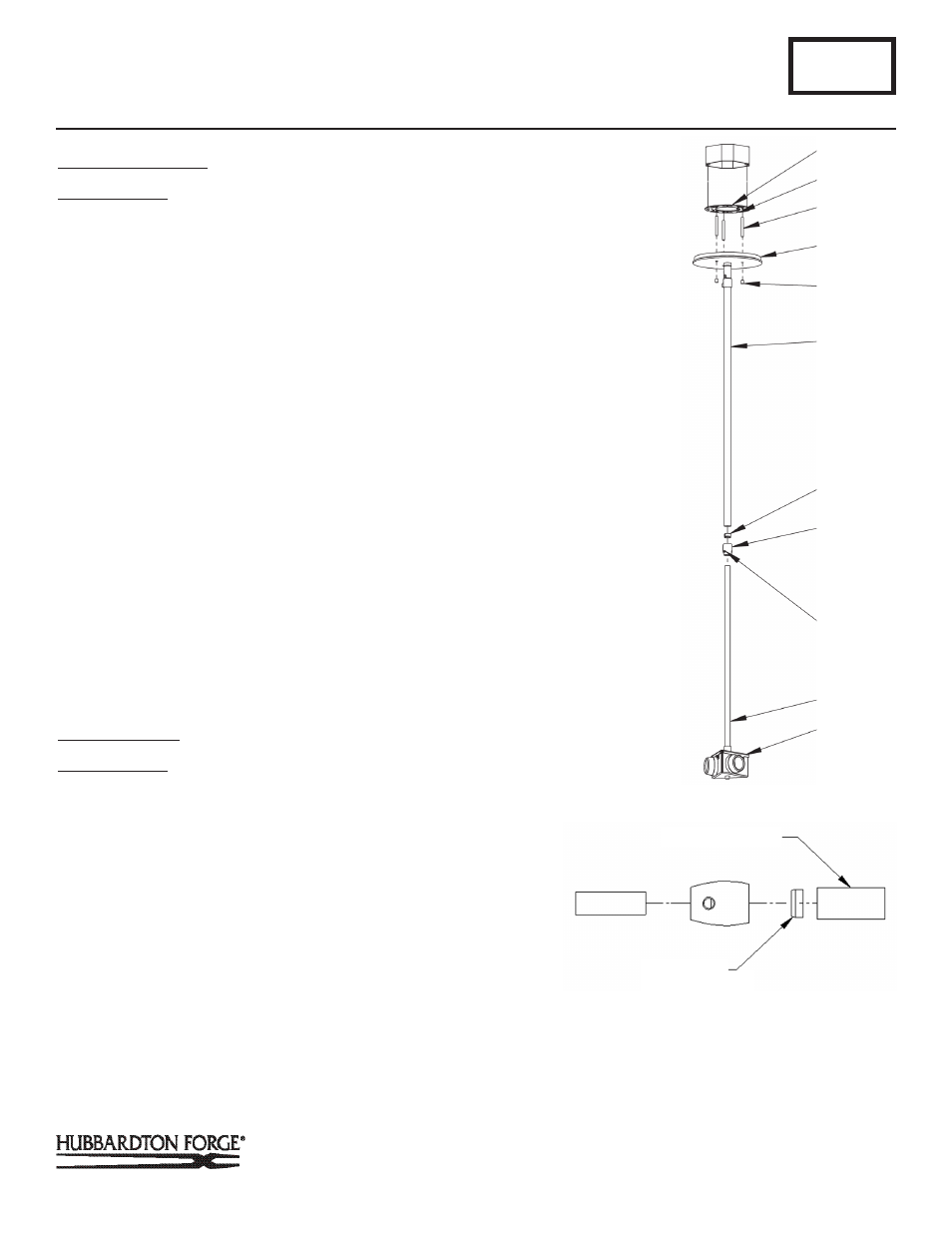

(Figures 3 & 4)

Component Parts

H Fixture Pipe

I Socket Assembly

J Set Screw (3)

K Clutch

L Clutch Sleeve

M Canopy Pipe

1. Thread the wires from the fixture pipe (H) into and through

the canopy pipe (M) and up through the canopy (O). Un-

screw the clutch (K) from the canopy pipe (M); slide it

across the wires and onto the fixture pipe (H). Follow this

with the clutch sleeve (L), so that the clutch sleeve nests

inside the clutch.

Important: To ensure full connection strength, be sure the tapered
end of the plastic clutch sleeve is oriented toward the clutch when
assembled and securely tighten set screw (Figure 4).

Slide the fixture pipe (H) as far as necessary to give you

the total length of the fixture which you desire. Be careful

not to scratch the pipe surfaces and to pull excess wire up

through the canopy (O). There must be a minimum 1-1/2"

of inner pipe inside the outer pipe. Screw clutch (K) on to

canopy pipe (M) and hand-tighten the clutch to temporarily

hold this adjustment.

At this point the clutch is not securely fastened; do not de-

pend on it to permanently hold the fixture.

To Install Fixture

Component Parts

CAUTION: BE SURE POWER IS OFF AT THE MAIN BREAKER BOX
PRIOR TO INSTALLATION.

1. Thread studs (P) through appropriate holes in the

crossbar (R) to match hole centers on canopy (O).

Using two machine screws fasten the crossbar to the

electric box using outer oval slots to orient fixture to

desired hanging position.

Note: A new electric box comes with screws. When

replacing a fixture, retain the existing screws for use

with the new fixture.

A113

For Adjustable Shade Pendant Model 139610

Page 2 of 4

Q
P

(Continued)

N Barrel Knobs (3)

O Canopy

P Threaded Studs (3)

Q Ground Screw

R Crossbar

(Figure 3)

(Figure 4)

LARGE DIAMETER PIPE

TAPPERED END OF
PLASTIC SLEEVE
