Installation Instructions

If you need further assistance, or find that you are missing any parts, please contact the dealer from which you purchased this product.
We hope you enjoy your fixture!

* Hubbardton Forge will not be liable for injury or damage caused by improper installation, lamping or use of this fixture.

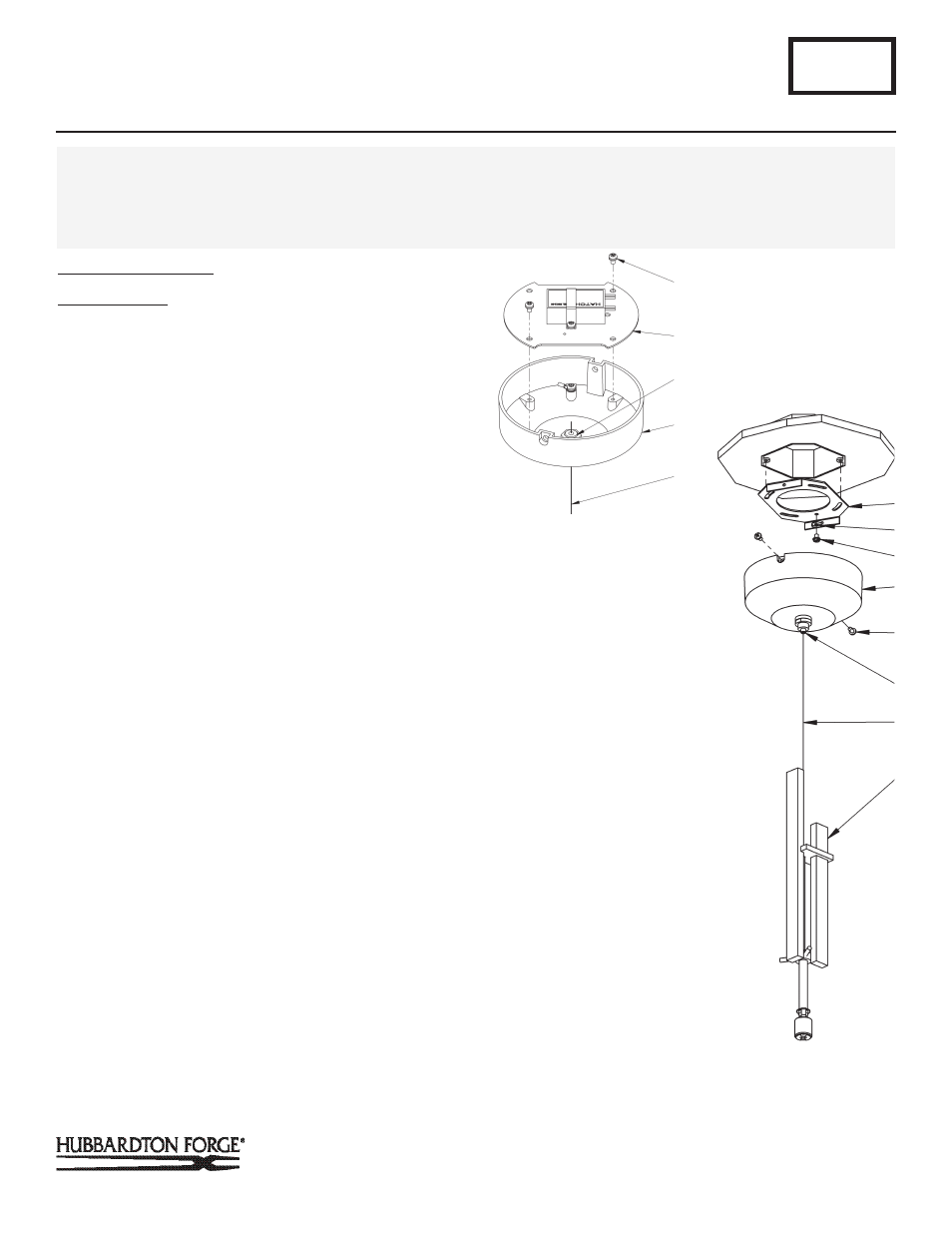

To Install the Canopy

(Figures 1 & 2)

Component Parts

A Crossbar

B Ground Screw

C Cupped Washer

D Canopy

E #8 Screws

CAUTION: BE SURE POWER IS OFF AT THE MAIN BREAKER BOX
PRIOR TO INSTALLATION.

1. Carefully unpack the fixture from the carton.

2. Using two machine screws (not provided), fasten the cross-

bar (A) to the electric box.

Note: A new electric box comes with screws. When replacing a

fixture, retain the existing screws for use with the new fixture.

3. Height of fixture can be set before attaching the fixture to

the ceiling. Remove screws w/lock washers (O) and canopy

plate (N) from canopy (D). If height is going to stay at max

length or just a slight height adjustment is needed it may not

be necessary to remove the canopy plate. Note: Fixture is

shipped at max height.

4. Push supply/support cable (H) into canopy gripper (G) until

desired height is reached.

5. Coil supply/support cable (H) in canopy (D) and place

canopy plate (N) in canopy (D). Install screws w/lock wash-

ers (O) to secure plate.

CAUTION: BE SURE NOT TO PINCH THE SUPPLY/SUPPORT CABLE IN
BETWEEN THE CANOPY (D) AND THE CANOPY PLATE (N).

6. Using suitable wire connectors (not provided) connect driver

wires to supply wires (white to white, black to black). Run a
pigtail lead from crossbar ground screw (B) to the junction
box and connect all ground wires (bare copper or green to
bare copper or green).

CAUTION: MAKE SURE WIRE CONNECTORS ARE TWISTED ON
SECURELY, AND NO BARE WIRE IS EXPOSED.

A342

Ondrian Kitchen Pendant Vintage Platinum 161105

Page 1 of 2

CAUTION: FAILURE TO INSTALL THIS FIXTURE PROPERLY MAY RESULT IN SERIOUS PERSONAL INJURY OR DEATH AND
PROPERTY DAMAGE. We recommend installation by a licensed electrician. This product must be installed in accordance with
applicable installation code(s), by a person familiar with the construction and operation of the product and the hazards involved.*

Caution: Do not exceed maximum wattage noted on fixture. Use only recommended bulbs with fixture.

(Figure 2)

C
B

(Continued)

(Figure 1)

F Fixture

G Canopy Gripper

H Supply/Support Cable

N Canopy Plate

O Screws w/ Lock Washers
