Installation Instructions
B293
Ethos Sconce 20-7760D & 20-7765D Page 1 of 2
Hand-Forged, Vermont-Made Lighting and Accessories
154 Route 30 South, Castleton, Vermont 05735 28305
Please Note: This fixture is designed to be mounted on a standard wall surface and may not be suitable for all
applications. If installing in a non-wood frame application, we recommend consulting a qualified builder or
electrician
.

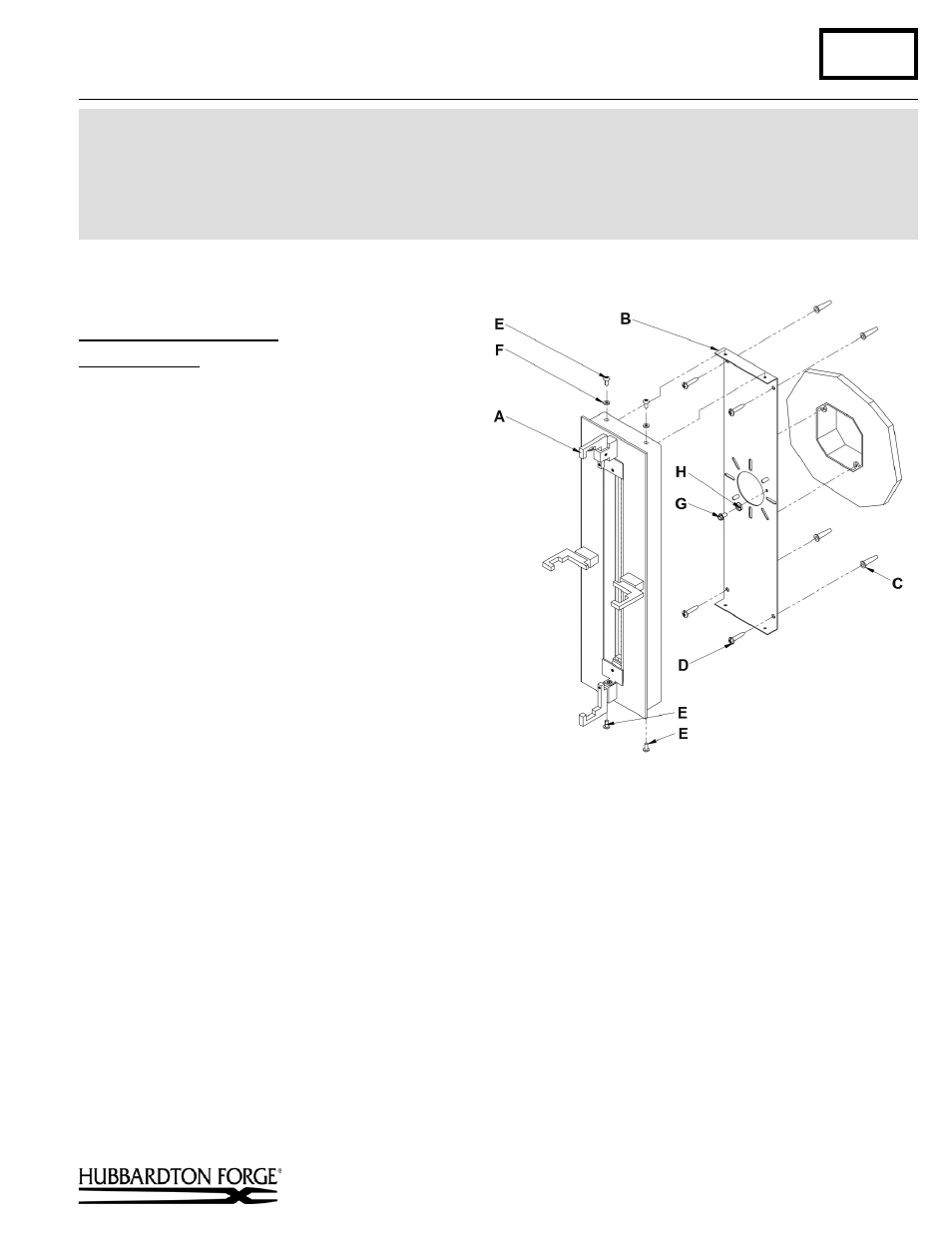

To Mount Fixture to Wall (Figure 1)
Component Parts
A Fixture Assembly
B Wall Mount Bracket
C Anchors (4)
D #10 Screws (4)
E #8 Black Screws (2)
F Rubber Washer (2)
G Green Ground Screw
H Cupped Washer
Caution: Be sure power is off at the main breaker
box prior to installation.
1. Carefully unpack the fixture from the carton.
2. Center the wall mount bracket (B) over the
electrical box being sure to hold it plum and
level. With a pencil, mark the location of all
mounting holes in the wall mount bracket on
the wall behind.
IMPORTANT: Wall mount bracket must be
secured to a solidly mounted electrical box
and/or a framing member in at least two
locations. Do not depend on drywall anchors alone to support this fixture. If in doubt, contact a qualified
electrician.
Put the wall mount bracket down and drill 1/4" holes in the locations marked on the wall. For holes using
anchors, place the tapered end of the anchors (C) into the holes and gently tap them flush to the wall using
a light weight hammer.
3. Thread the wires in the electrical box through the center hole in the wall mount bracket while moving the
bracket into position. Using two machine screws (not provided), fasten the wall mount bracket (B) to the
electric box making sure that the bracket is level. Using the #10 screws (D), screw the bracket securely to
the wall. Be careful not to over-tighten or strip the anchors.
Note: A new electrical box comes with screws. When replacing a fixture, retain the existing screws for use
with the new fixture.
4. Hold the fixture assembly (A) close to the wall mount bracket and using suitable wire connectors (not
provided), connect fixture wires to supply wires (white to white or ribbed and black to black or smooth).
Ground the mounting bracket using the green ground screw (G) and cupped washer (H) to secure a pigtail
lead to the bracket and connect all ground wires (bare copper or green to bare copper or green).
Caution: Make sure wire connectors are twisted on securely, and no bare wires are exposed.
(continued)
CAUTION: FAILURE TO INSTALL THIS FIXTURE PROPERLY MAY RESULT IN SERIOUS PERSONAL
INJURY OR DEATH AND PROPERTY DAMAGE. We recommend installation by a licensed electrician.
This product must be installed in accordance with applicable installation code(s), by a person familiar with the
construction and operation of the product and the hazards involved.*
Caution: Do not exceed maximum wattage noted on fixture. Use only recommended bulbs with fixture.
(Figure 1)
