Installation Instructions

If you need further assistance, or find that you are missing any parts, please contact the dealer from which you purchased this product.
We hope you enjoy your fixture!

* Hubbardton Forge will not be liable for injury or damage caused by improper installation, lamping or use of this fixture.

To Set Fixture Height

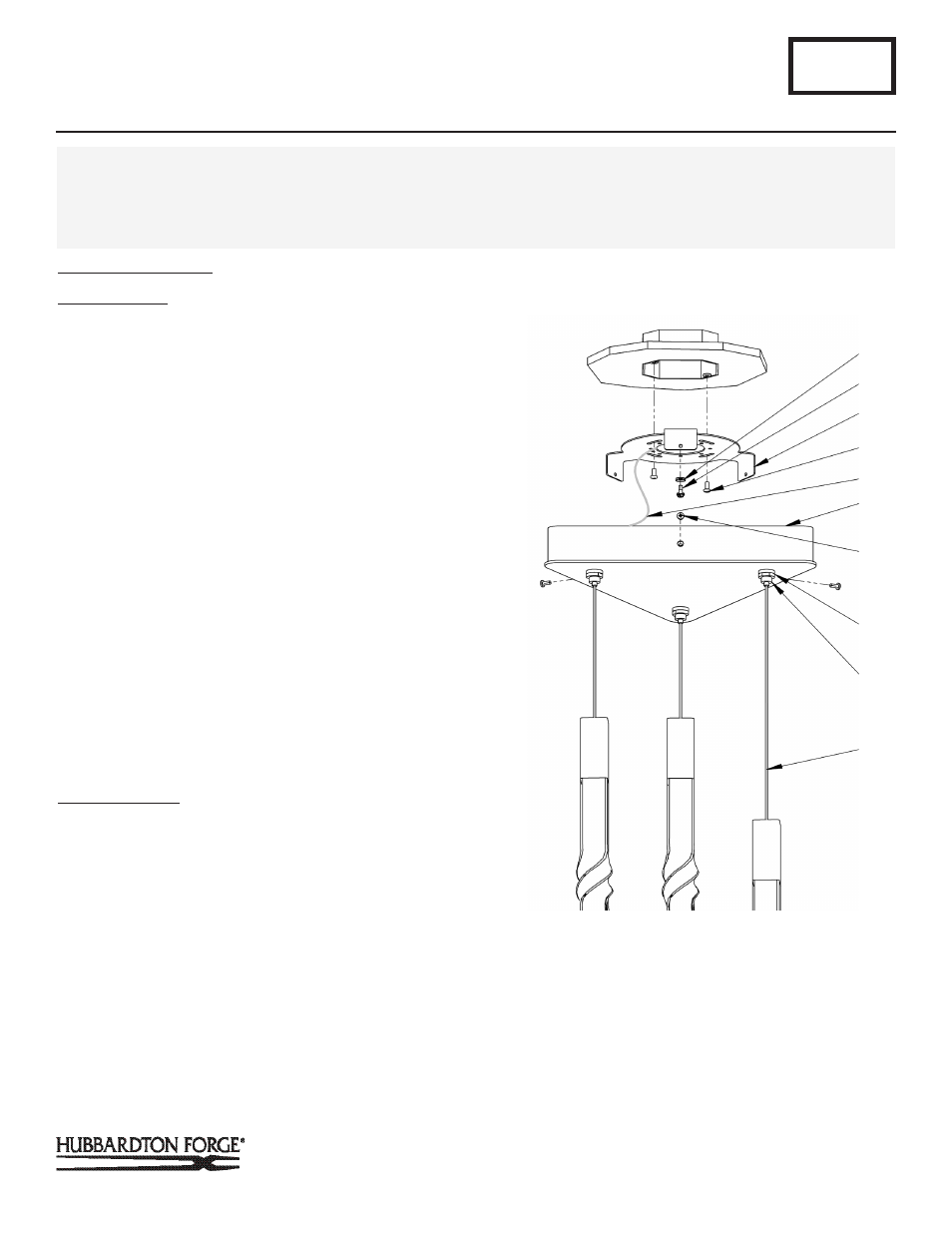

(Figure 1)

Component Parts

A Crossbar

B Ground Screw

C Cupped Washer

D Canopy

E #8 Screws

CAUTION: BE SURE POWER IS OFF AT THE MAIN BREAKER BOX

PRIOR TO INSTALLATION.

1. Carefully unpack the fixture from the carton.

2. Crossbar (A) is shipped installed in canopy (D). Remove

3 #8 screws (E) and lift move crossbar out of the way.

Retain screws for use later.

3. Height of fixture should be set prior to attaching fixture to

the ceiling.

Note: Fixture is shipped at max height.

4. Loosen safety nut on canopy gripper (G). It is not necessary

to completely remove.

5. Push supply/support cable (H) into canopy gripper (G) until

desired height is reached.

6. Retighten safety nut on canopy gripper (G). Repeat for all 3

Supply/Support Cables

To Install Fixture

(Figure 1)

7. Align ovals in crossbar (A) with mounting holes in electrical

box.

8. Using two machine screws (not provided) fasten the cross

bar (A) to the electric box.

Note: A new electric box comes with screws. When replacing an

existing fixture, retain screws for use with the new fixture.

9. Raise canopy (D) close to ceiling. Attach support cable (J)

to crossbar (A) to temporarily support fixture while wiring.

A369

Helix 3 Light Pendant 134601D

Page 1 of 2

CAUTION: FAILURE TO INSTALL THIS FIXTURE PROPERLY MAY RESULT IN SERIOUS PERSONAL INJURY OR DEATH AND
PROPERTY DAMAGE. We recommend installation by a licensed electrician. This product must be installed in accordance with
applicable installation code(s), by a person familiar with the construction and operation of the product and the hazards involved.*

Caution: Do not exceed maximum wattage noted on fixture. Use only recommended bulbs with fixture.

(Figure 1)

(Continued)

G Canopy Gripper

H Supply/Support Cable

J Canopy Support Cable

MACHINE
SCREWS

SAFETY
NUT
