Assembly & Installation Instructions

A334

Apparatus 3 light 13-8810

Page 3 of 4

Hand-Forged, Vermont-Made Lighting and Accessories

154 Route 30 South, Castleton, Vermont 05735

28308

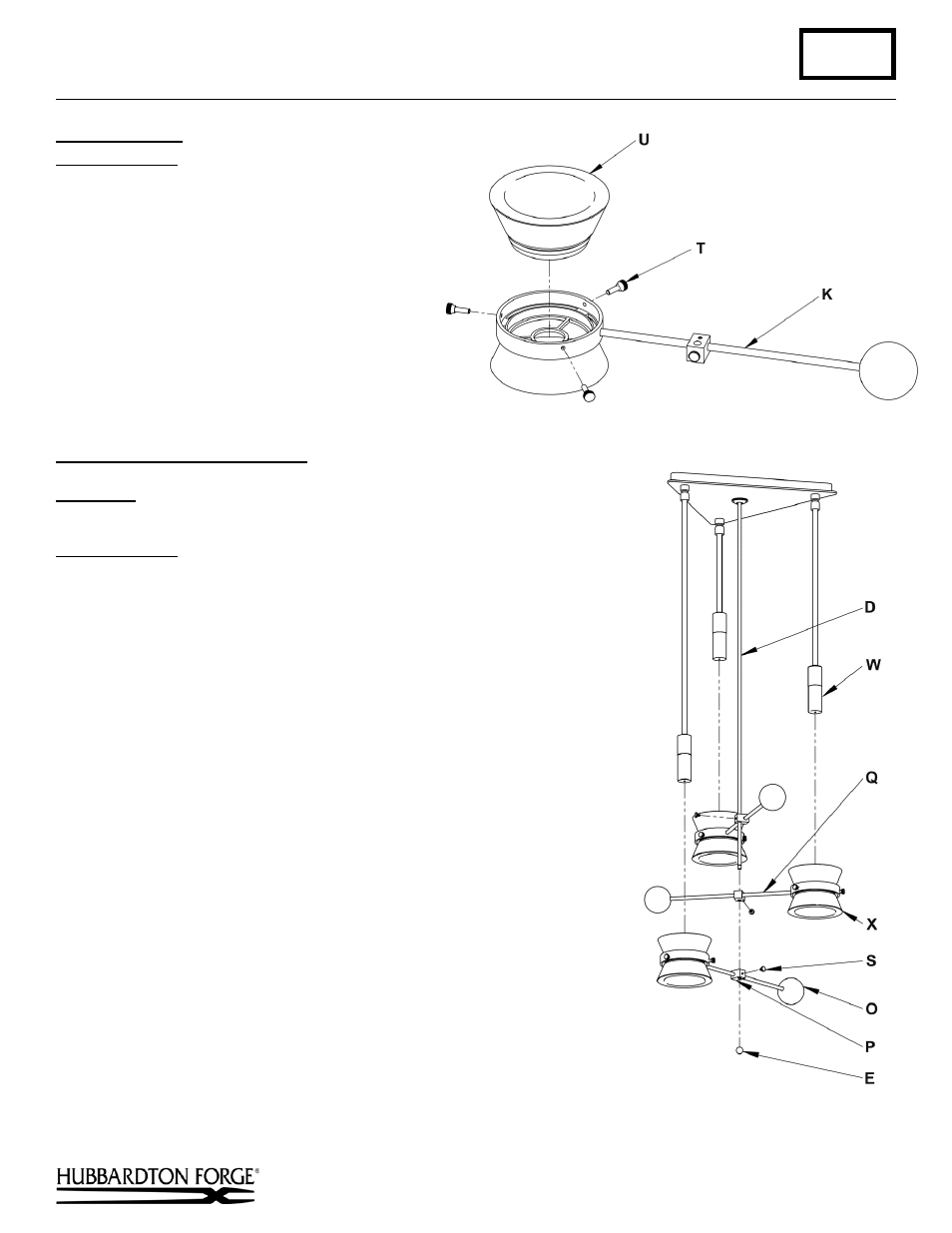

To Install Glass

(Figure 4)

Component Parts

U Glass
T Thumb Screw (3)
K Body


1.

Loosen the three thumb screws (T). It is not
necessary to remove them from the fixture.

2.

Lower glass (U) into fixture body (K) and
tighten thumb screws (T) equally, until snug
against glass.

To Complete Fixture Assembly

OPTION 1: GLASS SIDE DOWN (Figure 5)

(

For GLASS SIDE UP installation see next page)

Component Parts

D

¼” Dia Rod

E

½” Dia Ball

O

Counterweight

P

Block

Q

Body

S

Thumb Screw

W

Shield

1.

Remove ball (E) from rod (D).

Note: The fixture body (Q) is factory shipped ready installation with
glass side down. To reverse fixture and install with glass side up,
see To Complete Fixture Assembly – GLASS SIDE UP (Figure 6)
next page.

2.

Loosen Thumb screw (S) from block (P). Orient fixture body (Q)
with glass side down, slide fixture body (Q) up on to rod (D),
slipping the fixture body (Q) over the shield (W). Adjust to desired
height and tighten thumb screw (S).

3.

Repeat step 2 for other two fixture bodies (Q)

4.

Reattach ball (E) onto the rod (D)

5.

Restore electricity at main breaker.

(continued)

(Figure 5)
