Assembly & Installation Instructions
A334
Apparatus 3 light 13-8810 Page 2 of 4
Hand-Forged, Vermont-Made Lighting and Accessories
154 Route 30 South, Castleton, Vermont 05735 28308
To Install Canopy (Figure 3)
Component Parts
A Mounting Bracket
D ¼” Dia Rod
H Canopy
J
Support Cable
K #8 Screw
L
Cupped Washer
M Green Ground Screw
N Threaded Ring
V Bulb
W Shield
1.
Slide center hole in canopy (H) over ¼”dia rod (D).
Raise canopy (H) close to ceiling. Attach canopy
support cable (J) to mounting bracket(A) using a #8
screw (K). Temporarily suspend canopy using cable
(Figure 3).
Caution: The cable is intended to
temporarily suspend the canopy to help with fixture
installation. Never depend on them to support fixtures
with glass installed.
2. Using suitable wire connectors (not provided) connect
fixture wires to supply (white to white and black to
black). Using cupped washer (L) and green ground
screw (M) run pigtail from mounting bracket (A) to
junction box. Connect all ground wires (bare copper or
green to bare copper or green). Push wires back into
outlet box.
Caution: Make sure wire connectors are twisted on
securely, and no bare wire is exposed.
3. Raise canopy (H) to ceiling, push firmly to ceiling
making sure no wires are pinched between fixture
canopy (H) and ceiling. Secure canopy (H) to mounting
bracket (A) using threaded ring (N).
4. Install bulbs (V). Be careful not to touch bulb with bare
hands; oil from the hands will dramatically reduce bulb
life.
5. Screw shields (W) on to sockets. Do not over tighten.
(continued)

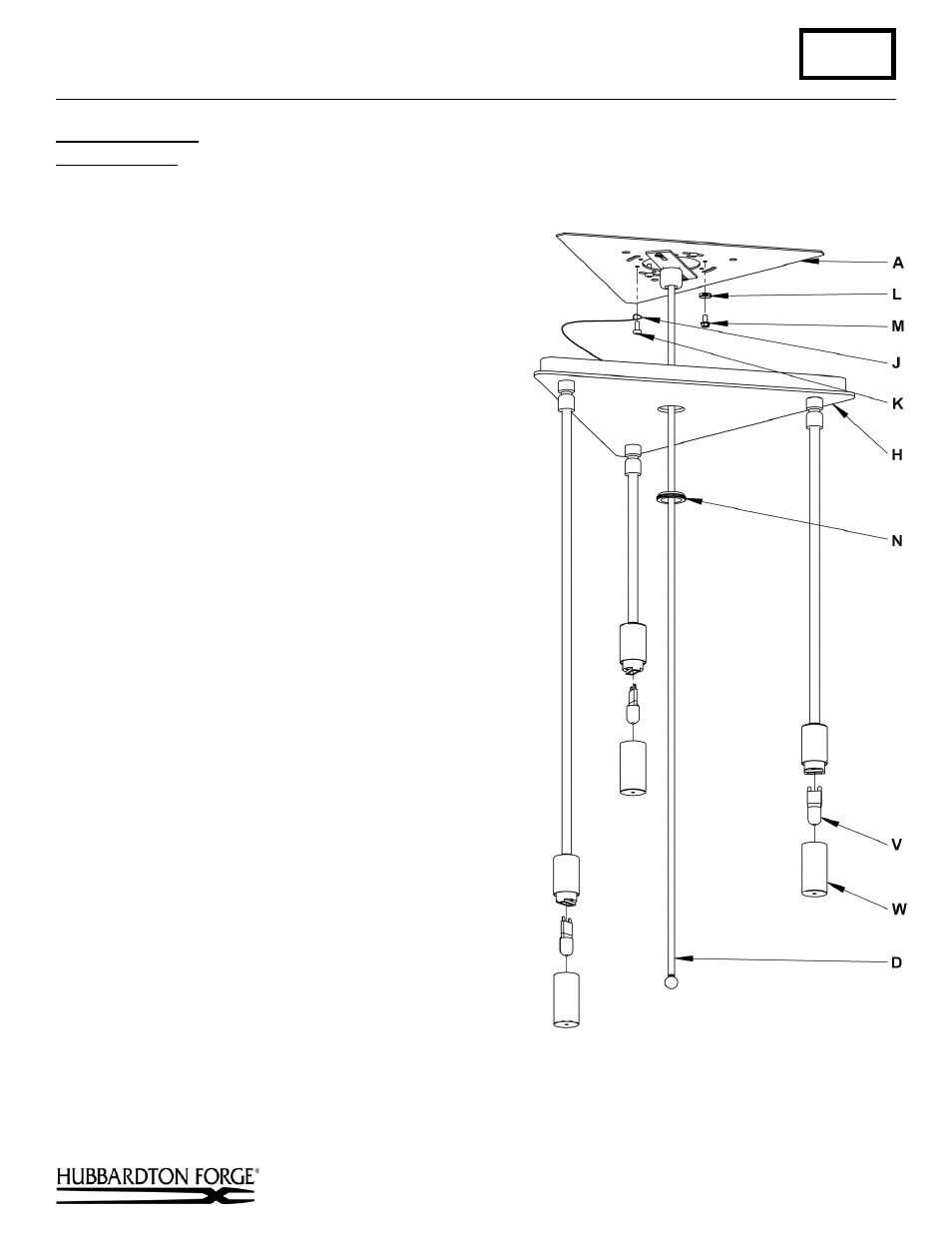

(Figure 3)
