Assembly & Installation Instructions
A334
Apparatus 3 light 13-8810 Page 1 of 4
Hand-Forged, Vermont-Made Lighting and Accessories
154 Route 30 South, Castleton, Vermont 05735 28308

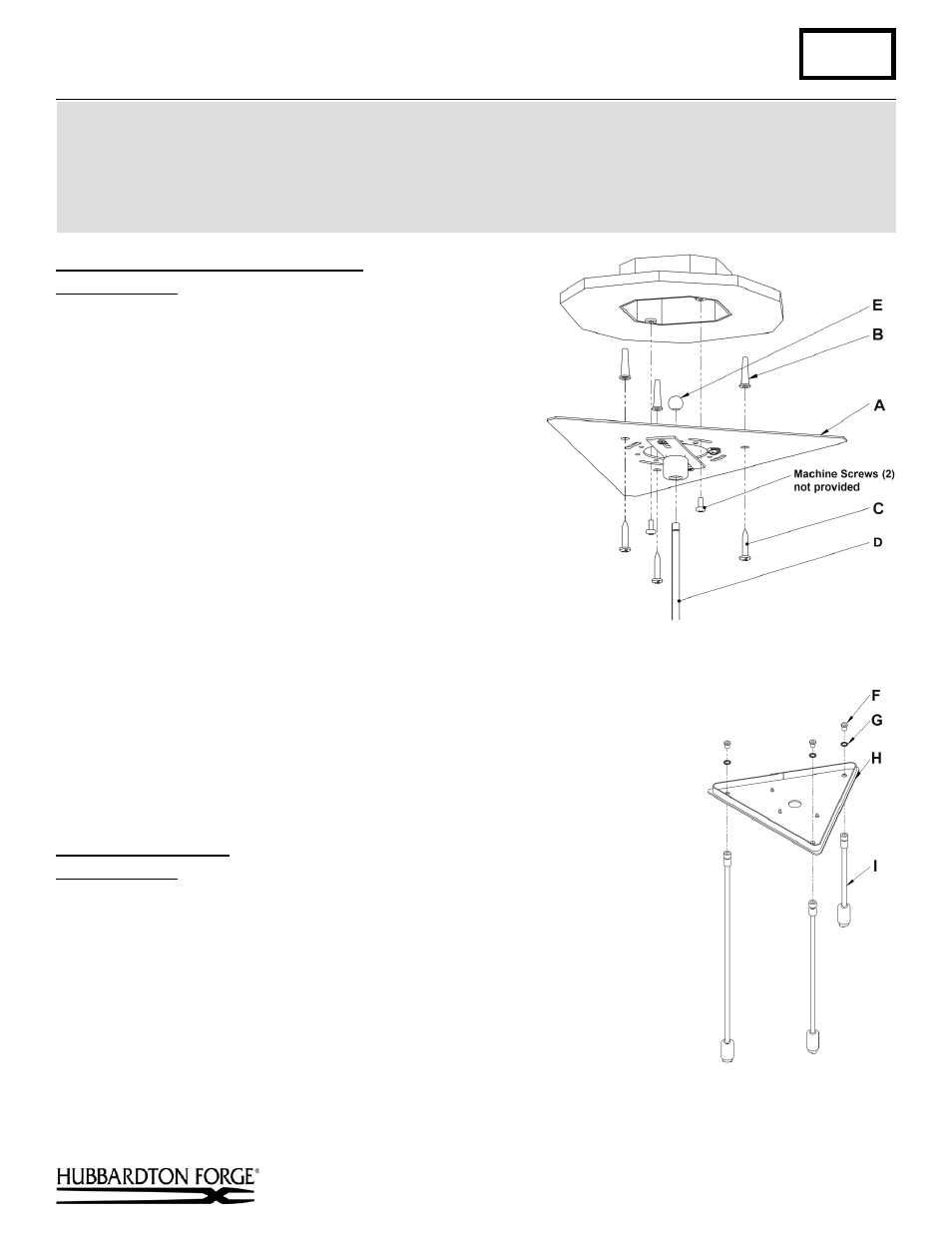

To Install Mounting Bracket to Ceiling (Figure 1)
Component Parts
A Mounting Bracket
B Anchor (3)
C #10 Screw (3)
D ¼” diameter Rod
E ½” diameter Ball
1. Carefully unpack fixture and canopy from carton.
2. Position the mounting bracket (A) over the electrical box
aligning ovals in bracket with mounting holes in electrical
box. Orient fixture to desired hanging position and mark
the location of the anchors (B) on the ceiling. Set the
mounting bracket aside.
3. Drill 1/8” holes in the location marked on the ceiling.
Place the tapered ends of the anchors (B) into the holes and
gently tap flush using a lightweight hammer.
4. Remove ball (E) from one end of ¼”dia rod (D). Slip rod
(D) up through center coupling in mounting bracket (A) and
reattach ball (E).
5. Place mounting bracket (A) over electrical box. Using two machine
screws (not provided) fasten the mounting bracket (A) to the electric
box. Thread the #10 screws (C) through the bracket and into the
anchors (C) to secure the bracket to the ceiling. Be careful not to over
tighten or strip the anchors.
Note: A new electric box comes with screws. When replacing an
existing fixture, retain screws for use with the new fixture.
To Assemble Canopy (Figure 2)
Component Parts
F Hex Nipple (3)
G Lock Washer (3)
H Canopy
I
Canopy Pipe (3)
1. Thread socket wires through canopy.
2. Line up end of canopy pipe (I) with hole in canopy (H).
3. Slip lock washer and hex nipple onto wires
4. Place hex nipple (F) through lock washer (G), down through holes in
canopy and thread into canopy pipe. Tighten securely.
5. Repeat steps 2 and 3 for the remaining pipes.
(continued)
CAUTION: FAILURE TO INSTALL THIS FIXTURE PROPERLY MAY RESULT IN SERIOUS PERSONAL
INJURY OR DEATH AND PROPERTY DAMAGE. We recommend installation by a licensed electrician.
This product must be installed in accordance with applicable installation code(s), by a person familiar with the
construction and operation of the product and the hazards involved.*
Caution: Do not exceed maximum wattage noted on fixture. Use only recommended bulbs with fixture.
(Figure 1)
(Figure 2)
