Assembly & Installation Instructions
A178
Ellipse Circular Adjustable Pendant 13-7530
Page 2 of 4
Hand-Forged,
Vermont-Made Lighting and Accessories
P.O. Box 827, 154 Route 30 South, Castleton, Vermont 05735
21364 Rev A

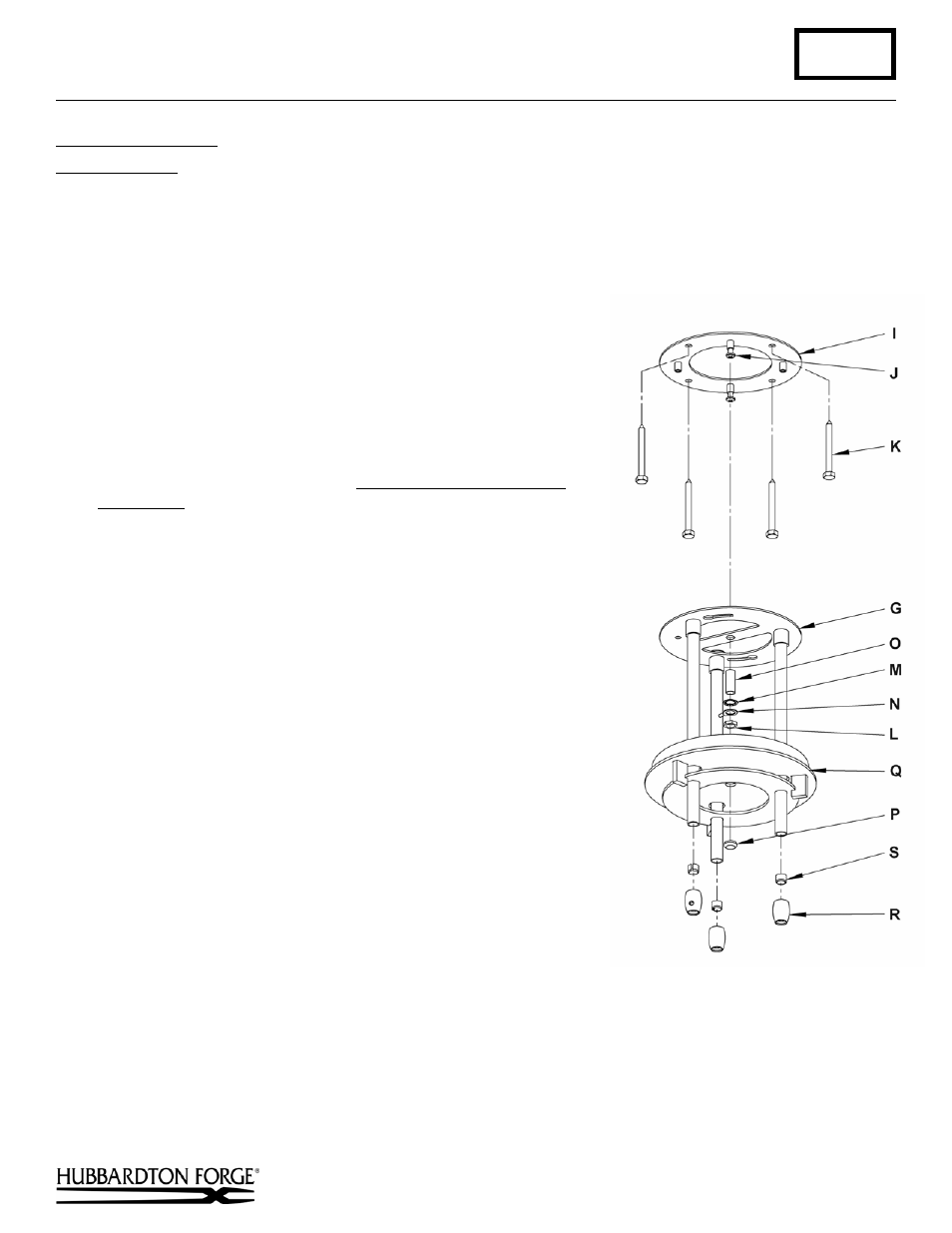

Prepare the Canopy
(Figure 3)
Component Parts
C Cable
Gripper
G Support
Ring
H Canopy
Pipe
I Crossbar
J 10-32
Screw
(4)
K Lag Screw (4)
L Jam
Nut
M Lock
Washer
N Ground
Wire
O Threaded
Nipple
P Threaded
Button
Q Canopy
R Clutch
Caution: Be sure power is off at the main breaker box prior to
installation.
1. Using four lag screws (K) attach crossbar (I) to a structural member
in the ceiling, centering the crossbar over the outlet box. We've
supplied lag screws with your fixture; however, different materials
and/or construction methods may require different fasteners. If in
doubt, contact a qualified electrician. Do not attach crossbar directly
to outlet box.
2. Thread jam nut (L), ground wire (N) and lock washer (M) onto
threaded nipple (O); leave parts loose. Thread into center hole of
support ring (G).
3. Install two 10-32 screws (J) into crossbar (I). Thread in only a
couple of threads.
4. Remove three clutches (R) & plastic clutch sleeves (S). Set aside for
later use.
5. Raise support ring (G) with three canopy pipes (H) installed up to
crossbar (I) aligning keyed slots with the two screws installed in the
crossbar.
6. Turn support ring (G) until it stops.
7. Temporally tighten two 10-32 screws (J).
8. Slip canopy (Q) up the three canopy pipes (H) until it rests against
the ceiling.
9. Adjust threaded nipple (O) in the center of the crossbar (I) until it
protrudes approximately 1/8” below the canopy (Q).
10. When the correct adjustment is established, tighten jam nut (L)
against crossbar (I) to hold the adjustment.
11. Remove the canopy (Q) and support ring (G) from the crossbar (I) by
loosening the two 10-32 screws (J).
(continued)
(Figure 3)
