Assembly & Installation Instructions
A178
Ellipse Circular Adjustable Pendant 13-7530 Page 1 of 4
Hand-Forged, Vermont-Made Lighting and Accessories
P.O. Box 827, 154 Route 30 South, Castleton, Vermont 05735 21364 Rev A

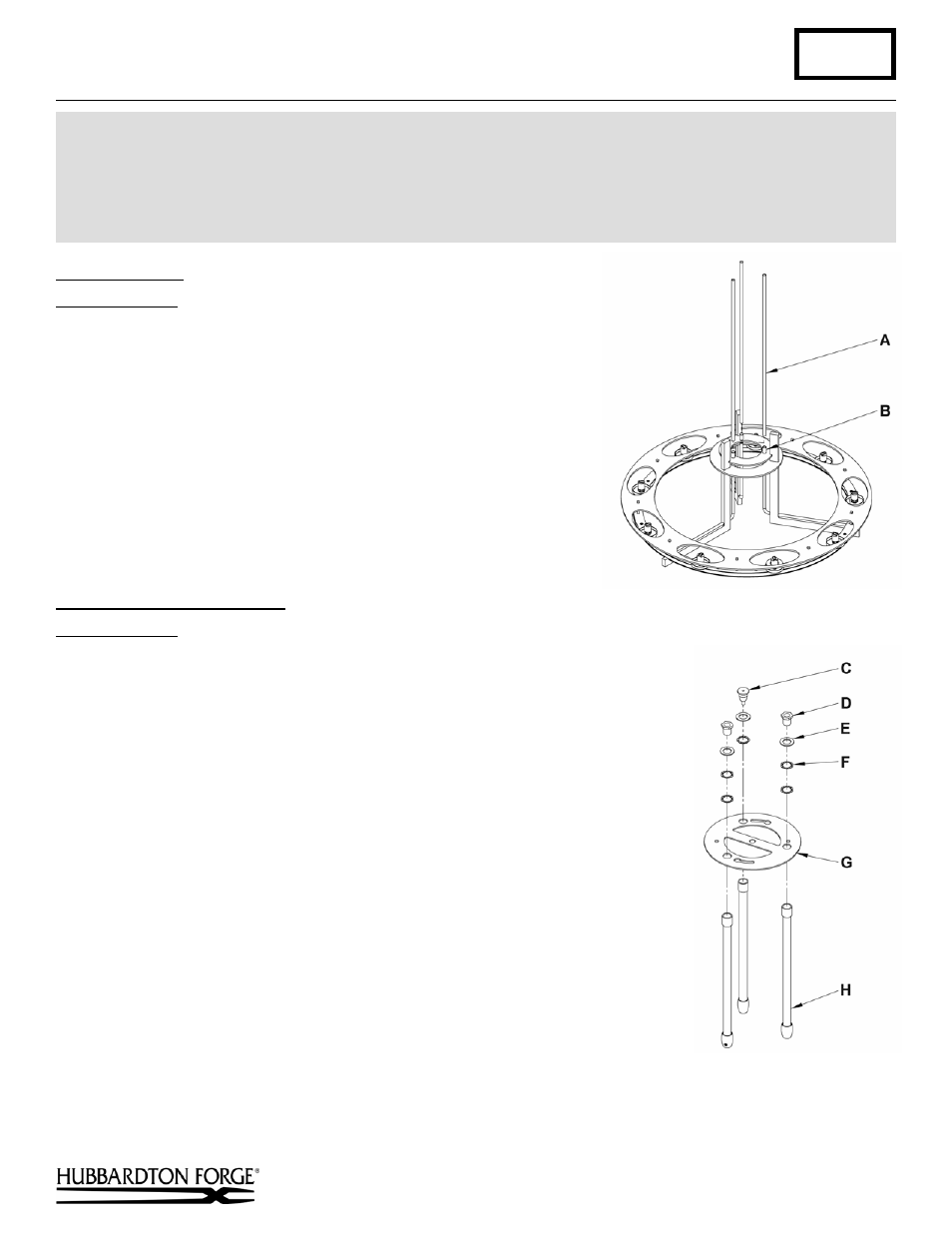

Stem Assembly (Figure 1)
Component Parts
A Fixture Pipe (3)
B Fixture Coupling (3)
1. Carefully unpack the fixture from the carton.
2. Carefully thread fixture pipe (A), threaded end first, over fixture wires.
3. Apply a drop of the supplied thread locking compound to the internal
threads of fixture coupling (B) and screw stem into fixture, being
careful not to twist or pinch the wires.
Note: Application of the thread locking compound is necessary to
prevent the stem from loosening during regular maintenance and
cleaning of the fixture. Be certain to apply the compound.
4. See instructions below to complete the installation.
Assemble the Canopy Pipes (Figure 2)
Component Parts
C Cable Gripper
D Hex Nipple (2)
E Flat Washer (3)
F Lock
Washer (5)
G Support Ring
H Canopy Pipe
1. Apply a drop of the supplied thread locking compound to the external threads of
hex nipple (D). Slip flat washer (E) and two lock washers (F) over hex nipple
(D). Slip hex nipple (D) through support ring (G) and thread into canopy pipe
(H). Do this twice.
Note: Application of the thread locking compound is necessary to prevent the
stem from loosening during regular maintenance and cleaning of the fixture. Be
certain to apply the compound.
2. Slip flat washer (E) and lock washer (F) over cable gripper (C). Slip cable
gripper (C) through support ring (G) and thread into canopy pipe (H). Do not
apply thread lock to cable gripper at this point.
(continued)
(Figure 1)
CAUTION: FAILURE TO INSTALL THIS FIXTURE PROPERLY MAY RESULT IN SERIOUS PERSONAL
INJURY OR DEATH AND PROPERTY DAMAGE. We recommend installation by a licensed electrician.
This product must be installed in accordance with applicable installation code(s), by a person familiar with the
construction and operation of the product and the hazards involved.*
Caution: Do not exceed maximum wattage noted on fixture. Use only recommended bulbs with fixture.
(Figure 2)
