Assembly & Installation Instructions
A230
For Wren Five Light Pendant 13-6605
Page 3 of 4
Hand-Forged,
Vermont-Made Lighting and Accessories
P.O. Box 827, 154 Route 30 South, Castleton, Vermont 05735
24158 Rev A
To Install to Ceiling
(Figure 5)
Component Parts
E Ceiling
Bracket
G Canopy
J Set Screw (2)
K Crossbar
L Stud
(2)
M Lag Screw (4)
N Threaded Stud (2)
O Hex Nut (2)
P Barrel Knob (2)
1. Thread studs (N) through appropriate holes in
crossbar (K) to match holes in canopy (G).
2.
Using two machine screws (not provided) fasten
cross bar (K) to the electric box using tab holes to
orient fixture to desired hanging position.
Note: A
new electric box comes with screws. When
replacing an existing fixture, retain the screws for
use with the new fixture.
Alternate Mounting Option - Using four lag screws
(M) attach crossbar (K) to a structural member in
the ceiling, centering the crossbar over the outlet
box. We've supplied lag screws with your fixture;
however, different materials and/or construction
methods may require different fasteners. If in doubt,
contact a qualified electrician.
3. Raise fixture to ceiling aligning studs in crossbar
(K) with holes in ceiling bracket (E).
4. Thread hex nut (O) onto studs (L) and tighten.
5. Using suitable wire connectors (not provided)
connect fixture wires to supply (white to white and
black to black, and bare copper to bare copper or
green supply). Push wires back into outlet box.
Caution:
Make sure wire connectors are twisted on
securely, and no bare wire is exposed.
6. Raise canopy (G) to ceiling over threaded studs (N)
and push firmly to ceiling, making sure that no wires
are pinched between canopy and ceiling. Fasten with
barrel knob (P).
Note: Be sure both swivel notches are aligned in the same direction. For sloped ceilings the notches should face
towards the down side.
7. Once the fixture is fastened to the ceiling, tighten the set screw (J) firmly with hex wrench provided. Only after the
set screw (J) is tight should you install the glass.
8. Refer to instructions below to install glass.
(continued)

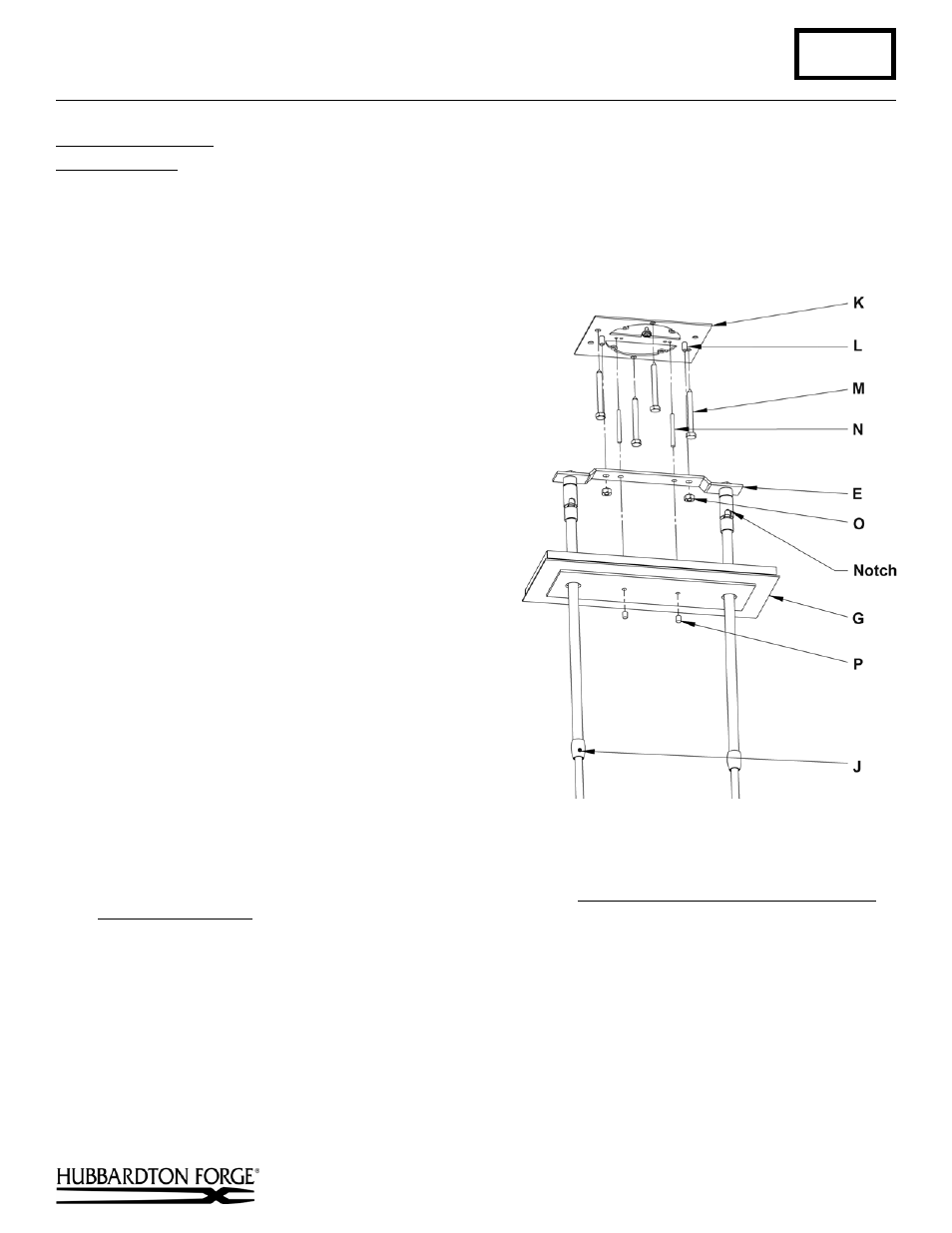

(Figure 5)
