Assembly & Installation Instructions
A230
For Wren Five Light Pendant 13-6605 Page 2 of 4
Hand-Forged, Vermont-Made Lighting and Accessories
P.O. Box 827, 154 Route 30 South, Castleton, Vermont 05735 24158 Rev A

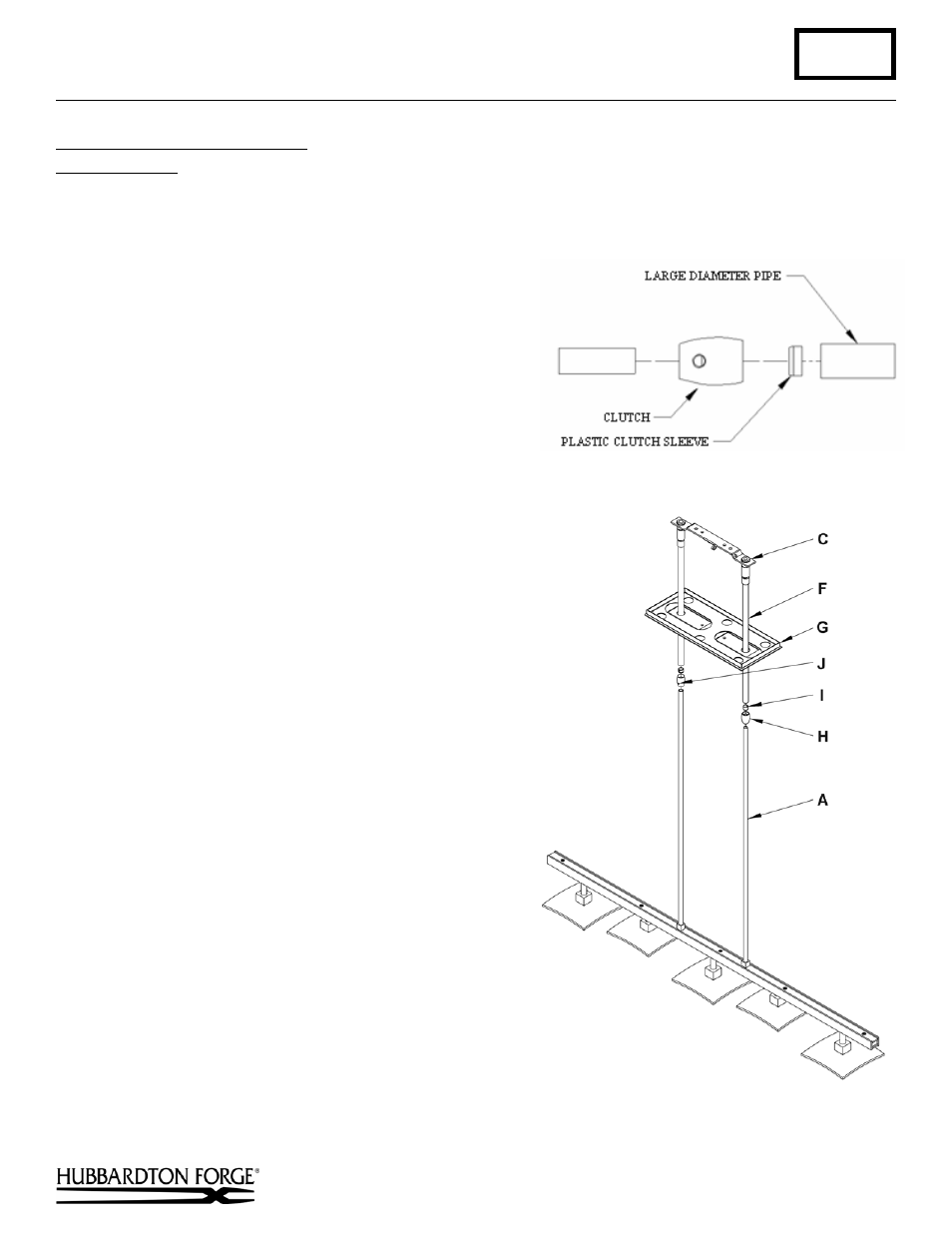

To Complete Fixture Assembly (Figures 3 & 4)
Component Parts
A Fixture Pipe (2)
C Hex Nipple (2)
F Canopy Pipe (2)
G Canopy H Clutch (2)
I
Plastic Clutch Sleeve (2)
J Set Screw (2)
Caution: Be sure power is off at the main breaker box
prior to installation.
1. Slip canopy (G) over fixture pipes (A). Lower until
canopy (G) is resting on top of fixture. Be careful not to
scratch the pipe surfaces.
2. Run wires through canopy pipes (F) and out hex
nipples (C).
3. Unscrew the clutch (H) from the canopy pipe (F); slide it
across the wires and onto the fixture pipe (A). Follow this
with the plastic clutch sleeve (I), oriented so the tapered
end of the clutch sleeve nests in the clutch (Figure 3).
4. Slide the canopy pipe (F) as far as necessary to give you
the total length of the fixture which you desire. Be
careful not to scratch the pipe surfaces and to pull
excess wire up through the canopy pipe (F). Screw
clutch (H) onto canopy pipe (F). There must be a
minimum 1-1/2" of inner pipe inside the outer pipe.
Hand-tighten the clutch to temporarily hold this
adjustment. The clutch is not securely fastened at this
point; do not depend on it to hold the fixture.
Important: To ensure full connection strength, be sure
the tapered end of the plastic clutch sleeve is oriented
toward the clutch when assembled and securely tighten
set screw (Figure 3).
5. Continue with Ceiling Installation.
(continued)
(Figure 3)
(Figure 4)
