A230, Assembly & installation instructions

Assembly & Installation Instructions
A230
For Wren Five Light Pendant 13-6605
Page 1 of 4
Hand-Forged,
Vermont-Made Lighting and Accessories
P.O. Box 827, 154 Route 30 South, Castleton, Vermont 05735
24158 Rev A
To Attach Fixture Pipes

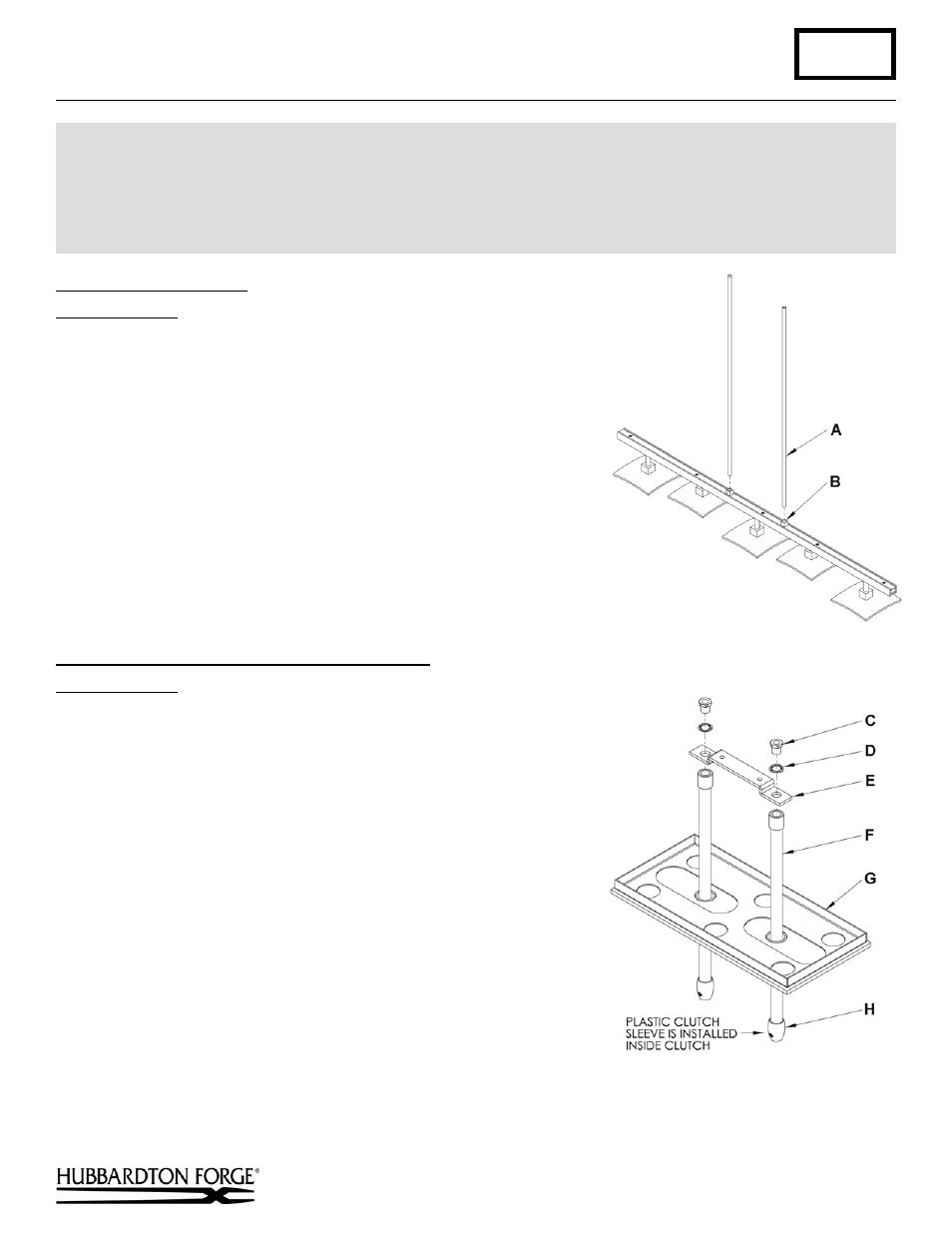

(Figure 1)
Component Parts
A Fixture Pipe (2)
B Fixture Coupling (2)
1. Carefully unpack the fixture from the carton.
2. Carefully thread fixture pipe (A), threaded end first, over fixture
wires.
3. Apply a drop of the supplied thread locking compound to the
internal threads at the top of the fixture (B) and screw stem into
fixture, being careful not to twist the wires.
Note: Application of the thread locking compound is necessary
to prevent the stem from loosening during regular maintenance
and cleaning of the fixture. Be certain to apply the compound.
4. See instructions below to complete the installation.
To Assemble Canopy Pipes to Ceiling Bracket
(Figure 2)
Component Parts
C Hex Nipple (2)
D Lock
Washer
(2)
E Ceiling
Bracket
F Canopy Pipes (2)
G Canopy
H Clutch
1. Slip canopy pipes (F) through canopy (G).
2. Insert threaded end of hex nipple (C) down through lock
washer (D), ceiling bracket (E) and into threaded end of
canopy pipe (F) and tighten.
(continued)
CAUTION: FAILURE TO INSTALL THIS FIXTURE PROPERLY MAY RESULT IN SERIOUS PERSONAL
INJURY OR DEATH AND PROPERTY DAMAGE. We recommend installation by a licensed electrician.
This product must be installed in accordance with applicable installation code(s), by a person familiar with the
construction and operation of the product and the hazards involved.*
Caution: Do not exceed maximum wattage noted on fixture. Use only recommended bulbs with fixture.
