Assembly & Installation Instructions
A235
For Axis Pendant 13-6403 & 13-6403F Page 3 of 4
Hand-Forged, Vermont-Made Lighting and Accessories
P.O. Box 827, 154 Route 30 South, Castleton, Vermont 05735 24159

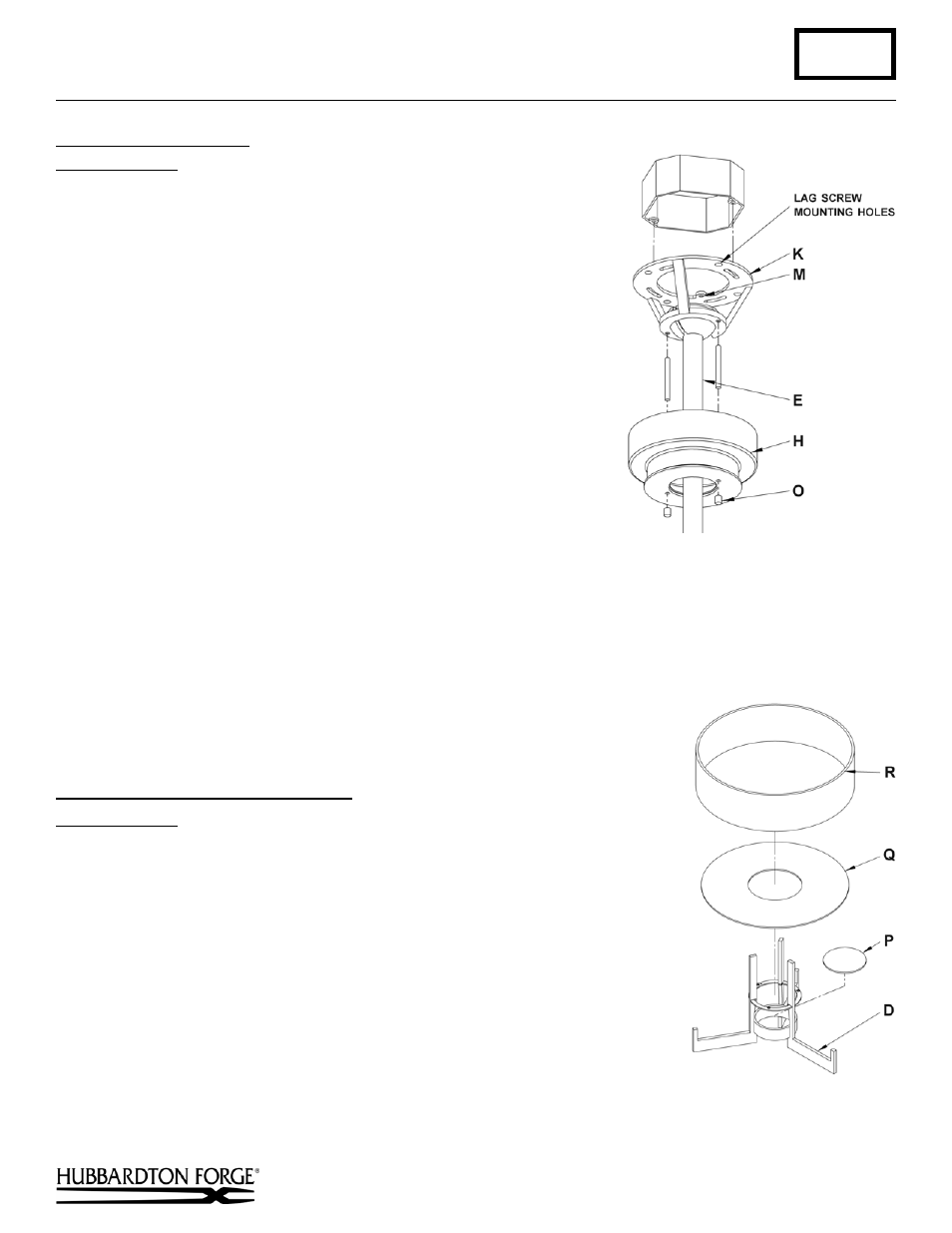

Install Fixture to Ceiling
(Figure 4)
Component Parts
E Canopy Pipe Assembly
H Canopy
L Crossbar
M Ground
Screw
N Threaded Studs (2)
O Barrel Knobs (2)
1. Using two machine screws (not provided), fasten the crossbar (L) to
the electric box using oval slots to orient fixture to desired hanging
position. We've supplied lag screws with your fixture; however,
different materials and/or construction methods may require
different fasteners. If in doubt, contact a qualified electrician.
Note: A new electric box comes with screws. When replacing a
fixture, retain the existing screws for use with the new fixture.
2. Thread studs (N) through appropriate holes in the crossbar (L) to
match hole centers on canopy (H).
3. Using suitable wire connectors (not provided) connect fixture wires
to supply (white to white or ribbed and black to black or smooth).
4. Lift canopy (H) and connect all ground wires to green ground
screw (M).
5. Slide canopy (H) over threaded studs (N) and push firmly to ceiling, making sure that no wires are pinched between
fixture canopy and ceiling. Fasten with barrel knobs (O). Be sure studs are fully seated in the barrel knobs.
6. Refer instructions following to install bulb and glass.
To Install Glass in Bottom Assembly (Figure 5)
Component Parts
D Lower Assembly
P Center Diffuser
Q Bottom Diffuser
R Outer Glass
1. Install center diffuser (P) so it sits in the center of the lower assembly (D).
2. Install bottom diffuser (Q) and outer glass (R) into lower assembly (D).
(continued)
(Figure 4)
(Figure 5)
